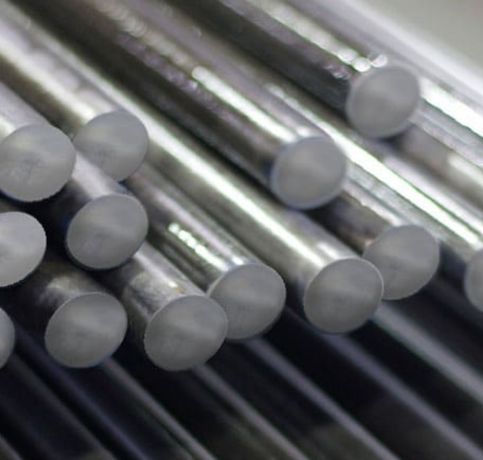

Chuck Metals is a trusted name in the manufacturing and supply of Alloy Steel Round Bars right here in Singapore. We’re proud to offer top-notch alloy solutions to industries across Pulau Ujong and the wider Southeast Asian region. Our alloy steel round bars are celebrated for their exceptional mechanical strength, impressive toughness, and remarkable wear resistance, making them perfect for critical structural and high-stress applications. Crafted to meet global standards like ASTM A29, A322, and AISI specifications, these bars come in a variety of grades, sizes, and finishes to cater to a wide range of industrial needs.
We typically produce Alloy Steel Round Bars from grades such as AISI 4130, 4140, 4340, and 8620, each containing different amounts of chromium, molybdenum, manganese, and carbon. These elements work together to boost properties like hardenability, fatigue strength, and impact resistance. Depending on the specific grade and heat treatment, our bars can achieve tensile strengths ranging from 600 to 1100 MPa, along with excellent machinability. They can be quenched, tempered, and surface-treated to meet the unique requirements of various applications.

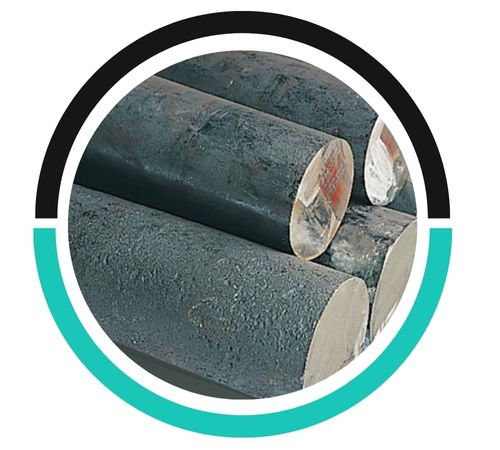

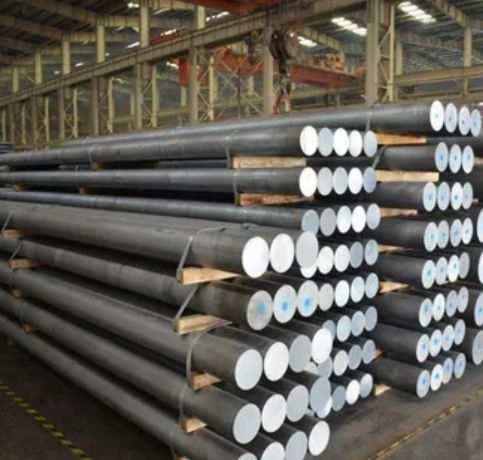

| Standard | ASTM A182, ASME SA182 |
|---|---|
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Round bar Size | Diameter: 3-~800mm |
| Hex Bar Size | 2-100mm A/F |
| Square Bar Size | 4 to 100mm |
| Angle Bar Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Threaded Bar Billet Size | 1/2 to 495mm Diameter |
| Rectangular Size | 33 x 30mm to 295 x 1066mm |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |

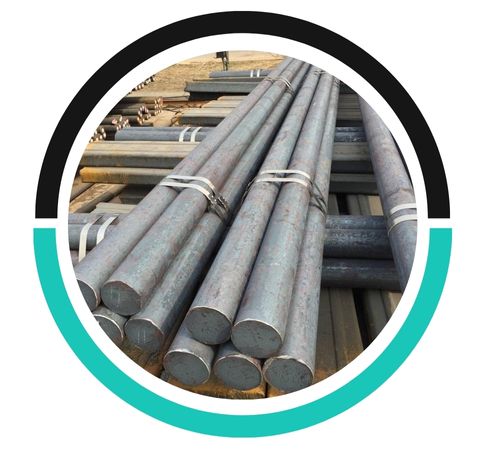

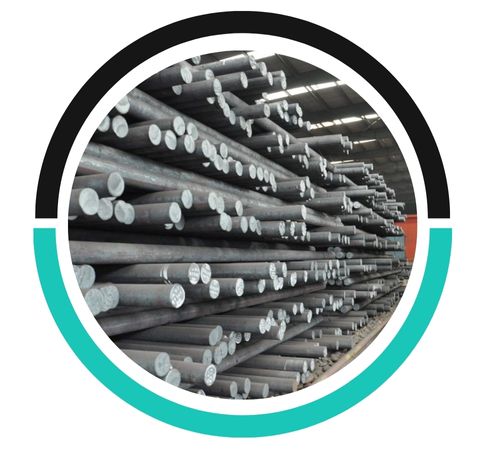

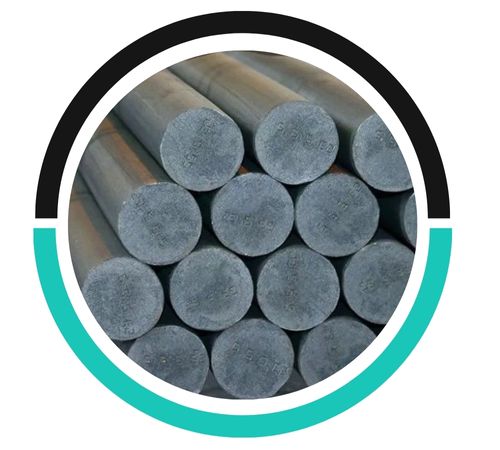

| Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650mm |
| Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Element | C | Cr | Mn | Mo | P | S | Si | Ni |
| F5 | 0.15 Max | 4.0-6.0 | 0.30-0.60 | 0.44-0.65 | 0.035 Max | 0.030 Max | 0.50 Max | 0.50 Max |

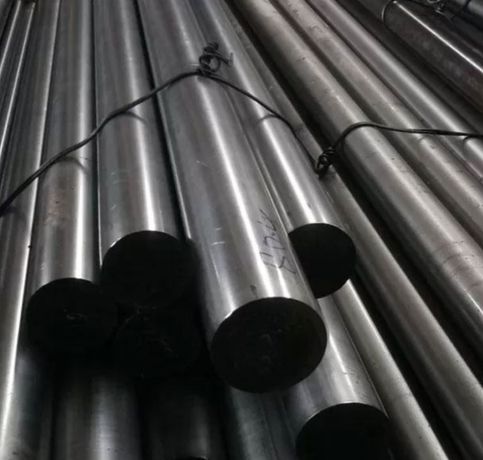

| F1 | 0.15 Max | 3.0-5.0 | 0.30-0.60 | 0.40-0.50 | 0.035 Max | 0.030 Max | 0.50 Max | 0.50 Max |

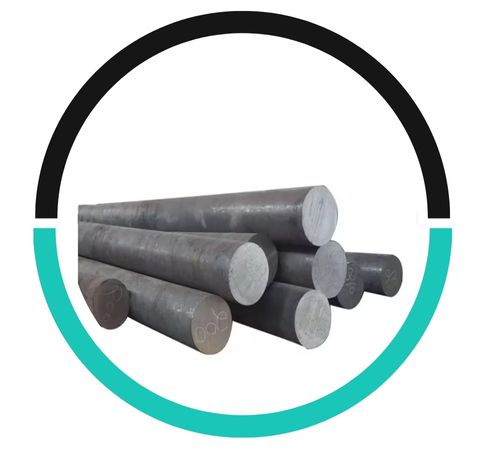

| F22 | 0.05-0.15 | 2.00-2.50 | 0.30-0.60 | 0.90-1.10 | 0.035 Max | 0.040 Max | 0.50 Max | – |
| F91 | 0.08-0.12 | 8.0-9.5 | 0.30-0.60 | 0.85-1.05 | 0.020 Max | 0.010 Max | 0.20-0.50 | 0.40 Max |
| F9 | 0.15 Max | 8.0-10.0 | 0.30-0.60 | 0.90- 1.10 | 0.030 Max | 0.030 Max | 0.50- 1.00 | – |
| F11 | 0.10-0.20 | 1.00-1.50 | 0.40-0.65 | 0.44-0.65 | 0.025 Max | 0.040 Max | 0.50-0.80 | – |
| Grade | Tensile Strength (ksi) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (ksi) min |
| F9 | 415 | 30 | 205 |
| F5 | 275 | 485 | 20 |
| US Bar | Metric | Japanese | Canadian/ASTM | ||||
| Diameter(Inch) | Bar Size | Diameter (millimeter) | Bar Size | Diameter (millimeter) | Bar Size | Diameter (millimeter2) | Bar Size |
| 0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
| 0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
| 0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
| 0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
| 0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
| 0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
| 1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
| 1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
| 1.250 | #10 | 12 | 12 | 32 | 32 | ||
| 1.375 | #11 | 14 | 14 | 35 | 35 | ||
| 1.500 | #12 | 16 | 16 | 38 | 38 | ||
| 1.625 | #13 | 18 | 18 | 41 | 41 | ||
| 1.750 | #14 | 20 | 20 | 44 | 44 | ||
| 1.875 | #15 | 22 | 22 | 48 | 48 | ||
| 2.000 | #16 | 25 | 25 | 51 | 51 | ||
| 2.250 | #18 | 28 | 28 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Diameter or Width (mm) | Weight per meter | Sectional Area | Perimeter | |||
| Square (kg) | Round (kg) | Square (cm²) | Round (cm²) | Square (cm) | Round (cm) | |
| 5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
| 5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
| 6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
| 7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
| 8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
| 9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
| 10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
| 11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
| 12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
| 14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
| 16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
| 18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
| 20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
| 22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
| 25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
| 28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
| 32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
| 36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
| 40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
| 45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
| 50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
| 56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
| 63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
| 71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
| 80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Alloy Steel Round Bars are manufactured through processes like casting, hot rolling, cold drawing, and machining. These methods shape the steel into round bars, ensuring desired strength, finish, and dimensional accuracy.
Yes, Alloy Steel Round Bars are customizable. They can be manufactured in various sizes, lengths, alloy compositions, and finishes to meet specific mechanical, thermal, and corrosion resistance requirements for different applications.
Alloy Steel Round Bars find their way into numerous industries, including automotive, oil & gas, aerospace, construction, and general engineering. You’ll often see them used in gears, shafts, axles, fasteners, drill collars, and heavy-duty components that face extreme stress and temperature. With their impressive strength-to-weight ratio, durability, and machinability, alloy steel round bars are the go-to choice for precision-engineered parts that need to perform reliably in challenging environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
