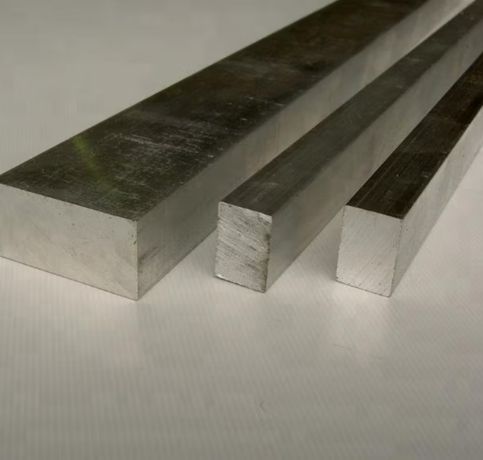

Based in Singapore, Singapore, Chuck Metals stands as a trusted name in the manufacturing and supply of premium-grade metal products. Our Titanium Rectangular Bars are engineered to meet the highest standards offering unmatched strength, corrosion resistance and lightweight properties. These bars are available in a variety of grades, dimensions and finishes to cater to the diverse requirements of industries such as aerospace, marine, automotive and medical. With a focus on precision and quality We ensure that each product delivers exceptional performance in even the most demanding applications. Our Titanium Rectangular Bars are the perfect choice for reliability, durability and efficiency across various industrial sectors.
Titanium Rectangular Bars are flat, elongated bars made from titanium. That is to say, they compared with other metals are indeed strong, but they are light in weight and do not corrode under certain conditions. Some of the other industrial applications and uses of these titanium rectangular bars include, but are not limited to, aerospace, marine, chemical processing, and medical industries, which require high-performance products in extreme environments. Composition of the material varies depending on the grade, for example, commercially pure titanium (Grade 2) which consists of about 99% titanium for enhanced corrosion resistance, whereas an alloy grade such as Grade 5 (Ti-6Al-4V) contains 90% titanium, 6% aluminum, and 4% vanadium, which makes this alloy grade more unique with respect to excellent high-strength characteristics and also many of its applications. These properties give relevance to the industry across all structural and specialized application domains.
| Standard | ASTM B348/ASME SB348, ASTMF67, ASTM F136, ISO-5832-2(3), AMS4928, MIL-T-9047G, JIS etc |
| Grade | TA1-TA4, TA7-TA10, TA15-TA18, GR1-GR5, GR6,GR7, GR9, GR11, GR12, TI-6AL-4V, TI-6AL-4VELI,GR23 |
| Diameter | 5-350mm |
| Length | Max6000mm |
| Technique | Forging ,Machining |
| Surface | acid surface or polishing, sand blasted surface |
| Shape | Rectangular |
| Application | Metallurgy, electronics, medical, chemical, petroleum, pharmaceutical, aerospace, etc. |
Hardness, Brinell | 120 | 120 | annealed |
Hardness, Knoop | 132 | 132 | Estimated from Brinell. |
Hardness, Rockwell B | 70 | 70 | annealed |
Hardness, Vickers | 122 | 122 | Estimated from Brinell |
Tensile Strength, Ultimate | 240 MPa | 34800 psi | – |
Tensile Strength, Yield | 170 – 310 MPa | 24700 – 45000 psi | – |
Elongation at Break | 24 % | 24 % | – |
Reduction of Area | 35 % | 35 % | – |
Modulus of Elasticity | 105 GPa | 15200 ksi | In Tension |
Compressive Modulus | 110 GPa | 16000 ksi | – |
Poisson’s Ratio | 0.37 | 0.37 | – |
Charpy Impact | 310 J | 229 ft-lb | V-notch |
Shear Modulus | 45 GPa | 6530 ksi | – |
|
Physical Properties |
Metric |
English |
|
Density |
4.51 g/cc |
0.163 lb/in³ |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.51 g/cc | 0.163 lb/in³ |
|
STANDARD |
WERKSTOFF NR. |
UNS |
|
Titanium |
3.7035 / 3.7165 / 3.7235 |
R50400 / R56400 / R52400 |
Titanium Rectangular Bars are used by industries, including several major applications of aerospace; namely, structures, brackets, and engine parts made from titanium rectangular bars. In general, the marine industry uses titanium rectangular bars in shipbuilding, components for desalination systems, and underwater equipment, taking into consideration its resistance to seawater corrosion. For the medical industry, implants, prosthetics, and surgical instruments are included, which are made of titanium rectangular bars because they are biome-compatible. In chemical processing, these lightweight, small parts are used in heat exchangers, reactors, and pipelines because those two properties help considerably with durability. To complement these industries and areas, they also find use in automotive, energy, and defense markets to manufacture high-performance components under demanding conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
