Chuck Metals, based in Singapore on Pulau Ujong, has earned a solid reputation as a reliable manufacturer and supplier of Stainless Steel 1.4122 Bars. They pride themselves on delivering exceptional quality and performance across various industrial sectors. With a focus on precision manufacturing and a strict commitment to international standards, Chuck Metals produces stainless steel bars that are known for their strength, durability, and reliability. Their Stainless Steel 1.4122 Bars are specifically designed to thrive in tough environments, making them perfect for high-stress and wear-resistant applications. Dedicated to customer satisfaction, timely deliveries, and technical know-how, Chuck Metals caters to industries such as automotive, energy, machinery, petrochemical, and construction on a global scale.
Stainless Steel 1.4122 Bars are a type of martensitic stainless steel, typically containing 12–14% chromium, 0.2–0.3% carbon, along with small amounts of manganese, silicon, and molybdenum. After undergoing heat treatment, these bars showcase impressive tensile strength of up to 950 MPa, along with excellent hardness and good wear resistance. They offer moderate corrosion resistance and are easy to machine and polish. This material is ideal for components that need both mechanical strength and dimensional stability, especially in situations where they face stress, friction, or abrasive conditions.
Length : 1 To 6 Meters, Custom Cut Length

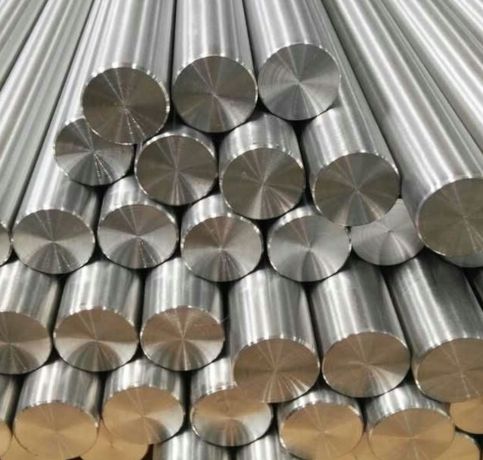

Round bar : Diameter: 3mm~ 800mm
Angle bar : Size: 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm
Square bar : Size: 4mm* 4mm ~100mm* 100mm

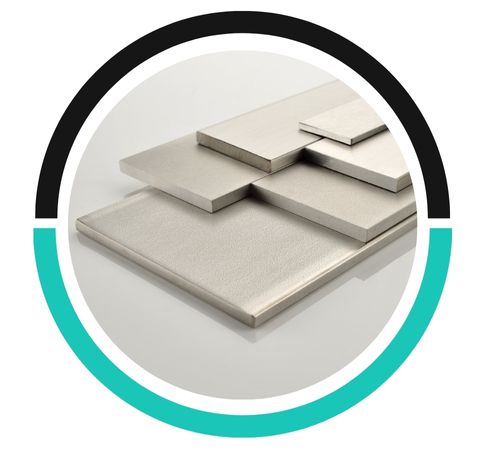

Flat bar : Thickness: 2mm ~ 100mm / Width: 10mm ~ 500mm

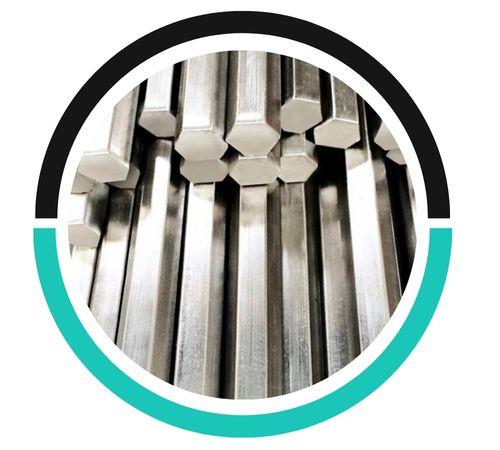

Hex bar : Size: 2mm ~ 100mm
Form : Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc
Surface Finishing : Pickled, Black, Bright, Polishing, Blasting, etc
Test Reports : SGS, BV, API, BSI, GHC.
Packing : Each steel bar has the singal, and several will be bundled by weaving bag or as per requirement.
Specials : Sizes and Specifications other than above can be manufactured on request
| Grade | C | Si | Mn | P | S | Cr | Mo | N | Others |
| SS 1.4122 | 0.33-0.45 | max 1.00 | max 1.5 | max 0.040 | max 0.015 | 15.5-17.5 | 0.80-1.30 | max 1.00 | – |
| Yield Rp0.2 (MPa) | Tensile Rm (MPa) | Impact KV/Ku (J) | Elongation A (%) | Reduction in cross section on fracture Z (%) | As-Heat-Treated Condition | Brinell hardness (HBW) |
| 869 (≥) | 926 (≥) | 41 | 44 | 23 | Solution and Aging, Annealing, Ausaging, Q+T,etc | 444 |
| EN | DIN | AFNOR |
| 1.4122 | 1.4122 – X 39 Cr Mo 17 1 | Z 38 CD 16-01 |
Yes, Stainless Steel 1.4122 bars can be recycled after use. Stainless steel is highly recyclable, retaining its properties and reducing environmental impact, making it a sustainable material for reuse.
Yes, Stainless Steel 1.4122 bars can be welded. It is weldable using standard methods like TIG or MIG welding, though pre-heating and post-weld heat treatment may be required for optimal results.
Yes, Stainless Steel 1.4122 bars can be heat treated. It can be hardened through quenching and tempering processes, improving strength and wear resistance while maintaining its corrosion resistance properties.
These Stainless Steel 1.4122 Bars find extensive use in applications that demand high mechanical strength, wear resistance, and moderate corrosion protection. They are commonly used to manufacture shafts, gears, fasteners, pump and valve components, and structural machine parts. Industries such as automotive, oil and gas, power generation, and industrial manufacturing favor these bars for their ability to withstand mechanical stress, making them perfect for tools, spindles, and hydraulic parts. Additionally, they are essential in construction and heavy machinery, where durability and a polished surface finish are crucial for long-lasting performance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
