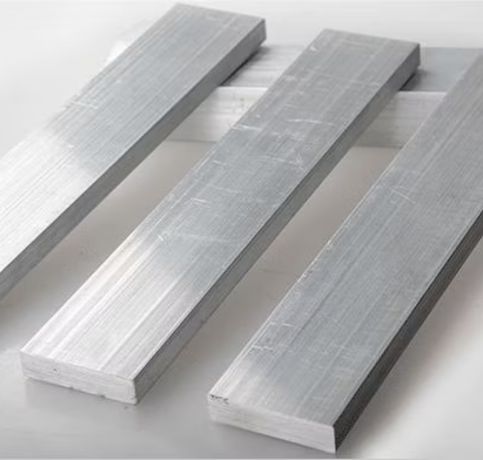

Chuck Metals has made a name for itself as a top-notch manufacturer and supplier of Aluminium Flat Bars and Rods in Singapore, Pulau Ujong. They pride themselves on delivering high-quality aluminium products that cater to a wide range of industrial needs. You can find these flat bars and rods in various grades, sizes, and tempers, making them perfect for both structural and architectural projects. With their impressive corrosion resistance, lightweight design, and easy fabrication, Chuck Metals’ aluminium flat products are a go-to choice in sectors like marine, construction, transportation, and general engineering. Their dedication to precision engineering and quality assurance guarantees that you can count on their aluminium solutions for reliable performance and long-lasting durability.
Aluminium Flat Bars and Rods are usually made from pure aluminium or aluminium alloys like 6061, 6082, or 1050, which incorporate elements such as magnesium, silicon, manganese, or zinc. These different compositions provide a range of mechanical properties, with tensile strengths varying from 95 MPa to 310 MPa, depending on the specific alloy and temper. They boast excellent corrosion resistance, good electrical conductivity, and high thermal conductivity. Plus, the material is highly formable and weldable, making it ideal for a variety of applications that require lightweight yet strong components.
Specification : ASTM B 221 ASME SB 221, B211, B565, B316 1100, AMS 4102
Standard : ASTM, BS and all International Standards
Temper : O, H12, H14, H16, H18, H22, H24, H26, H32, H112
Length : 100 mm To 3000 mm Long & Above
Size : 5 mm To 500 mm
| Alloy (ISS) | Equivalent alloy (A.A) | Copper | Magnesium | Silicon | Iron | Managanese Others* (Total) | Remarks | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Old | New | U.S.A | Min. | Max. | Min. | Max. | Min. | Max. | Min. | Max. | Max | Max. | Aluminum 99.0% Min. | ||
| 1 B | 19500 | 1050 | — | 0.05 | — | — | — | 0.30 | 0.4 | — | 0.05 | 0.1 | Aluminum 99.5% Min. | ||
| Alloy | Temper | UTS (Mpa) | Yield Strength (Mpa) | Elongation (%) | ||
|---|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Maximum | A 50mm (Minimum) | ||
| EN AW-1050 A | F | 60 | – | 20 | – | 23 |
| O | 60 | 95 | 20 | – | 23 | |
Yes, aluminum flat bars are corrosion-resistant due to the natural oxide layer that forms on their surface, protecting them from environmental factors like moisture and air, preventing rust and degradation.
Aluminium flat bars can withstand moderate temperatures but may lose strength at high temperatures above 150°C (302°F). Prolonged exposure can lead to deformation and reduced mechanical properties.
Yes, aluminum rods can be customized in size and length according to specific requirements. Manufacturers often offer custom machining services to meet exact dimensions and tolerance specifications.
You’ll find Aluminium Flat Bars and Rods being widely used in structural and fabrication work, including frames, brackets, and support systems. In the construction world, they’re commonly found in window frames, curtain walls, and roofing applications. The transportation industry utilizes them for bus and truck bodies, railway components, and marine structures. Their electrical conductivity makes them perfect for power transmission lines and electrical enclosures. Additionally, their non-toxic and non-sparking properties make them safe for use in food processing and chemical industries, where safety and hygiene are crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
