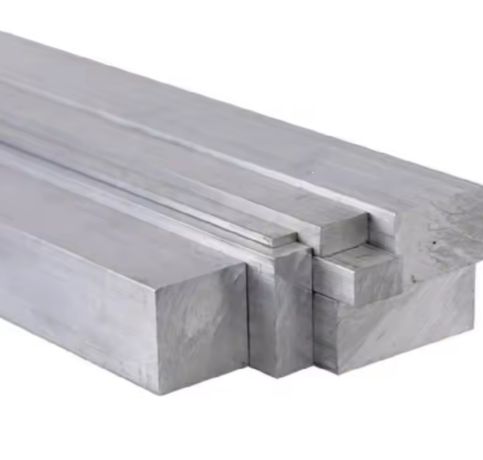

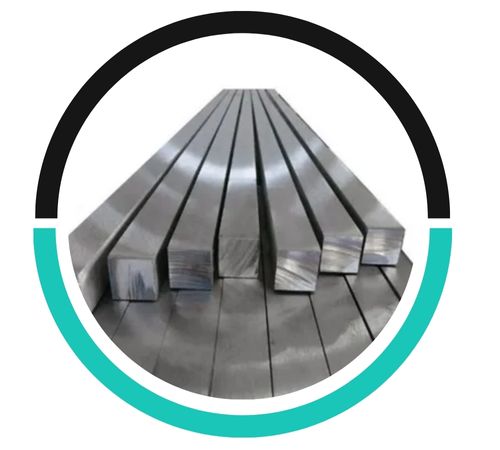

Chuck Metals is a trusted manufacturer and supplier of Aluminium Square Bar Rods based in Singapore, Pulau Ujong. They’re well-known for providing top-notch non-ferrous metal products that cater to a variety of industrial needs. These square bars and rods are meticulously crafted to meet international quality standards and come in a range of grades, tempers, and sizes to fit different fabrication requirements. With their impressive strength, resistance to corrosion, and ease of machining, Aluminium Square Bar Rods are perfect for both heavy-duty tasks and everyday applications. Chuck Metals guarantees timely delivery and maintains strict quality control, serving industries like construction, transportation, marine, and machinery.
Typically made from high-purity aluminium, these rods include alloying elements such as magnesium, silicon, copper, or manganese, depending on the specific grade (like 6061, 6082, or 7075). They usually boast a tensile strength that ranges from 150 MPa to over 550 MPa, influenced by the temper and alloy. These bars are known for their good corrosion resistance, especially in marine and industrial settings, while also providing excellent thermal and electrical conductivity. Their mechanical properties make them ideal for both structural and load-bearing applications.
| Alloy | Fe | Si | Mg | Mn | Cu | Zn | Ti | Cr | Others | AI |
| 1100 (min) | 0.35 | 0.25 | 0.01 | 0.01 | 0.05 | 0.01 | 0.020 | Trace | 0.05 (each) | 99.60% |
| 1100 (max) | 0.50 | 0.35 | 0.03 | 0.05 | 0.20 | 0.05 | 0.030 | Trace | 0.15 (total) | remainder |
| 5083 | 0.40 max | 0.40 max | 4.0 / 4.90 | 0.40 / 1.0 | 0.10 max | 0.25 max | 0.15 max | 0.05 / 0.25 | 0.05 max | Bal |
| 6061 | 0.7 | 0.4-0.8 | 0.8-1.2 | 0.15 | 0.15-0.4 | 0.25 | 0.15 | 0.15-0.35 | 0.005/0.15 | Remainder |
| 6068 | 0.50 max | 0.7 – 1.3 | 0.06-1.20 | 0.40-1.00 | 0.10 max | 0.20 max | 0.10 max | 0.25 max | 0.05 max | Bal |
| 7075 min | 2.10 | 1.20 | 5.10 | 0.18 | ||||||
| 7075 max | 0.50 | 0.40 | 2.90 | 0.30 | 2.00 | 6.10 | 0.20 | 0.28 | 0.05 |
| Alloy | Temper | UTS(Mpa) | % Elongation | Tensile Strength | Hardness Brinell | Proof Stress | Yield Strength (PSI) | Shear Strength (PSI) | Brinell Hardness | |||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||||||||
| 1100 | O | 75 | 110 | 20 | 25 | 29 | ||||||
| H12 | 95 | 130 | 5 | 6 | 7 | |||||||
| H14 | 110 | 145 | 3 | 4 | 5 | |||||||
| H16 | 130 | 165 | 2 | 3 | 4 | |||||||
| H18 | 150 | — | 2 | 2 | 3 | |||||||
| 5083 | 12 Min % | 275 – 350 MPa | 75 HB | 125 Min MPa | ||||||||
| 6061 | – | 45,000 | 12 | 40,000 | 31,000 | 95 | ||||||
| 6082 | 8 | 295 | 95 | – | 240 | – | – | |||||
7075 T6, T651 | 11 | 83-572 | 73- 503 | 150 | ||||||||
7075 T73, T7351 | 13 | 73-503 | 63-434 | NA | ||||||||
| Grade | UNS | USA | Japan | France | ISO | WNR | EN | DIN | ISO | BS (OLD) |
| 1100 | A91100 | AA1100 | JIS A1100P | NF 1100 | Al 99.0 Cu. | – | – | – | – | – |
| 6082 | A96082 | AA6082 | – | – | – | 3.2315 | AW-6082 | AlMgSi1 | AlSi1MgMn | HE30 |
| 5083 | A95083 | 5083 | – | – | AlMg4,5Mn0,7 | 3.3547 | AW-AlMg4,5Mn0,7 | AlMg4,5Mn | – | – |
| 6061 | A96061 | AA6061 | – | – | – | 3.3211 | AW-AlMg1SiCu EN AW-6061 | AlMgSiCu | AlMg1SiCu | HE20 |
| 7075 | A97075 | 7075 | 3.4365 | ENAW-AlZn5.5MgCu EN AW-7075 | AlZnMgCu1.5 | AlZn6MgCu | 7075 L95 L96, V95 |
Yes, aluminum square bars are corrosion-resistant due to the formation of a protective oxide layer on the surface. This layer helps prevent further corrosion in most environmental conditions.
Aluminum square bars perform well in moderate heat but lose strength at high temperatures, typically above 200°C (392°F). They are not ideal for extreme high-temperature environments due to softening and deformation.
Yes, aluminum square rods can be customized in size and length based on specific requirements. Manufacturers offer a range of dimensions and can tailor the rods to meet individual project needs.
Aluminium Square Bar Rods find their way into a wide array of industries thanks to their fantastic blend of strength, formability, and corrosion resistance. You’ll often see them used in frameworks, brackets, support structures, and machine components. In the marine and transport sectors, these rods are favored for their lightweight yet durable nature. The architectural and fabrication industries utilize them for window frames, grills, and structural reinforcements. Their machinability and compatibility with welding and anodizing processes further enhance their application in precision parts, tools, and fixtures.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
