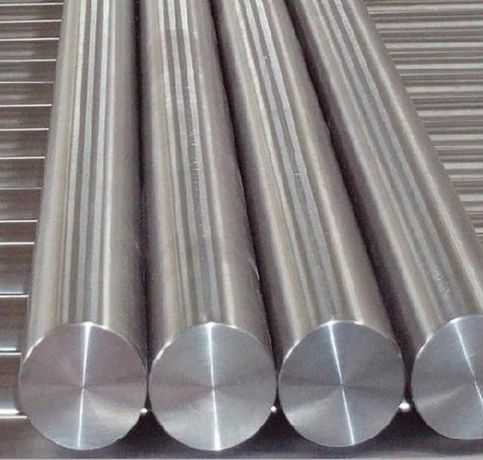

Chuck Metals is a reliable manufacturer and supplier of Duplex Steel Bright Bars in Singapore, providing precision-engineered stainless solutions to various industries across Pulau Ujong and Southeast Asia. These bright bars are celebrated for their high strength, excellent surface finish, and remarkable corrosion resistance, making them perfect for critical applications that demand both mechanical durability and aesthetic appeal. Adhering to ASTM A276, A479, and other international standards, our bright bars are crafted using advanced cold drawing or centerless grinding techniques to ensure superior dimensional accuracy and a smooth, shiny surface.
Typically, Duplex Steel Bright Bars consist of 22–25% chromium, 4.5–6.5% nickel, and 2.5–3.5% molybdenum, with added nitrogen to boost strength and pitting resistance. They boast a tensile strength ranging from 600 to 900 MPa and a yield strength of about 450 to 620 MPa, which is nearly double that of standard stainless steels. The duplex microstructure offers excellent resistance to stress corrosion cracking, erosion, and chloride-induced corrosion, while also providing high fatigue strength and good machinability.
Standards : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 10 mm To 100 mm Dia in
Length : 100 mm TO 6000 mm Length.
Specifications : ASTM A276, A479 / ASME SA276, SA479
Form : Bright
Finish : Bright, Polish & Black
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
S31803 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 – 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
| S31803 / S32205 | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
Yes, Duplex Steel Bright Bars are suitable for natural gas applications due to their excellent corrosion resistance, high strength, and durability, making them ideal for pipelines and gas processing systems.
Yes, Duplex Steel Bright Bars are suitable for hygienic and sanitary applications due to their corrosion resistance, cleanability, and ability to withstand harsh environments, making them ideal for food and pharmaceutical industries.
Duplex Bright Bars find extensive use in the oil & gas, marine, chemical processing, pharmaceutical, and food processing sectors. They are commonly used in applications such as valves, pump shafts, fasteners, machined components, and architectural hardware, where corrosion resistance, precision tolerance, and a smooth finish are crucial. Their blend of visual appeal and structural integrity makes them a top choice for both functional and decorative engineering applications in challenging environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
