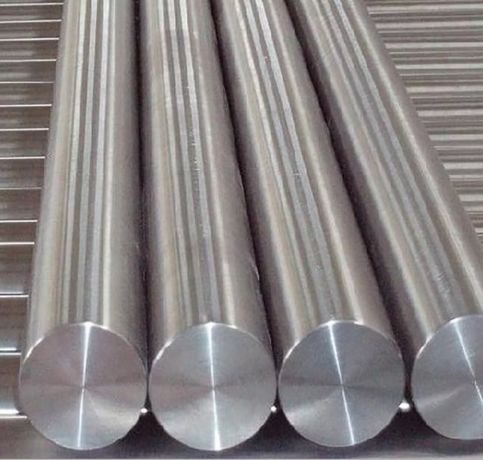

Chuck Metals stands out as a top manufacturer and supplier in Singapore, specifically on Pulau Ujong, where they offer high-quality Inconel Round Bars. These bars are celebrated for their remarkable strength, resistance to corrosion, and performance in tough environments. Crafted from premium nickel-chromium alloys, they’re perfect for applications that require durability against oxidation, extreme temperatures, and harsh chemicals. Chuck Metals is committed to precision manufacturing, rigorous quality control, and adherence to international standards, ensuring that their Inconel Round Bars meet the demanding needs of industries like aerospace, marine, chemical processing, and power generation with unparalleled reliability.
Inconel Round Bars primarily consist of nickel and chromium, along with other elements like iron, molybdenum, and niobium to boost their properties. They showcase impressive tensile strength, excellent fatigue resistance, and remarkable stability across a broad temperature range. These bars retain their mechanical integrity even when faced with thermal cycling, oxidation, and corrosive environments, making them ideal for challenging industrial applications.
| Ni | Cr | Fe | Mo | Nb+Ta | C | Mn | Si | Ph | S | Al | Ti | Co | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | Bal | 20 | – | 8 | 3.15 | – | – | – | – | – | – | – | – |
| Max | – | 23 | 5 | 10 | 4.15 | 0.10 | 0.50 | 0.50 | 0.015 | 0.015 | 0.40 | 0.40 | 1.0 |
| 0.2% Proof Stress | Tensile Strength | Elongation | Reduction of area | Hardness |
|---|---|---|---|---|
| MPA | MPA | % | % | HRB |
| Min | Min | Min | Min | Min |
| 414 | 827 | 30 | 40 | 145 |
| Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| 7 x 7 | 0.337 | 19 x 19 | 2.479 | 38 x 38 | 9.916 |
| 8 x 8 | 0.44 | 20 x 20 | 2.747 | 40 x 40 | 10.988 |
| 9 x 9 | 0.556 | 21 x 21 | 3.029 | 42 x 42 | 12.114 |
| 10 x 10 | 0.687 | 22 x 22 | 3.324 | 45 x 45 | 13.906 |
| 11 x 11 | 0.831 | 24 x 24 | 3.956 | 48 x 48 | 15.822 |
| 12 x 12 | 0.989 | 25 x 25 | 4.292 | 50 x 50 | 17.168 |
| 13 x 13 | 1.161 | 26 x 26 | 4.642 | 53 x 53 | 19.29 |
| 14 x 14 | 1.346 | 28 x 28 | 5.384 | 55 x 55 | 20.774 |
| 15 x 15 | 1.545 | 30 x 30 | 6.181 | 60 x 60 | 24.723 |
| 16 x 16 | 1.758 | 32 x 32 | 7.032 | 65 x 65 | 29.015 |
| 17 x 17 | 1.985 | 34 x 34 | 7.939 | 70 x 70 | 33.65 |
| 18 x 18 | 2.225 | 36 x 36 | 8.9 | 75 x 75 | 38.629 |
Inconel Round Bars are not typically used for hygienic and sanitary applications due to their specialized high-temperature and corrosion-resistant properties.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@chuckmetals.com
You’ll find Inconel Round Bars commonly used in turbine components, heat exchangers, chemical reactors, nuclear power systems, marine hardware, and gas processing equipment. Their ability to perform consistently under high stress and extreme temperatures makes them essential in sectors such as aerospace, petrochemical, oil & gas, and marine engineering, where durability and safety are paramount.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Chuck Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Singapore, Singapore
