Chuck Metals is a well-known manufacturer and supplier of top-notch specialty alloys based in Singapore, Pulau Ujong. They provide high-performance Inconel 617 Bars and Rods, specifically designed for industries that operate under extreme conditions. With a strong focus on precision, durability, and material integrity, Chuck Metals delivers Inconel 617 for various applications, including aerospace, chemical processing, and power generation. This alloy is celebrated for its remarkable strength and resistance to oxidation at high temperatures, making it a dependable choice for challenging environments. With a solid foundation of technical expertise, prompt deliveries, and competitive pricing, Chuck Metals has earned its reputation as a reliable partner for high-temperature alloy needs throughout Southeast Asia and beyond.
Inconel 617 Bars and Rods are primarily made up of nickel (44.5–60%), along with 20–24% chromium, 8–10% cobalt, 9–11% molybdenum, and trace amounts of aluminum. This distinctive blend of alloys ensures excellent oxidation resistance, high-temperature strength, and metallurgical stability. It boasts a tensile strength of about 750 MPa and a yield strength of around 360 MPa. Inconel 617 consistently performs well under high-stress, high-temperature conditions, resisting carburization and creep deformation. Its strength remains intact across a wide temperature range, particularly in environments exceeding 1000°C, making it perfect for components that need both heat resistance and structural reliability over extended service periods.
| Standards | ASTM B166, ASME SB 166, AMS 5887 |
|---|---|
| Specifications | DIN, EN, ASTM, JIS, ASME, BS, AISI |

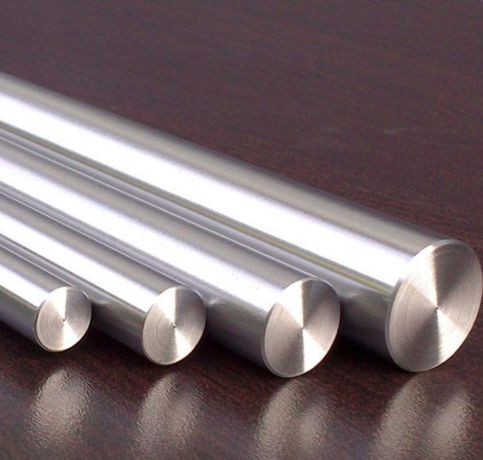

| 617 Inconel Round Bars size | Diameter: 3-~800mm |

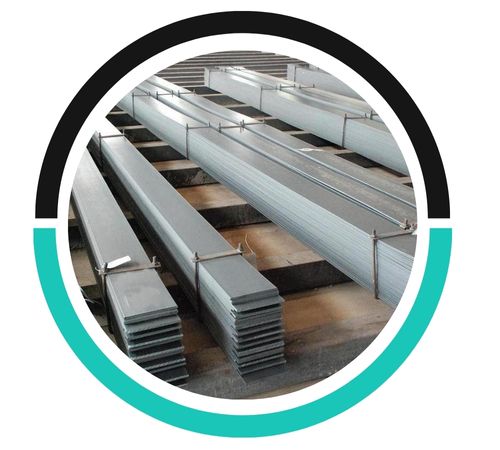

| Inconel 617 Flat Bars size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Inconel 617 Angle Bars size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Inconel 617 Channel Bars | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Alloy 617 Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Inconel 617 Billet Size | 1/2 to 495mm Diameter |

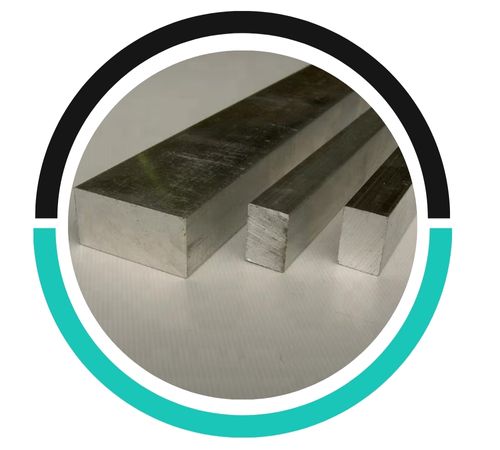

| Inconel 617 Rectangle Bar Size | 33 x 30mm to 295 x 1066mm |

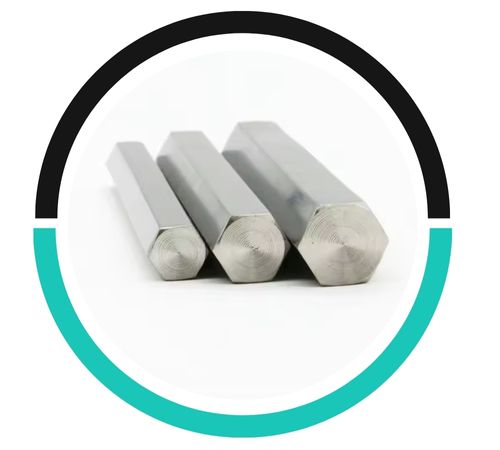

| Inconel 617 Hex Bar size | 2-100mm A/F |
| Inconel 617 Hollow Bars | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Diameter | 20mm, 30mm, 50mm, 80mm, 100mm, 150mm, 200mm, 500mm |
| Length | 1m-12m or as required |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | hot rolled annealed, peeled, Bright, hot-worked and cold-worked rod and bar, centreless ground, Centreless Ground and Black, Polish, Cold Rolled (CR), hot rolled ( R), smooth turned, Cold (bright) drawn, Grinding, slit rolled edge, Rough Turned. |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Cold Drawn, Hot Rolled, Forged Round Bars, Cold Rolled, Rod |
| Processing | Bars cutting to 650mm |

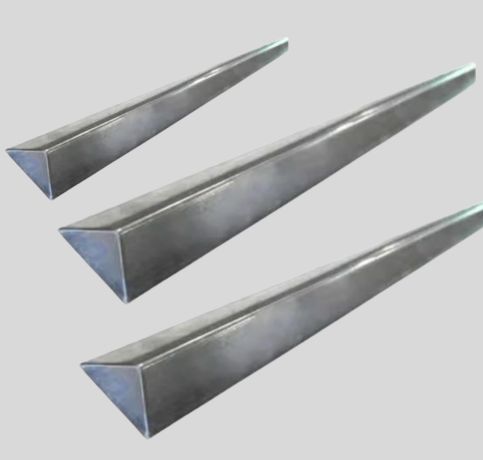

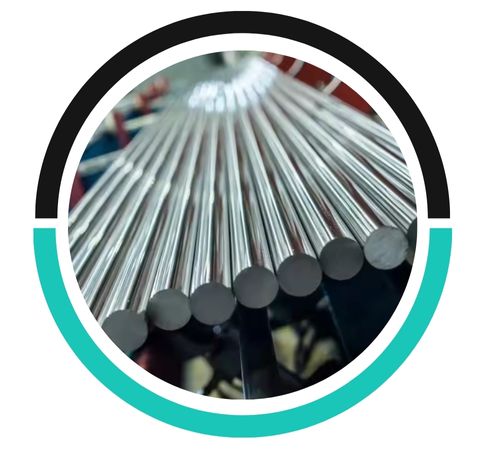

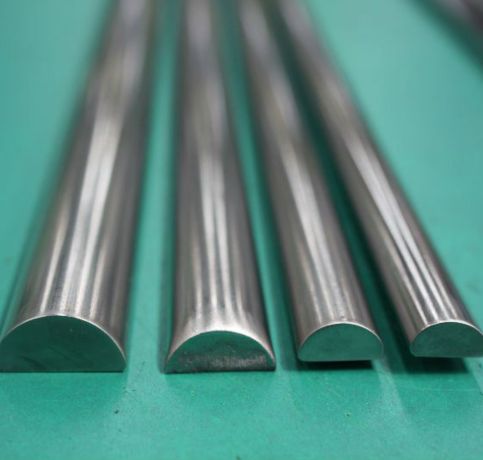

| Form | Rod, Round, Channel Bars, T-Bars, Flat Bars, Precision Ground Bars, Blocks, Square, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bars, Ingot, Billet, I/H Bars, Forging etc. |
| STANDARD | WERKSTOFF NR. | UNS |
| Inconel 617 | 2.4663 | N06617 |
| Grade | Ni | Cr | Fe | C | Mn | S | Mo | Si | Co |
| Inconel 617 | 48.85 – 62 | 20 – 24.0 | Balance | ≤ 0.15 | ≤ 1 | – | 8 – 10 | ≤ 1 | 10-15 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.3g/cm³ | 1363°C | ≥ 485 MPa | ≥ 275 MPa | 25 % |
Inconel 617 Bars and Rods find extensive use in applications that demand strength, oxidation resistance, and thermal stability at elevated temperatures. In the aerospace sector, they are utilized in combustion cans, transition ducts, and turbine components. In the power and energy industry, this alloy is ideal for gas turbines, heat exchangers, and reformer systems that face high heat and pressure. Chemical processing facilities rely on it for reactors and piping in corrosive and high-temperature settings. Thanks to its outstanding performance under extreme thermal stress, Inconel 617 is also a preferred choice for advanced applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
