Chuck Metals stands out as a top-notch manufacturer and supplier of high-quality metal products in Singapore, proudly catering to various industries across Pulau Ujong. With a strong background in engineering and material knowledge, the company provides an extensive array of industrial metal solutions designed for high-performance needs. One of their flagship offerings, the Carbon Steel EN-31 R-100 Bars, is well-known for its impressive strength, wear resistance, and toughness. Chuck Metals is committed to meeting rigorous industry standards, ensuring that each batch undergoes thorough testing for quality, consistency, and performance. This dedication makes them a reliable supplier for sectors like automotive, manufacturing, tooling, and heavy machinery.
The Carbon Steel EN-31 R-100 Bars are high-carbon alloy steel bars that contain around 1.1–1.2% carbon, 1.0–1.6% chromium, along with trace amounts of manganese and silicon. This unique blend results in bars that boast exceptional hardness, high tensile strength, and outstanding wear resistance after heat treatment. Typically, the tensile strength of EN-31 falls between 850–1000 MPa, and it retains good toughness and fatigue strength even under dynamic loading conditions. These bars can be hardened and tempered to boost surface durability while keeping their core strength intact. Their mechanical properties make them perfect for components that need to withstand high hardness and load-bearing capacity in abrasive environments.
| Properties | Description |
|---|---|
| Standard | ASTM B 111 |
| Range | 5 mm To 500 mm thick in 100 mm TO 6000 mm |
| Wire Range | 50 Swg. to 4 Swg. |
| Length | 100 mm to 3660 mm Long |
| Form | Round, Square, Hex (A/F), Bush, Rectangle , Flat, Wire Mesh |
| Application | Sea water pipework, Offshore fire water systems, Heat exchangers and condensers, Sheathing of legs and risers on offshore platforms and boat hulls, Hydraulic lines, Fish cages for aquaculture, Desalination units. |
| Grade | Mn | Cu | Pb | Fe | Ni | Zn |
|---|---|---|---|---|---|---|
| 90/10 | 1.0 max | 88.6 min | 0.5 max | 1.8 max | 9-11 max | 1 max |
| 70/30 | 1 max | 65.0 min | 0.5 max | 0.4-1.0 | 29-33 | 1 max |
| Grade | Melting point | Density | Tensilestrength | Elongation | Yieldstrength(0.2%Offset) |
|---|---|---|---|---|---|
| 90/10 | 2260°F | 8.8g/cm3 | 50000 PSi | 30% | 20000PSi |
| 70/30 | 2260°F | 0.323 lb/in3 at 68°F | 50000 PSi | 30% | 20000PSi |

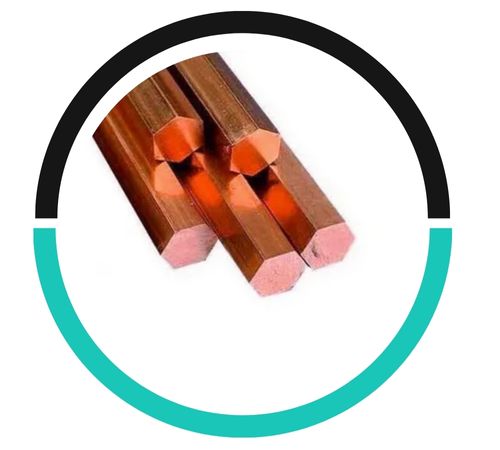

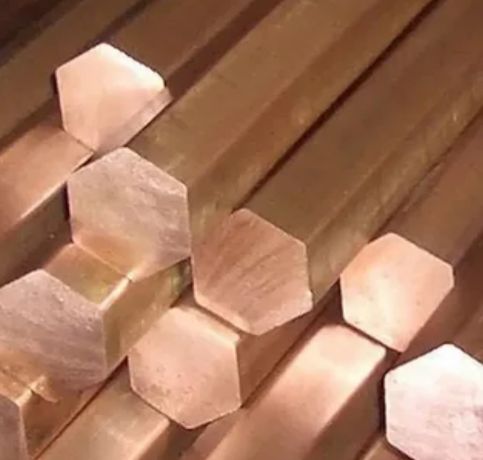

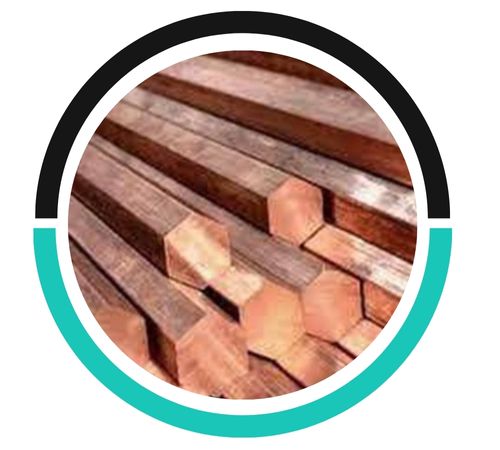

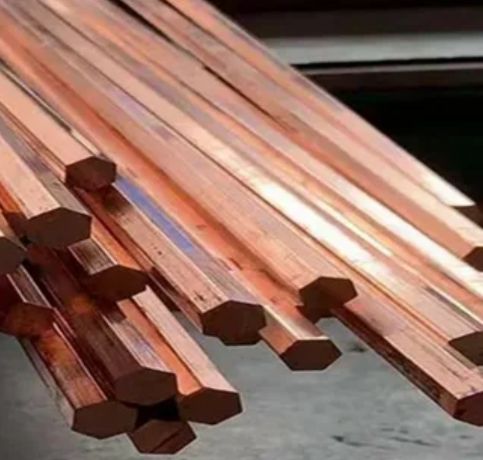

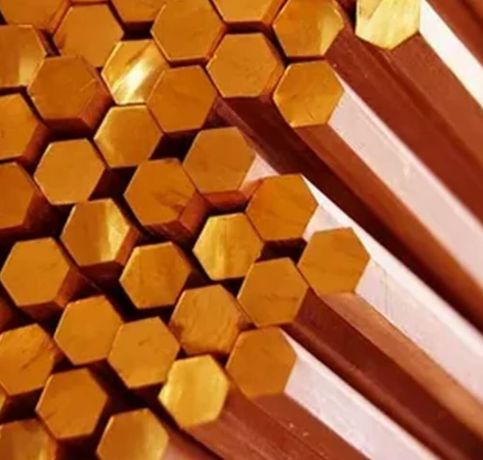

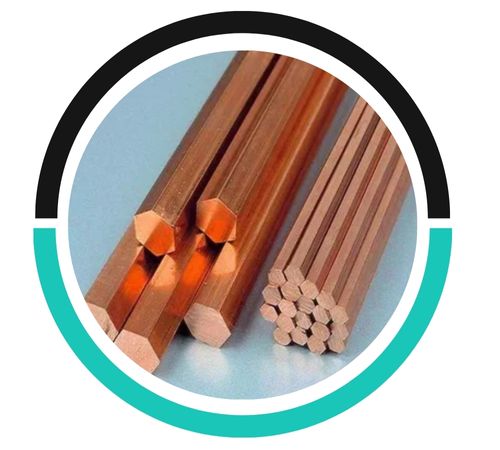

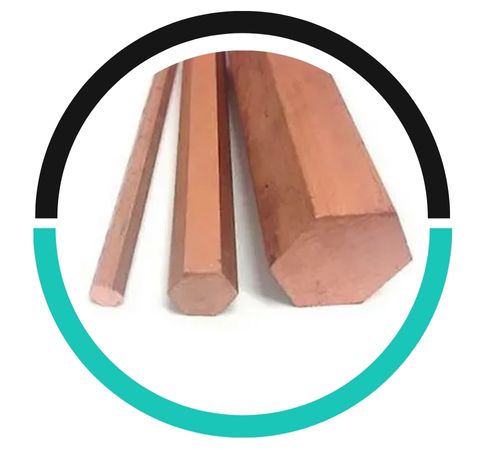

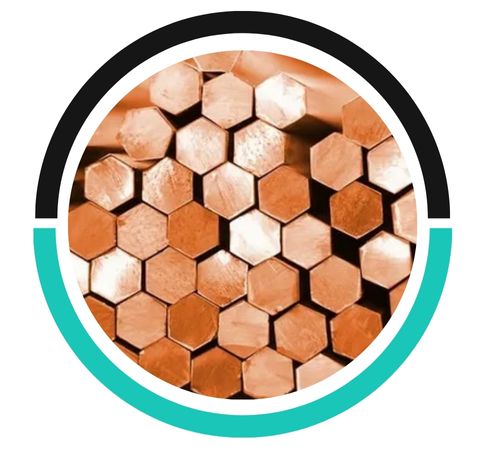

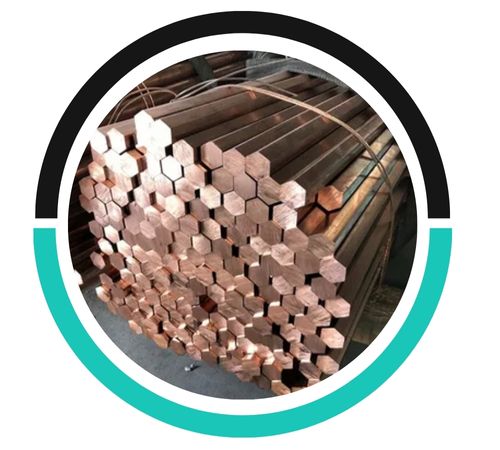

| CUNI Hex Bar | Size(mm) | 16 | 18 | 20 | 22 | 25 | 28 | 30 | 32 | 36 | 38 | 40 | 45 | 50 | 56 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| WT / mtr (KG) | 2.05 | 2.59 | 2.49 | 3.87 | 5 | 6.27 | 7.2 | 8.19 | 10.37 | 11.55 | 12.8 | 16.2 | 20 | 25.08 | |
| WT / feet (KG) | 0.62 | 0.79 | 0.76 | 1.18 | 1.52 | 1.91 | 2.19 | 2.5 | 3.16 | 3.52 | 3.9 | 4.94 | 6.1 | 7.65 |
| Hex bar – metric sizes and weights | ||
|---|---|---|
| Size | KG’s / metre | Standard length (m) |
| 13 x 5 | 0.46 | 6.0 |
| 13 x 3 | 0.31 | 6.0 |
| 16 x 3 | 0.38 | 6.0 |
| 10 x 3 | 0.24 | 6.0 |
| 16 x 8 | 1.03 | 6.0 |
| 16 x 5 | 0.64 | 6.0 |
| 20 x 3 | 0.48 | 6.0 |
| 20 x 6 | 0.97 | 6.0 |
| 20 x 5 | 0.81 | 6.0 |
| 20 x 10 | 1.61 | 6.0 |
| 25 x 5 | 1.01 | 6.0 |
| 25 x 3 | 0.60 | 6.0 |
| 25 x 6 | 1.21 | 6.0 |
| 25 x 10 | 2.01 | 6.0 |
| 25 x 8 | 1.61 | 6.0 |
| 25 x 12 | 2.41 | 6.0 |
| 32 x 5 | 1.29 | 6.0 |
| 32 x 3 | 0.77 | 6.0 |
| 32 x 6 | 1.55 | 6.0 |
| 32 x 10 | 2.58 | 6.0 |
| 32 x 8 | 2.06 | 6.0 |
| 32 x 12 | 3.09 | 6.0 |
| 40 x 5 | 1.61 | 6.0 |
| 40 x 3 | 0.97 | 6.0 |
| 40 x 6 | 1.93 | 6.0 |
| 40 x 10 | 3.22 | 6.0 |
| 40 x 8 | 2.58 | 6.0 |
| 40 x 12 | 3.86 | 6.0 |
| 40 x 20 | 6.14 | 6.0 |
| 40 x 16 | 5.15 | 6.0 |
| 50 x 3 | 1.21 | 6.0 |
| 50 x 6 | 2.41 | 6.0 |
| 50 x 5 | 2.01 | 6.0 |
| 50 x 8 | 3.22 | 6.0 |
| 50 x 12 | 4.83 | 6.0 |
| 50 x 10 | 4.02 | 6.0 |
| 50 x 16 | 6.44 | 6.0 |
| 50 x 25 | 10.1 | 6.0 |
| 50 x 20 | 8.05 | 6.0 |
| 65 x 3 | 1.57 | 6.0 |
| 65 x 6 | 3.14 | 6.0 |
| 65 x 5 | 2.62 | 6.0 |
| 65 x 8 | 4.18 | 6.0 |
| 65 x 12 | 6.28 | 6.0 |
| 65 x 10 | 5.23 | 6.0 |
| 65 x 16 | 8.37 | 6.0 |
| 65 x 25 | 13.1 | 6.0 |
| 65 x 20 | 10.5 | 6.0 |
| Grade | UNS | Werkstoff Nr. |
| 90/10 | C70600 | 2.0872 |
| 70/30 | C71500 | 2.0882 |
Yes, copper-nickel hex bars are customizable. They can be produced in various sizes, lengths, and finishes according to specific customer requirements. Customization options may include heat treatments, surface finishes, and alloy compositions.
Carbon Steel EN-31 R-100 Bars find their place in applications where high strength, wear resistance, and dimensional stability are crucial. In the automotive sector, they are perfect for crafting gears, shafts, axles, and bearings that face constant mechanical stress. In the tooling industry, EN-31 bars are favored for producing dies, punches, and cutting tools thanks to their superior hardness post-heat treatment. Heavy-duty machinery and equipment parts also reap the benefits of their abrasion and fatigue resistance. Moreover, these bars are utilized in roller bearings and other rotating components where durability and mechanical stability are key.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
