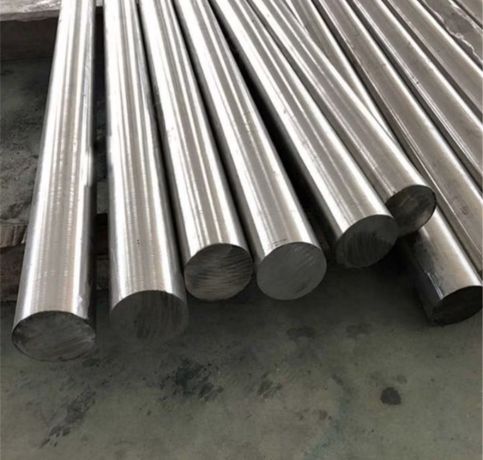

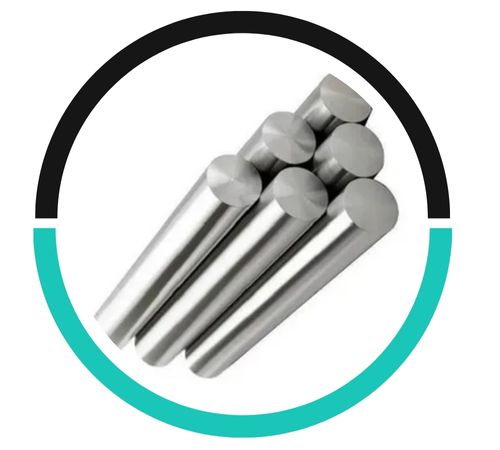

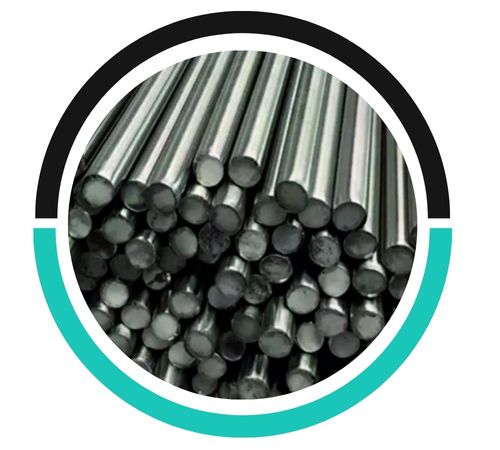

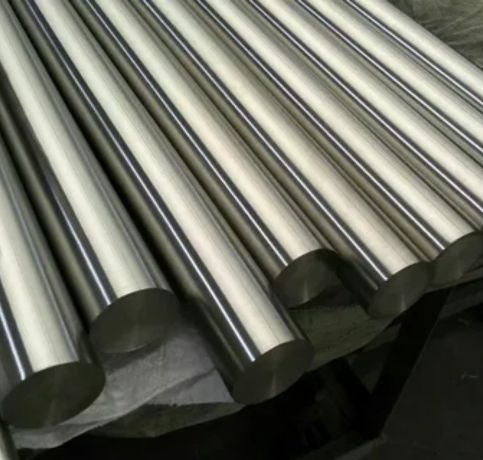

Chuck Metals is a reliable manufacturer and supplier based in Singapore, Pulau Ujong, specializing in high-quality stainless steel polished bars and rods. Renowned for our commitment to quality, precision, and dependable supply chains, we serve both local and international markets. Our polished bars and rods are crafted using cutting-edge finishing techniques, ensuring they boast excellent surface smoothness, corrosion resistance, and visual appeal. With a dedicated team of skilled metallurgists and engineers, we guarantee that every product adheres to global industry standards, making us a go-to partner in the construction, marine, energy, and engineering sectors for top-notch stainless steel solutions.
When it comes to composition, stainless steel polished bars and rods primarily consist of iron, along with varying amounts of chromium (usually 16–20%), nickel (8–14%), and molybdenum (2–3%), depending on the specific grade. These elements work together to enhance corrosion resistance, surface shine, and mechanical strength. In terms of mechanical properties, they showcase tensile strength ranging from 515 to 900 MPa, yield strength between 205 and 450 MPa, and elongation of up to 40%. The polished finish not only elevates their appearance but also boosts resistance to contamination and surface wear. These rods and bars undergo meticulous polishing processes, including bright, mirror, or satin finishes, tailored to meet various industrial and architectural requirements.
Standards : ASTM A276, ASTM A484, AISI
Grade : 201, 202, 301, 302, 303, 304, 304H, 304L, 316, 316H, 316L, 309, 309S, 310, 310S, 316Ti, 317, 317L, 347, 321, 321H, 410, 416, 420, 430, 430F, 431, 440C, 630, 17-4PH, F51
Range : from 2.00mm to 6.35mm (0.078″ to 0.25″)dia.
Tolerance : DIN 671, ASTM A484 & as per customer’s specific requirement.
Finish : Cold drawn, Centreless Ground, Polished
| Grade | Su | C | Si | P | Cr | Ni | M | Mo | Other |
|---|---|---|---|---|---|---|---|---|---|
| 316 | 0.030 max | 0.08 max | 0.75 max | 0.045 max | 16.0-18.0 | 10.0 14.0 | 2.00 max | 2.0 3.0 | – |
| 317L | 0.030 max | 0.035 max | 0.75 max | 0.045 max | 18.0-20.0 | 11.0 14.0 | 2.00 max | 3.0 4.0 | – |
| 304 | 0.030 max | 0.08 max | 0.75 max | 0.045 max | 18.0-20.0 | 8.0 11.0 | 2.00 max | – | – |
| 310 S | 0.030 max | 0.08 max | 1.5 max | 0.045 max | 24.0-26.0 | 19.0 22.0 | 2.00 max | 3.0 4.0 | – |
| 347 H | 0.030 max | 0.04 0.10 | 0.75 max | 0.045 max | 17.0- 19.0 | 9.0 13.0 | 2.00 max | – | 10C(Cb+Ta)<1.10% |
| 321 | 0.030 max | 0.08 | 0.75 max | 0.045 max | 17.0-20.0 | 9.0 12.0 | 2.00 max | – | 5C 0.70% |
| Grade | Tensile Strength | Yield Strength (0.2%Offset) | Density | Elongation | Melting Point |
|---|---|---|---|---|---|
| SS 303 | Psi – 85,000 | Psi – 45,000 | 55% | 50 % | Rb 180 |
| SS 202 | 515 MPa | 275 MPa | 8.0 g/cm3 | 40 % | 1454 °C |
| SS 304 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 8.0 g/cm3 | 40% | 1400 °C |
| SS 304L | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 8.0 g/cm3 | 40% | 1400 °C |
| SS 316 | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 8.0 g/cm3 | 35 % | 1454 °C |
| SS 316L | 485 Min | 170 Min. | 8.0 g/cm3 | 40 % | 1400 °C |
The typical lifespan of stainless steel polished bars ranges from 20 to 100 years, depending on environmental conditions, maintenance, and alloy composition, with excellent corrosion resistance ensuring long-term durability.
Yes, stainless steel polished bars and rods can be customized in size. Manufacturers offer various diameters, lengths, and finishes to meet specific project requirements, ensuring tailored solutions for different applications.
Yes, stainless steel polished bars and rods can be welded. Techniques like TIG or MIG welding are commonly used, though surface preparation is essential to maintain the polished finish and ensure strong welds.
Stainless steel polished bars and rods find extensive use in industries where both aesthetics and hygiene are paramount. In architecture and interior design, they are commonly used in railings, balustrades, and decorative trims. The food processing and pharmaceutical sectors favor polished bars for their cleanability and non-reactive surfaces. In marine applications, they provide both visual appeal and corrosion resistance, even in harsh environments. The automotive and aerospace industries utilize them in visible components where finish and strength are crucial. Their durability, sleek look, and resistance to wear and chemicals make them perfect for both functional and decorative purposes across a wide range of industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
