Chuck Metals stands out as a top manufacturer and supplier of Titanium Grade 1 Bars and Rods right here in Singapore, providing top-notch titanium products not just in Pulau Ujong but throughout the Southeast Asian region. This grade of titanium is celebrated for its remarkable corrosion resistance, impressive ductility, and excellent weldability. In fact, Titanium Grade 1 is the softest and most malleable among all commercially pure titanium grades. At Chuck Metals, we ensure our Titanium Grade 1 bars and rods meet global standards like ASTM B348, making them perfect for a variety of industries, including chemical processing, marine, medical, and aerospace. Our products are trusted for their reliability, precision, and performance, especially in critical applications where corrosion is a concern.
Titanium Grade 1 is a commercially pure titanium, boasting a minimum of 99.5% Ti, with minimal oxygen and iron content. This unique composition gives it outstanding ductility and resistance to corrosion. It has a tensile strength ranging from about 240 to 360 MPa, a yield strength of around 170 MPa, and an impressive elongation of up to 24%, with a hardness between 70 and 90 HB. It also shows excellent resistance to oxidizing agents, including chlorides and harsh marine environments. While it may not have the highest strength among titanium grades, its exceptional corrosion resistance, ease of cold forming, and weldability make it a fantastic choice for fabrication and chemical processing equipment.
| Standards : | ASTM B348, B863 / ASME SB 348, SB 863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |

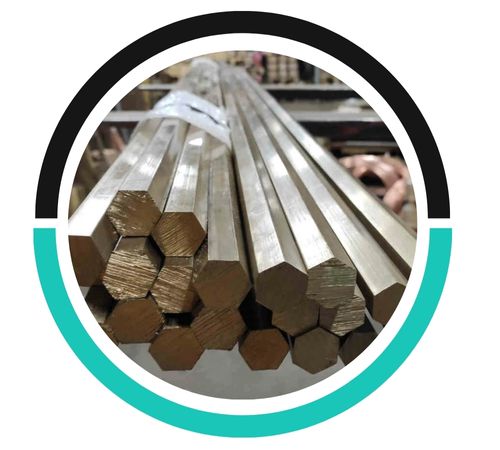

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 1 | 3.7025 | R50250 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 1 | 0.08 max | 0.03 max | 0.18 max | 0.015 max | Bal | 0.20 20 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 240 | 170 | 24 % |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.51Â g/cc | 0.163Â lb/inÂł |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 1 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@chuckmetals.com
Titanium Grade 1 Bars and Rods are commonly utilized in situations where excellent corrosion resistance and good formability are more critical than high strength. In the chemical processing sector, they find their place in reactors, heat exchangers, and piping systems that come into contact with corrosive substances. In marine settings, they are perfect for seawater systems, anodes, and desalination equipment. The medical field also benefits from this material, as it’s used in surgical instruments and implantable components due to its biocompatibility. Additionally, it plays a role in aerospace structures, power generation, and architectural elements, where long-term reliability and corrosion resistance take precedence over load-bearing capabilities.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
