Chuck Metals is a well-respected manufacturer and supplier of Titanium Grade 11 Bars and Rods based in Singapore, catering to various industries across Pulau Ujong and its neighboring areas. Titanium Grade 11 is a corrosion-resistant, commercially pure titanium alloy that’s quite similar to Grade 1, but with a slight addition of palladium (about 0.12–0.25%) to boost its resistance in reducing and mildly reducing environments. At Chuck Metals, we provide top-notch, precision-engineered Grade 11 titanium bars and rods that comply with international standards like ASTM B348. Our products are highly regarded in sectors such as chemical processing, desalination, marine, and pollution control, thanks to their outstanding durability and reliability.
Titanium Grade 11, also known as UNS R50250, consists of roughly 99.5% titanium and 0.12–0.25% palladium, along with trace elements of iron and oxygen. Its mechanical properties feature a tensile strength of around 240–370 MPa, yield strength of about 170–275 MPa, and an elongation of up to 24%, with a hardness rating of 70–90 HB. The inclusion of palladium greatly enhances its corrosion resistance, particularly in mildly reducing and acidic environments, including those with chlorides and sulfuric acid. It also boasts excellent weldability, formability, and impact resistance, making it a great choice for both fabrication and corrosive-service applications.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

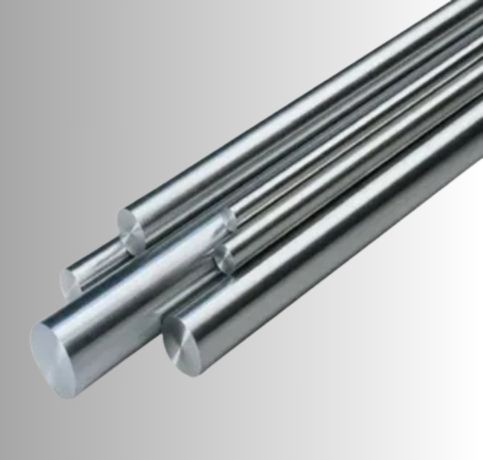

| Round bar size : | Diameter: 3-~800mm |

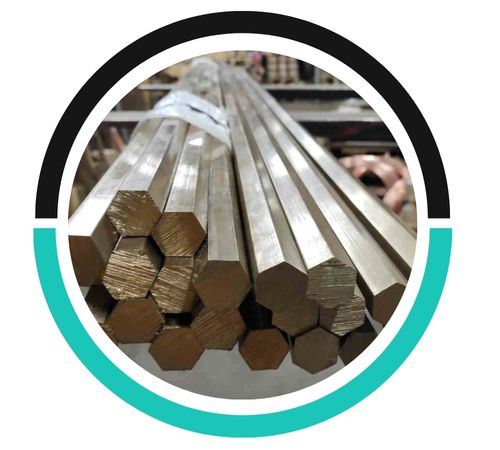

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

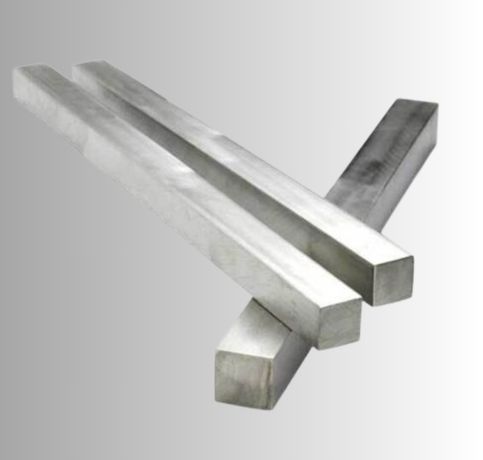

| Square bar size : | 4 to 100mm |

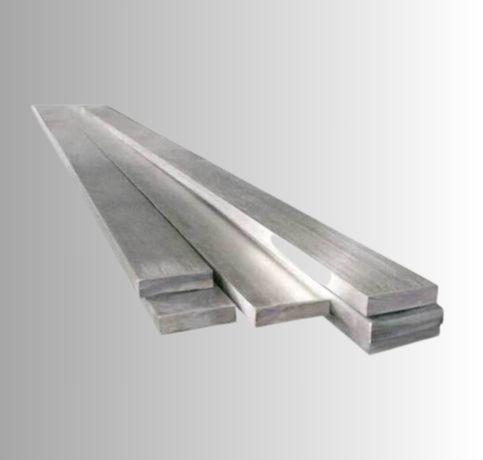

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 11 | 3.7225 | R52250 |
| Grade | C | Fe | N | Ti | H | O |
| Titanium Gr. 11 | 0.08 max | 0.20 max | 0.03 max | Balance | 0.015 max | 0.18 max |
| Density | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.163 lb/in3, (4.51 g/cm3) | 240 | 170 | 24 % |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
|---|---|---|---|---|---|---|---|---|
| Titanium Gr 11 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@chuckmetals.com
Common titanium grades for bar manufacturing include Grade 1, Grade 2, Grade 5 (Ti-6Al-4V), Grade 7, Grade 9, Grade 11, and Grade 12, each offering unique strength and corrosion resistance.
Titanium Grade 11 Bars and Rods are perfect for applications that require high corrosion resistance in harsh environments, especially where reducing agents are involved. In the chemical processing sector, they excel at handling sulfuric, hydrochloric, and nitric acids in heat exchangers, tanks, and piping systems. In marine and offshore applications, Grade 11 performs admirably in brine, seawater, and desalination plants. Additionally, it finds use in pollution control equipment, pulp and paper processing, and power generation due to its long-lasting resistance to corrosion and ease of fabrication. Its biocompatibility also allows for occasional use in medical and pharmaceutical equipment.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
