Chuck Metals is a reliable manufacturer and supplier of Titanium Grade 12 Bars and Rods based in Singapore, proudly serving a variety of industries across Pulau Ujong and the broader Southeast Asian market. Titanium Grade 12 (Ti-0.3Mo-0.8Ni) is a corrosion-resistant alloy that stands out for its excellent weldability, moderate strength, and remarkable resistance to crevice corrosion and stress corrosion cracking, particularly in hot, mildly reducing, and chloride-rich environments. At Chuck Metals, we provide precision-engineered Grade 12 bars and rods that meet international standards like ASTM B348, making them ideal for critical applications in chemical processing, marine, power generation, and industrial systems.
This titanium alloy consists of about 0.3% molybdenum, 0.8% nickel, and the rest titanium. These alloying elements enhance corrosion resistance, especially in both reducing and oxidizing environments, such as hot brines and sulfuric acid. It boasts a tensile strength of approximately 483–550 MPa, a yield strength around 345 MPa, an elongation of about 18–25%, and a hardness close to 160 HB. Grade 12 is known for its excellent weldability, moderate formability, and high corrosion resistance. Its performance is often likened to that of stainless steels and more expensive alloys, making it a cost-effective choice for demanding service environments.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |

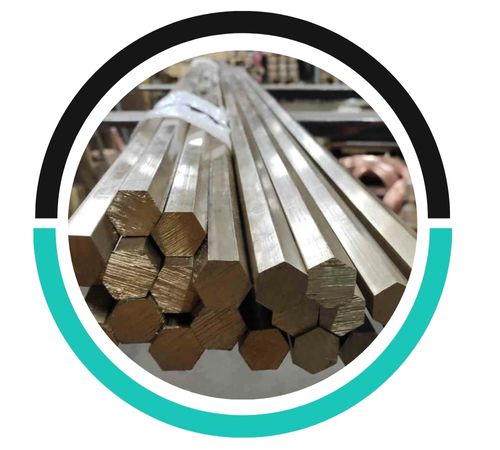

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 12 | 3.7105 | R53400 |
| Grade | C | N | O | H | Ti | Fe | Al | Pd |
| Titanium Gr 9 | .08 max | .03 max | .25 max | .015 max | Bal | 0.30 max | – | .12 – .25 |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade 12 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Density | Melting Range | Modulus of Elasticity (Tension) | Specific Heat | Mean Coefficient of Expansion | Thermal conductivity | Electrical Resistivity |
| kg/m3 | °C | GPa | J/kg. °C | x10 -6 / °C | W / m. °C | micro-ohm.m |
| 4,507 | 1668± 10 | 103 | 519 | 8.41 | 11.4 | 0.420 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Grade 12 Titanium Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Titanium Grade 12 offers excellent resistance to corrosion, especially in oxidizing and mildly reducing environments, and is highly durable in seawater and chemical processing conditions.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@chuckmetals.com
Yes, Titanium Grade 12 exhibits remarkable high-temperature resistance, making it suitable for use in power generation and industrial processes that involve elevated temperatures.
Titanium Grade 12 Bars and Rods are commonly utilized in applications that demand strong corrosion resistance, particularly in mixed or reducing media. In the chemical industry, they find use in piping, heat exchangers, tanks, and reactors that are exposed to hot acids and chlorides. In marine and desalination systems, Grade 12 excels in seawater and brine conditions. It’s also used in power plants for condenser tubing and other components that come into contact with corrosive cooling waters. Additional applications include aerospace, paper and pulp processing, and pollution control equipment, where corrosion resistance, weldability, and long-lasting durability are essential.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
