Chuck Metals stands out as a top manufacturer and supplier of Titanium Grade 3 Bars and Rods right here in Singapore, catering to industrial clients across Pulau Ujong. This grade of titanium is celebrated for its impressive strength among commercially pure options, making it a go-to choice for applications that require both structural integrity and corrosion resistance. At Chuck Metals, we take pride in offering high-quality, precision-engineered Grade 3 titanium bars and rods that meet global standards. Our dedication to reliable performance, quick delivery, and competitive pricing means we’re here to support industries like aerospace, chemical processing, marine, and medical with robust and efficient titanium solutions.
Titanium Grade 3 is a commercially pure titanium alloy (CP Ti) that boasts at least 99.2% titanium content, along with slightly elevated levels of oxygen and iron compared to Grades 1 and 2. It provides enhanced mechanical strength while still offering solid corrosion resistance. Typical mechanical properties include a tensile strength of about 485 MPa, yield strength of 345 MPa, an elongation of roughly 18%, and a hardness close to 160 HB. While it may not be as formable as Grades 1 and 2, it still possesses good weldability, making it perfect for moderate to high-strength applications in corrosive settings like chemical processing and marine systems.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

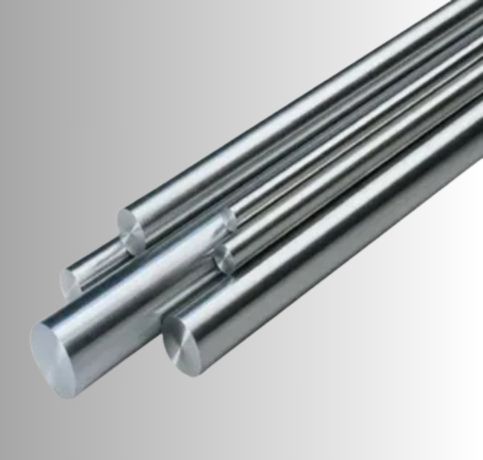

| Round bar size : | Diameter: 3-~800mm |

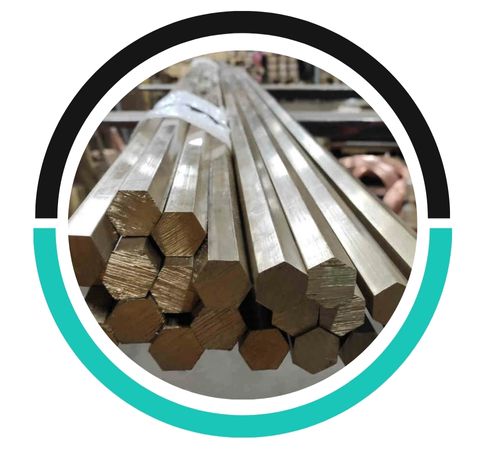

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

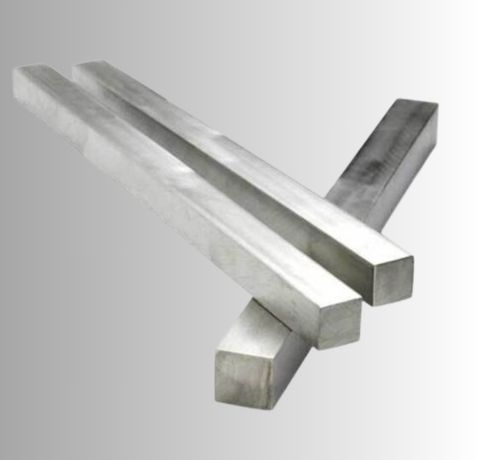

| Square bar size : | 4 to 100mm |

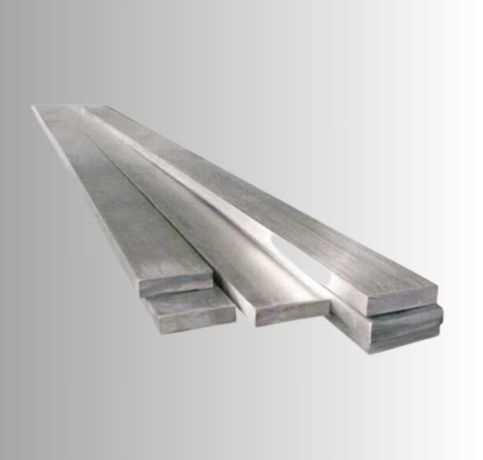

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 3 | 3.7055 | R50550 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 3 | 0..08 max | 0.05 max | 0.35 max | 0.015 max | Bal | 0.30 max |
| Tensile Strength | Reduction of area | Elongation | Hardness |
| 450 | 30 | 18 % | 90 |
| Density | 0.163 lbs/in³ ,(4.51 g/cm³) |
| Mean Coefficient of Thermal Expansion | in/in/°F (mm/m/°C): 70- 212°F (20- 100°C) 4.78 x 10-6(8.6) |
| Thermal Conductivity | BTU-in/h-ft-°F (W/m-°K): At 70°F (21°C): 138 (19.9) |
| Modulus of Elasticity, ksi (MPa) | 15.2 x 10³ (105 x 10³) in tension |
| Melting Point | 3020°F (1660°C) |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 3 Round Bars Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, Titanium Grade 3 has excellent corrosion resistance in aggressive environments like seawater, chemicals, and high-temperature settings, making it ideal for marine and chemical processing industries.
Yes, Titanium Grade 3 has good weldability, making it suitable for various applications where welding is required.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@chuckmetals.com
You’ll find Titanium Grade 3 Bars and Rods in industries that demand a blend of strength, corrosion resistance, and lightweight properties. In the chemical sector, they’re utilized for heat exchangers, pressure vessels, and piping systems that handle aggressive chemicals. In marine applications, they shine in seawater-cooled systems, offshore platforms, and desalination plants. Grade 3 is also a great fit for aerospace uses, such as airframe components and engine parts. Its biocompatibility makes it valuable for certain medical applications, and it’s also found in power generation, electrochemical systems, and pollution control equipment.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
