Chuck Metals is your go-to manufacturer and supplier of Titanium Grade 8 Bars and Rods right here in Singapore, serving industrial needs across Pulau Ujong and the nearby areas. Titanium Grade 8 is a unique alloy celebrated for its remarkable mechanical strength and outstanding corrosion resistance, especially in environments that are oxidizing or mildly reducing. At Chuck Metals, we provide precision-machined Grade 8 titanium products that meet international quality standards. With a strong emphasis on performance, durability, and timely delivery, we cater to industries like aerospace, chemical processing, and marine engineering, offering reliable solutions for demanding applications that require both structural integrity and chemical resistance.
So, what exactly is Titanium Grade 8? It’s an alloy made up of 3% aluminum, 0.1% palladium, and the rest is titanium. The inclusion of palladium really boosts its corrosion resistance, particularly in acidic and chloride-heavy environments. When it comes to mechanical properties, you can expect a tensile strength of around 620 MPa, yield strength of about 550 MPa, elongation between 14–16%, and a hardness close to 200 HB. Plus, Titanium Grade 8 is known for its good weldability and moderate formability. This alloy excels at resisting both general and crevice corrosion, especially in oxidizing acids like nitric acid, making it perfect for high-integrity applications where strength and corrosion protection are crucial.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |

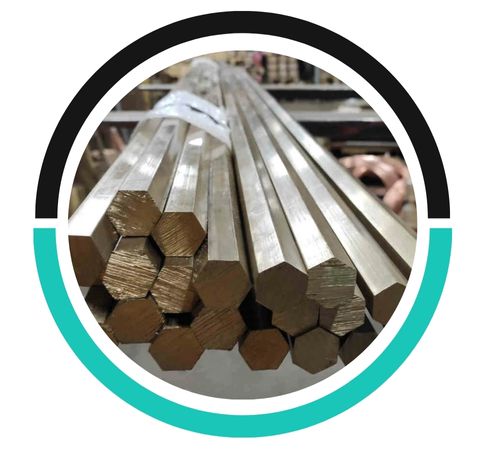

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 8 | – | R54810 |
| Grade | O | N | C | H | Fe | Al | Mo | V |
| 8Al 1Mo 1V | 0.15 | 0.05 | 0.08 | 0.0125 | 0.3 | 7.5-8.5 | 0.75-1.25 | 0.75-1.25 |
| Grade | Tensile strength (MPa) | Yield strength (MPa) | Elongation in 4D (%) | Reduction of area (%) | Hardness (HV) |
| 8Al 1Mo 1V | 1020 | 930 | 10 | 40 | 350 |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@chuckmetals.com
Titanium Grade 8 Bars and Rods offer high strength, excellent corrosion resistance, and superior performance in high-temperature environments, making them ideal for aerospace and marine applications.
Titanium Grade 8 combines 90% titanium, 6% aluminum, and 4% vanadium, offering enhanced strength and heat resistance compared to other grades, making it suitable for demanding industrial applications.
You’ll find Titanium Grade 8 Bars and Rods in various applications that demand enhanced corrosion resistance and mechanical performance. In the chemical processing sector, they’re ideal for piping systems, heat exchangers, and reactor vessels that face harsh chemical environments. In marine settings, they’re used for components in seawater systems and desalination equipment due to their resistance to localized corrosion. The aerospace industry also relies on Grade 8 for parts that need a blend of strength and corrosion resistance. Additionally, it’s useful in pollution control equipment and power generation systems.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Chuck Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Singapore, Singapore
