Chuck Metals is a reliable manufacturer and supplier of Titanium Grade 6 Bars and Rods right here in Singapore, providing top-notch products to Pulau Ujong and the surrounding industrial areas. Titanium Grade 6 (Ti-5Al-2.5Sn) is a near-alpha alloy celebrated for its impressive strength, outstanding creep resistance, and solid weldability. At Chuck Metals, we offer precision-engineered bars and rods that meet international standards, making them perfect for demanding sectors like aerospace, marine, power generation, and chemical processing. With a strong commitment to quality control, timely delivery, and technical support, we deliver titanium solutions designed for high-performance and high-temperature applications.
You’ll find Titanium Grade 6 Bars and Rods in high-performance applications that demand strength retention at elevated temperatures and resistance to harsh environments. In the aerospace sector, they’re utilized in jet engine components, airframe structures, and turbine casings. In marine and offshore industries, Grade 6 is used for parts exposed to seawater, like pump shafts and pressure housings. It’s also found in chemical processing equipment, heat exchangers, and power generation systems where corrosion resistance and high-temperature durability are vital. Thanks to its weldability and strength, it’s also a great fit for fabricated structures in advanced engineering projects.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |

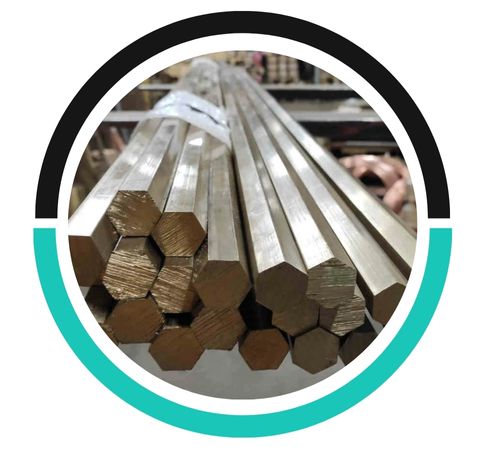

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 6 | 3.7114 | R54520 |
| Grade | C | Fe | N | Ti | H | O | Al | Sn |
| Titanium Gr. 6 | .08 max | 0.50 max | .05 max | Balance | .0175 – .020 | .20 max | 4.0 – 6.0 | 2.0 – 3.0 |
| Element | Min.Tensile(KSI) | Min.Yield(KSI) | Hardness | Tensile Modulus | Poisson’s Ratio |
| Ti Grade 6 | 50 | 40 | 14.9 | 103 GPa | 0.34-0.10 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 6 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@chuckmetals.com
Titanium Grade 6 Bars and Rods provide excellent strength-to-weight ratio, outstanding corrosion resistance, high-temperature stability, and good formability, making them ideal for high-performance applications.
Titanium Grade 6 Bars and Rods offer superior strength, corrosion resistance, and weldability, along with excellent performance in high-temperature and aggressive environments, making them suitable for critical industrial applications.
Titanium DIN 3.7114 Bars and Rods are widely used in industries that require high strength, lightweight materials, and excellent corrosion resistance. These bars and rods are commonly used in aerospace for structural components, fasteners, and engine parts due to their superior strength-to-weight ratio. In the marine industry, they are favored for their resistance to seawater corrosion in components like propellers and shafts. Additionally, Titanium Grade 6 is used in chemical processing and medical applications, including implants and surgical tools. Other industries utilizing this material include automotive, defense, and sports equipment, where durability and performance are crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
