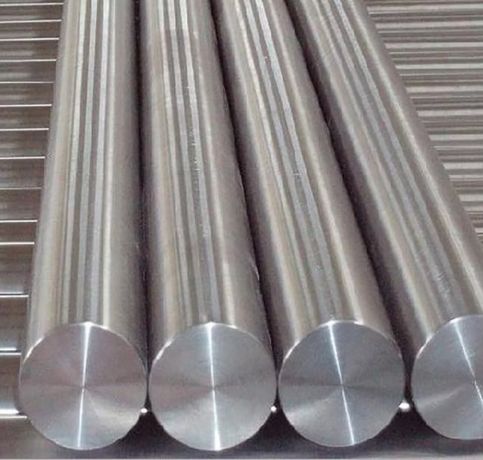

Chuck Metals is a reputable manufacturer and supplier of Monel Round Bars in Singapore, specifically in Pulau Ujong. They provide top-notch nickel-copper alloy bars that cater to a variety of industrial needs. These Monel Round Bars are celebrated for their exceptional corrosion resistance, especially in marine and chemical settings. Each bar is crafted to meet international standards and tailored to customer specifications. Chuck Metals prides itself on delivering consistent quality, precise dimensions, and timely shipments, making them a go-to source for industries that require high-performance materials capable of enduring tough and corrosive environments.
Monel Round Bars mainly consist of nickel (63–70%) and copper (28–34%), along with small amounts of iron, manganese, carbon, and silicon. They boast remarkable resistance to seawater and acidic substances, maintaining their strength across a broad temperature range. Typically, these bars show a tensile strength of 480–620 MPa, yield strength of 170–275 MPa, and an elongation rate of up to 35%, all while exhibiting excellent mechanical properties, non-magnetic characteristics, and durability in high-pressure situations.
| Specifications | : | ASTM B164 / ASTM SB164 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size | : | 5 mm To 500 mm |
| Diameter | : | 0.1 mm to 100 mm |
| Length | : | 100 mm To 3000 mm Long & Above |
| Finish | : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Tolerance | : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Form | : | Round |
| Designation | C% | Co% | Cr% | Mo% | Ni% | V% | W% | Ai% | Cu% | Nb/Cb Ta% | Ti% | Fe% | Sonstige Autres-Other % |
| – | 0.12 | – | – | – | 65.0 | – | – | – | 32.0 | – | – | 1.5 | Mn 1.0 |
| – | 0.10 | – | – | – | 43.0 | – | – | – | 53.0 | – | – | 0.75 | Si 0.25; Mn 2.25 |
| – | 0.15 | – | 52.0-57.0 | – | – | 0.05 | rest/bal | – | – | 0.50 | Mn 0.10; Si 0.10;S o.024 | ||
| – | 0.10 | – | – | – | 63.0-17.0 | – | – | 2.5-3.5 | rest/bal | – | 0.50 | 2.0 | Mn 1.5;Si 0.5; S 0.010 |
| – | 0.13 | – | – | – | 64.0 | – | – | 2.8 | 30.0 | – | 0.6 | 1.0 | Mn 0.8 |
| – | 0.15 | – | – | – | 66.0 | – | – | – | 31.0 | – | – | 1.2 | Mn 1.0; S 0.04 |
| Element | Monel |
| Density | 8.8 g/cm3 |
| Melting Point | 1350 °C (2460 °F) |
| Tensile Strength | Psi – 80,000 , MPa – 550 |
| Yield Strength (0.2%Offset) | Psi – 35,000 , MPa – 240 |
| Elongation | 40 % |
| Size | kilogram / Meter | kilogram / Foot | Size | kilogram / Meter | kilogram / Foot | Size | kilogram / Meter | kilogram / Foot |
|---|---|---|---|---|---|---|---|---|
| 1/8″ | 0.062 | 0.019 | 22 millimeter | 2.979 | 0.908 | 3 to 1/4″ | 41.996 | 12.800 |
| 3 millimeter | 0.055 | 0.017 | 20 millimeter | 2.470 | 0.753 | 3″ | 35.762 | 10.900 |
| 4 millimeter | 0.098 | 0.030 | 24 millimeter | 3.543 | 1.080 | 3 to 3/4″ | 55.780 | 17.001 |
| 5/32″ | 0.095 | 0.029 | 7/8″ | 3.038 | 0.926 | 3 to 1/2″ | 48.772 | 14.850 |
| 5 millimeter | 0.154 | 0.047 | 1″ | 3.970 | 1.210 | 4 to 1/4″ | 72.249 | 21.908 |
| 3/16″ | 0.141 | 0.043 | 25 millimeter | 3.871 | 1.180 | 4″ | 63.340 | 19.306 |
| 6 millimeter | 0.223 | 0.068 | 27 millimeter | 4.490 | 1.368 | 4 to 3/4″ | 90.249 | 27.366 |
| 7/32″ | 0.190 | 0.058 | 26 millimeter | 4.170 | 1.271 | 4 to 1/2″ | 80.340 | 24.4487 |
| 7 millimeter | 0.298 | 0.091 | 30 millimeter | 5.548 | 1.691 | 5 to 1/2″ | 121.000 | 36.690 |
| 1/4″ | 0.249 | 0.076 | 1 to 1/8″ | 5.033 | 1.534 | 5″ | 99.940 | 30.461 |
| 8 millimeter | 0.398 | 0.120 | 32 millimeter | 6.314 | 1.894 | 6 to 1/2″ | 167.630 | 51.093 |
| 5/16″ | 0.387 | 0.118 | 1 to 1/4″ | 6.349 | 1.924 | 6″ | 143.900 | 43.860 |
| 3/8″ | 0.557 | 0.170 | 35 millimeter | 7.553 | 2.390 | 7 to 1/2″ | 225.000 | 68.226 |
| 9 millimeter | 0.498 | 0.152 | 1 to 3/8″ | 7.550 | 2.303 | 7″ | 196.000 | 59.432 |
| 11 millimeter | 0.748 | 0.228 | 38 millimeter | 8.903 | 2.792 | 10″ | 397.140 | 121.048 |
| 10 millimeter | 0.620 | 0.189 | 36 millimeter | 7.999 | 2.438 | 8″ | 254.55 | 77.586 |
| 12 millimeter | 0.889 | 0.271 | 40 millimeter | 9.872 | 3.009 | |||
| 7/16″ | 0.761 | 0.232 | 1 to 1/2″ | 8.951 | 2.715 | |||
| 13 millimeter | 1.043 | 0.318 | 1 to 3/4″ | 12.179 | 3.712 | |||
| 1/2″ | 0.994 | 0.303 | 1 to 5/8″ | 10.449 | 3.200 | |||
| 9/16″ | 1.256 | 0.383 | 1 to 7/8″ | 13.977 | 4.260 | |||
| 14 millimeter | 1.207 | 0.368 | 45 millimeter | 12.555 | 3.807 | |||
| 5/8″ | 1.551 | 0.473 | 50 millimeter | 15.414 | 4.698 | |||
| 15 millimeter | 1.391 | 0.424 | 48 millimeter | 14.205 | 4.330 | |||
| 17 millimeter | 1.791 | 0.543 | 2 to 1/8″ | 17.963 | 5.475 | |||
| 16 millimeter | 1.578 | 0.481 | 2″ | 15.906 | 4.848 | |||
| 18 millimeter | 2.001 | 0.610 | 60 millimeter | 22.205 | 6.768 | |||
| 11/16″ | 1.880 | 0.573 | 2 to 1/4″ | 20.128 | 6.135 | |||
| 3/4″ | 2.237 | 0.682 | 2 to 3/8″ | 22.435 | 6.838 | |||
| 2 to 1/2″ | 24.856 | 7.576 | ||||||
| 2 to 5/8″ | 27.409 | 8.354 | ||||||
| 2 to 3/4″ | 30.083 | 9.169 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@chuckmetals.com
Monel Round Bars are widely used in marine, chemical processing, and aerospace industries for components that require excellent corrosion resistance and high strength in extreme environments.
Yes, Monel Round Bars can be heat treated to improve their mechanical properties, such as strength and hardness, making them suitable for high-performance applications.
These round bars find extensive use in marine engineering, including applications like propeller shafts, pump components, and seawater valves, thanks to their corrosion-resistant nature. In the chemical and petrochemical sectors, they are perfect for heat exchangers, processing vessels, and piping systems that come into contact with aggressive media. The oil and gas industry, along with aerospace and automotive sectors, also rely on Monel Round Bars for their strength, resistance to corrosive environments, and ability to handle extreme temperatures and pressures.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Chuck Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Singapore, Singapore
