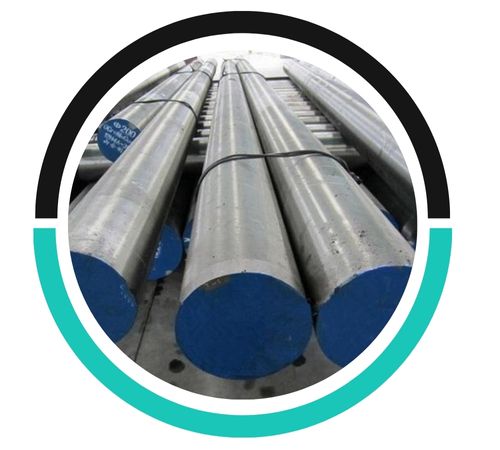

Chuck Metals is a leading manufacturer and supplier in Singapore, Singapore, specializing in producing and distributing high-quality metals for several industrial applications. With a commitment to excellence, the company can provide a very wide range of premium materials, including Tool and Die Steel S1 Bars. Known for durability, precision, and excellent performance, these S1 bars can be used to make dies, molds, and tools in automobile, aerospace, and engineering. Chuck Metals has been proud of reliable, customized solutions to ensure the best possible delivery to every client.
Tool and Die steel S1 Bars are notably used in the manufacture of top-tier tools, dies, and molds owing to their superior hardness, wearability, and exceptional high-temperature characteristics. These are perfect materials for stamping dies, shear blades, punching tools, and dies applied in the automotive, aerospace, and engineering industries. The S1 bars are also utilized to construct cold work tools that call for high toughness and thermal cycling resistance. In addition, these steels are brought into use in applications that need precision and durability, such as manufacturing machines, machining tools, and components exposed to high stress and wear.
| C | Mn | Si | Cr | Ni | Mo | W | V | Cu | P | S |
| 0.40-0.55 | 0.10-0.40 | 0.15-1.20 | 1.00-1.80 | 0.30 | 0.50 | 1.50-3.00 | 0.15-0.30 | 0.25 | 0.03 | 0.03 |
| Properties | Metric | Imperial |
|---|---|---|
| Hardness, Rockwell C (air cooled from 899°C, 30 mins) | 54.5 | 54.5 |
| 56 | 56 | |
| Hardness, Rockwell C (air cooled from 982°C, 30 mins) | 56.5 | 56.5 |
| Modulus of elasticity | 207 GPa | 30000 ksi |
| Charpy impact (V-notch; oil quenched from 954°C; 149°C temper temperature) | 10.8 J | 8.00 ft-lb |
| Charpy impact (V-notch; oil quenched from 954°C; 625°C temper temperature) | 29.8 J | 22.0 ft-lb |
| Machinability (1% carbon steel) | 70.0 – 75.0% | 70.0 – 75.0% |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| AISI / SAE | DIN / W.Nr | UNS | JIS | GB | AFNOR |
| S1 | 1.2550 | T41901 | G4053 | GB/T 3077 | 55 WC 20 |
| Properties | Conditions | ||
|---|---|---|---|
| T (°C) | Treatment | ||
| Thermal expansion | 12.4 x 10-6/ºC | 20-100 | – |
When choosing Tool and Die Steel S1 bars, consider hardness, wear resistance, toughness, machinability, heat treatment capabilities, and the specific requirements of the application to ensure optimal performance and durability.
Tool and Die Steel S1 bars resist corrosion due to their alloy composition, which includes elements like chromium and molybdenum. These elements form a protective oxide layer, enhancing resistance to oxidation and rust.
Tool and Die Steel A2 Bars, are specifically used for making cold work tools, dies, and molds. A2 steel is also known for its wear resistance, toughness, and dimensional stability characteristics, making it suitable for punching, blanking, and forming die fabrication. Its high strength along with significant abrasion resistance also aids in using it for cutting, drilling, and shaping tool applications. This is air-hardening and remains sharp on the edges, thus well-suited for applications related to precise tools and intricate designs. Applications such as gauges, blades, and fixture typically require durability and performance, and A2 steel bars are applied for that purpose.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
