Chuck Metals stands out as a top manufacturer and supplier in Singapore, specifically on Pulau Ujong, where we specialize in high-quality Invar 36 Bars and Rods. These products are famous for their incredibly low coefficient of thermal expansion, making them perfect for high-precision applications that demand dimensional stability. Crafted to meet rigorous international standards, our Invar 36 Bars and Rods are tailored for challenging industries like aerospace, cryogenics, instrumentation, and electronics. With a strong commitment to quality, durability, and timely delivery, Chuck Metals guarantees that every product aligns with the precise specifications our clients expect around the globe.
Invar 36 Bars and Rods are made up of roughly 36% nickel and 64% iron, along with trace amounts of carbon, manganese, and silicon. This unique blend ensures remarkable stability across a broad temperature range. On the mechanical side, Invar 36 boasts a tensile strength of about 490 MPa, a yield strength of around 240 MPa, and an elongation of 35%, which means it’s both tough and flexible. Its exceptional dimensional stability makes it a go-to choice for precision manufacturing and applications where minimizing thermal expansion is crucial.
| Standards : | ASTM F1684, ASME SF1684 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

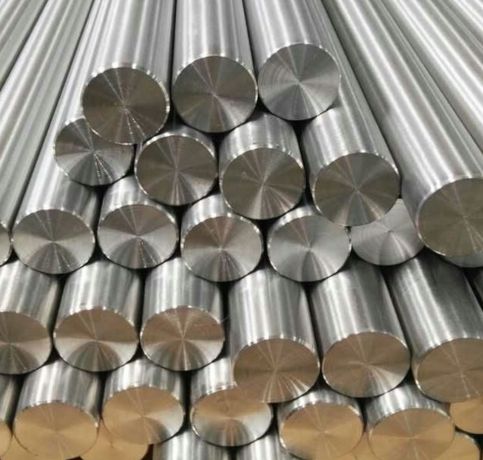

| Round bar size : | Diameter: 3-~800mm |

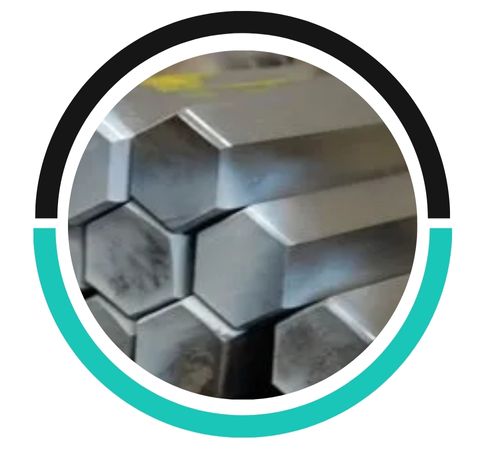

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

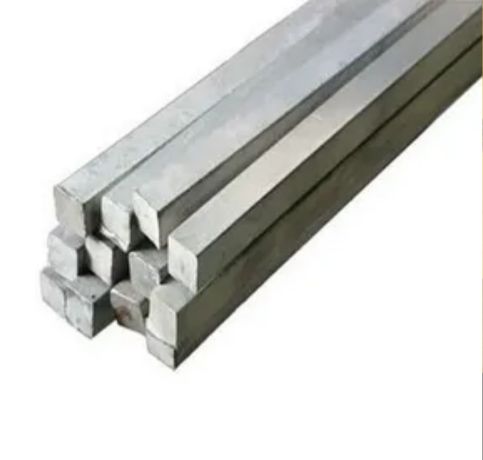

| Square bar size : | 4 to 100mm |

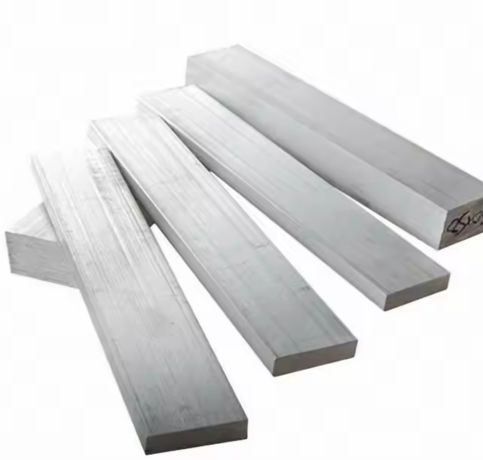

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |

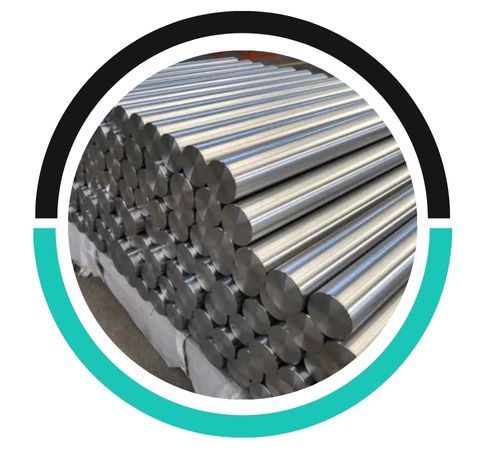

| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | C | Mn | Si | S | Fe | Ni | Cr | P | Mo | Co |
| Invar 36 | 0.10 max | 0.06 max | 0.35 max | 0.025 max | Rem | 35-38 | 0.50 max | 0.025 max | 0.50 max | 1.0 max |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Psi – 71,000 , MPa – 490 | Psi – 35,000 , MPa – 240 | 42 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Invar 36 | 1.3912 | K93600 |
Yes, Invar 36 bar and rod can be welded, but it requires special care due to its low expansion properties. Proper welding techniques, such as TIG or MIG, are recommended.
Yes, specific welding consumables for Invar 36 bar and rod include Invar 36 electrodes, TIG rods, and MIG wires. These materials ensure proper fusion and minimize thermal expansion issues during welding.
Invar 36 rod, primarily composed of iron and nickel, is not highly susceptible to galvanic corrosion. However, when exposed to more noble metals in corrosive environments, it can experience some galvanic effects.
These Invar 36 Bars and Rods find extensive use in industries that require high precision despite temperature fluctuations. They’re perfect for aerospace tooling, composite molding, and structural components in aircraft. In the electronics sector, they’re utilized for shadow masks, CRTs, and semiconductor manufacturing equipment. Scientific research facilities rely on them for cryogenic vessels, optical devices, and laser systems. Additionally, they’re used in precision measurement instruments, molds for carbon fiber production, and any application where consistent performance across temperature changes is vital.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
