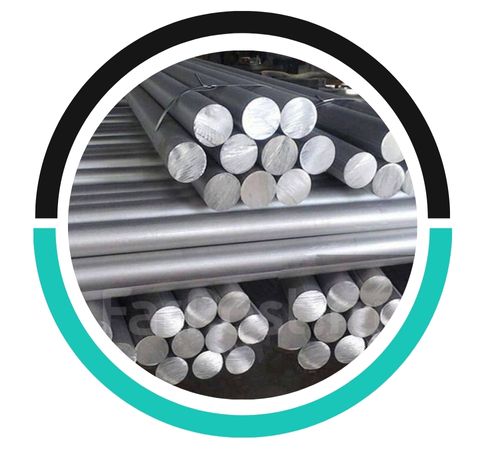

High Speed Steel M35 Bars

Chuck Metals stands out as a trusted manufacturer and supplier based in Singapore, Pulau Ujong, specializing in top-notch High Speed Steel M35 Bars. These bars are known for their remarkable hardness, toughness, and red-hardness properties, making them a step up from M2 steel thanks to the addition of cobalt, which enhances heat resistance and cutting performance. Chuck Metals’ M35 HSS Bars are celebrated for their durability and consistent quality, making them a go-to choice in industries that demand precision tooling and high-speed machining. With rigorous quality control and precise dimensional accuracy, these bars deliver optimal performance even in the most challenging manufacturing settings.

ASTM A600 M35 High Speed Steel Round Bar Dealer in Sengkang, M35 Alloy High Speed Steel Bars Manufacturer in Singapore, POWMEX M35 High Speed Steel Bars Supplier in Singapore, High Speed Steel 1.3243 Bars Price List in Singapore, High Speed Steel M35 Hardened and Tempered Round Bar Supplier in Queenstown, M35 HSS Bar Size Chart, ASME SA600 HSS M35 Hot Forged Bars Price List in Clementi, High Speed Steel M35 Industrial Bars Stockist in Singapore.

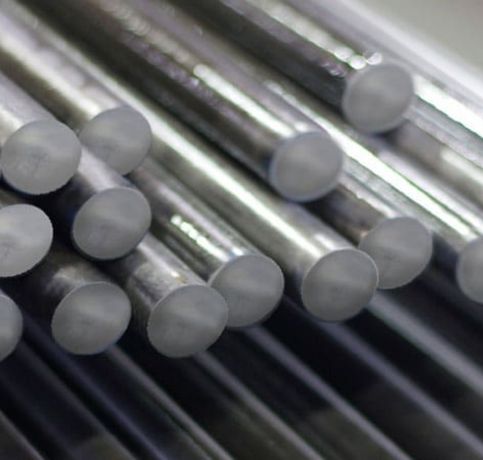

M35 Alloy High Speed Steel Bar

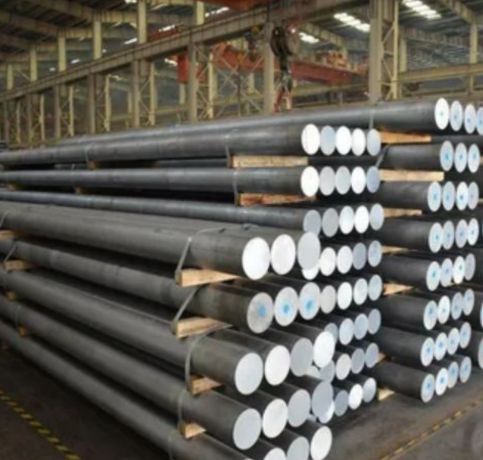

High Speed Steel M35 Round Rod

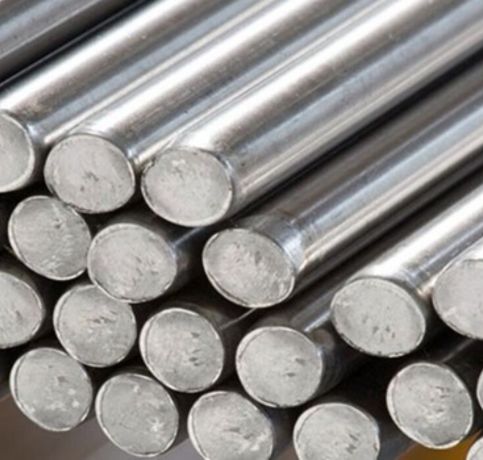

HSS M35 Bars

What is High Speed Steel M35 Bars ?

The composition of High Speed Steel M35 Bars includes around 0.85% carbon, 4% chromium, 5% molybdenum, 6% tungsten, 2% vanadium, and 5% cobalt. This cobalt infusion significantly boosts red hardness and wear resistance, allowing for outstanding performance at high cutting speeds and temperatures. These bars can be heat treated to reach hardness levels of 64–66 HRC, ensuring excellent edge retention and tool longevity. The well-balanced alloy composition also enhances toughness, minimizing the risk of chipping during use.

M35 Tungsten Alloy High Speed Steel Hot Rolled Round Bars Exporter in Singapore, M35 High Speed Steel Bars Stockist in Singapore, Carbon High Speed Steel M35 Bars Supplier in Singapore, High Speed Steel M35 Bars Distributor in Clementi, M35 High Speed Steel Round Bar Stockist Queenstown, High Speed Steel Round Rods M35 Price in Queenstown, HSS M35 Rods Price List, High Speed Steel M35 Round Rod Supplier in Clementi, High Speed Steel 1.3243 Round Bar Manufacturer in Singapore

High Speed Steel M35 Bars Specifications

Standard : ASTM A600, ASME SA600
Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI
Form : Round
Diameter : 2mm to 100mm depending on grades
Length : 100 mm to 10,000 mm
Surface Condition : Black, Grinded, Turned Bright, Machined Proof
Application : Lathe Tools, Milling Cutter, Cutter Blades, Boring Tools, Twist drills, Milling Knives, Reamers, Taps, Metalcutting saws, Screw Cutting Tools, File Cutter’s Chissels, Drills, Hobs, Drill Bits, Tread cutting tools etc

Chemical Compositions of High Speed Steel M35 Bars

ASTM A600	C		Mn		P	S	Si		Cr		V		Mo		W		Co
M35	0.82	0.95	0.15	0.40	0.03	0.03	0.20	0.45	3.80	4.50	1.75	2.15	4.75	5.25	5.50	6.50	4.60	5.00
DIN ISO 4957	C		Mn		P	S	Si		Cr		V		Mo		W		Co
1.3243/HS6-5-2-5	0.87	0.95	…	0.40	0.03	0.03	…	0.45	3.80	4.50	1.70	2.10	4.70	5.20	5.90	6.70	4.50	5.00
JIS G4403	C		Mn		P	S	Si		Cr		V		Mo		W		Co
SKH55	0.87	0.95	…	0.40	0.03	0.03	…	0.45	3.80	4.50	1.70	2.10	4.70	5.20	5.90	6.70	4.50	5.00

Mechanical Properties of High Speed Steel M35 Bars

Temperature °C / °F
20 / 70		400 / 750	600 / 1110
Density	Kg/m³ lbs/in³	8150 .294	8050 .290	7990 .228
Modulus of Elasticity	kN/mm³² psi	230 34 · 10 6	205 31 · 10 6	184 27 · 10 6
Coefficient of Thermanl expansion from 20°C / 70°F	per °C per °F	–	11.6 · 10-6 6.4 · 10-6	11.9 · 10-6 6.6 · 10-6
Thermal Conductivity	W/m °C Btu/sq. ft. h °F/in.	24 166	28 194	27 187
Specific Heat	J/kg °C Btu/lb °F	420 0.10	510 0.12	600 0.14

You Need Our Support, to Have Any Projects?

Test Certificate

Why Chuck Metals?

Packaging

Equivalent Grades of High Speed Steel M35 Bars

Country	USA	German	Japan
Standard	ASTM A600	DIN EN ISO 4957	JIS G4403
Grades	M35	1.3243/HS6-5-2-5	SKH55

Thermal Properties of High Speed Steel M35 Bars

Thermal properties	Metric	Imperial
CTE, linear (@21 – 399°C / 69.8 – 750°F)	11.4 μm/m°C	6.33 μin/in°F
CTE, linear (@21 – 593°C /69.8 – 1100°F)	11.5 μm/m°C	6.39 μin/in°F

M35 High Speed Steel Bar Standard Sizes

Type	SIZES (mm)	SIZES (Inches)	ISO Tolerance
Cold Drawn and Ground	10.00 – 75.00	5/6″ – 2.50″	h8-h9-h10-h11
Peeled and Polished	40.00 – 150.00	1.50″ – 6.00″	h11, h11-DIN 1013
Peeled and Ground	20.00 – 50.00	3/4″ – 2.00″	h9-h10-h11
Cold Drawn and Polish	3.00 – 75.00	1/8″ – 3.00″	h8-h9-h10-h11

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

High Speed Steel M35 Bars Types

Stockist of High Speed Steel M35 Round Bar in Singapore, High Speed Steel M35 Rods Supplier in Singapore, Molybdenum High Speed Steel T11335 Bright Round Bar Price List in Singapore, High Speed Steel M35 Threaded Bar Supplier in Singapore, Cold Work High Speed Steel M35 Round Rod Exporter in Sengkang, Carbon HSS M35 Round Bars And Rods Exporter in Singapore, High Speed Steel UNS T11335 Round Rod Manufacturer in Queenstown, HSS M35 Round Bars Distributor in Singapore, POWMEX M35 High Speed Steel Bar Dealer in Sengkang

Frequently Asked Questions (FAQ)

Can High-speed Steel M35 Be Welded

Yes, High-Speed Steel M35 can be welded, but it requires careful control of heat and preheating. Post-weld heat treatment is often necessary to restore its hardness and performance.

Are High-Speed Steel M35 Bars Customizable?

Yes, High-Speed Steel M35 bars can be customized in terms of dimensions, shape, and surface finish. Machining and heat treatment processes can also be tailored to meet specific performance requirements.

How Should High-speed Steel M35 Bars Be Stored?

High-Speed Steel M35 bars should be stored in a dry, cool environment, away from moisture and extreme temperatures. They should be kept on racks to prevent contact with corrosive materials.

High Speed Steel M35 Bars Uses

High Speed Steel M35 Bars are extensively utilized in crafting high-performance cutting tools like drills, end mills, taps, reamers, and saw blades. Their ability to endure high operating temperatures without sacrificing hardness makes them perfect for machining tough materials such as stainless steel, titanium alloys, and heat-resistant superalloys. Industries such as aerospace, automotive, shipbuilding, and precision engineering depend on M35 HSS Bars for efficient, accurate, and durable tooling solutions, whether for heavy-duty tasks or high-speed applications.
