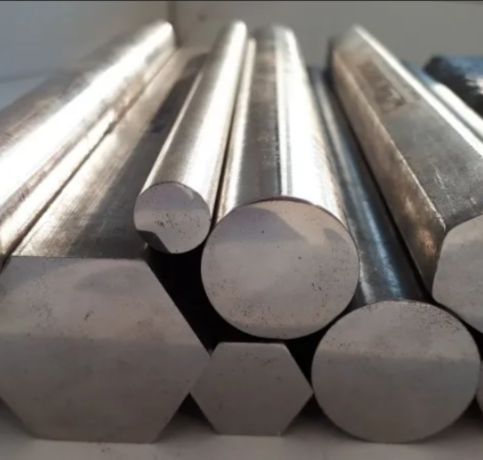

Chuck Metals is a reliable manufacturer and supplier of top-notch Nickel Alloy HEX Bars based in Singapore, Pulau Ujong. We cater to clients across essential industries, providing high-performance metal solutions. Our hexagonal bars are designed to resist corrosion, oxidation, and thermal fatigue, making them perfect for extreme service conditions. Built to comply with international standards like ASTM, ASME, and DIN, these bars deliver exceptional durability, strength, and precise dimensions. With a wide range of stock and custom sizing options, Chuck Metals guarantees quick delivery and consistent quality for applications in aerospace, marine, chemical processing, and power generation.
Nickel Alloy HEX Bars are mainly made up of nickel (often 70% or more), along with varying amounts of chromium, molybdenum, iron, and other elements based on the specific grade (like Inconel, Monel, or Hastelloy). These alloys boast impressive mechanical strength, with a tensile strength ranging from 550 to 850 MPa, and high yield strength combined with excellent ductility. They maintain their mechanical properties even at cryogenic and elevated temperatures. Their remarkable corrosion resistance, especially in both reducing and oxidizing environments, makes them ideal for demanding chemical processing, offshore engineering, and heat-exposed structural components.
| Grade | Nickel 201 |
|---|---|
| Specification | UNS N02201, ASME SB160/ASTM B160 |
| Round bar size | Dia: 3mm~800mm |
| Hollow Bar | 32 OD x 16 ID to 250 OD x 200 ID |
| Square bar size | 4mm to 100mm |
| Hex Bar size | 2mm to 100mm A/F |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Billet Size | 1/2″ to 495mm Diameter |
| Channel Bar | 80 x 40 to 150 x 75mm section; 5 to 6mm thickness |
| Flat bar size | Thickness: 2mm to 100mm |
| Width: 10mm to 500mm | |
| Hollow Bar | 32mm Outside Diameter x 16mm Inside Diameter to 250mm Outside Diameter x 200mm Inside Diameter) |
| Angle bar size | 3*20*20~12*100*100 |
| Form | Rings, Hollow, Flat Bar, Rectangle, Triangle, Square,Rod, Half Round Bar, T-Bar, Hex (A/F), Precision Ground Bar, Round, Channel Bar, Blocks, Round Rod, Threaded, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Tolerance | H8, K12, H10, H11, K10, H9, K11, K9, H12, H13, or custom |
| Technique | Forged Round Bar, Rod, Hot Rolled, Cold Drawn, Cold Rolled, |
| Condition | annealed, Hardened and tempered |
| Surface | Polished, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Bright, Hairline |
|
Grade |
Fe |
Si |
C |
S |
Ni |
Mn |
Mg |
Cu |
Ti |
|---|---|---|---|---|---|---|---|---|---|
|
Nickel 201 |
0.4 max |
0.2 max |
0.02 max |
0.01 max |
99.0 min |
0.35 max |
0.15 max |
0.25 max |
0.1 max |
|
Density |
Elongation |
Tensile Strength |
Melting Point |
Yield Strength (0.2%Offset) |
|---|---|---|---|---|
|
8.9 g/cm3 |
45 % |
Psi – 67000 , MPa – 462 |
1446 °C (2635 °F) |
Psi – 21500 , MPa – 148 |
|
STANDARD |
UNS |
WERKSTOFF NR. |
AFNOR |
GOST |
BS |
JIS |
EN |
|---|---|---|---|---|---|---|---|
|
Nickel 201 |
N02201 |
2.4068 |
– |
НП-2 |
NA 12 |
NW 2201 |
NLC-Ni 99 |
Type | SIZES (Inches) | ISO Tolerance | SIZES (mm) |
|---|---|---|---|
Peeled and Polished | 1.50″ to 6.00″ | h11-DIN 1013 | 40.00 to 150.00 |
Cold Drawn and Ground | 5/6″ to 2.50″ | h9-h8-h11-h10 | 10.00 to 75.00 |
Cold Drawn and Polish | 1/8″ to 3.00″ | h9-h8-h11-h10 | 3.00 to 75.00 |
Peeled and Ground | 3/4″ to 2.00″ | h10-h9-h11 | 20.00 to 50.00 |
Cut to size on request (tolerance +2/-0 mm).
50.0 | 6.0 |
45.0 | 5.0 |
60.0 | 8.0 |
55.0 | 7.0 |
70.0 | 10.0 |
65.0 | 9.0 |
75.0 | 12.0 |
90.0 | 20.0 |
80.0 | 16.0 |
100.0 | 25.0 |
160.0 | 35.0 |
130.0 | 30.0 |
200.0 | 40.0 |
Nickel Alloy HEX Bars find extensive use in industries where resistance to extreme temperatures, pressure, and corrosion is vital. Common applications include parts for chemical processing plants, heat exchangers, nuclear reactors, aerospace engines, and marine hardware. Their hexagonal shape enhances grip, making them perfect for creating fasteners, valve components, shafts, and precision-machined parts. In oil and gas operations, they are built to endure harsh sour gas environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
