Chuck Metals stands out as a top manufacturer and supplier of Nimonic 115 Bars and Rods in Singapore, Pulau Ujong. They specialize in delivering high-performance superalloys that are built to thrive in extreme temperatures and pressures. With a strong reputation for quality and precision, Chuck Metals offers Nimonic 115 products that boast remarkable strength, creep resistance, and oxidation resistance, even at elevated temperatures. These bars and rods are perfect for the demanding needs of aerospace and turbine engine applications. Committed to customer satisfaction, technical compliance, and timely delivery, Chuck Metals has become a trusted source for essential Nimonic 115 components in high-stress industries.
Nimonic 115 Bars and Rods primarily consist of nickel (about 55–60%) and cobalt (14–16%), along with notable amounts of chromium (14–16%), molybdenum, aluminum, and titanium. This precipitation-hardened alloy excels in high-temperature performance, showcasing excellent resistance to oxidation and creep up to 1000°C. After heat treatment, it achieves a tensile strength of over 1100 MPa. The alloy’s meticulously designed composition guarantees long-lasting mechanical stability, even under severe thermal and mechanical stress, making it ideal for the toughest conditions in aerospace and power generation.
| Grade | Nimonic 115 – UNS |
|---|---|
| Standard | ASTM, ASME, API, GB, AISI, DIN, EN, SUS, UNS |

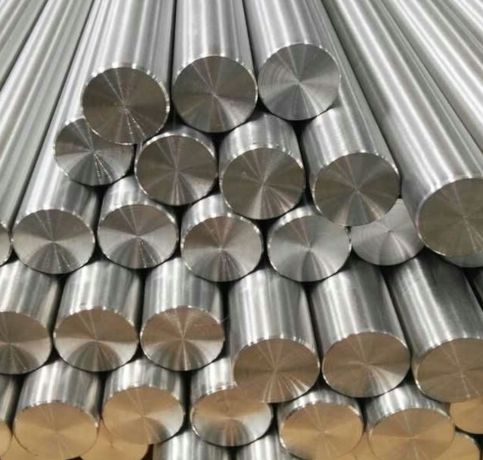

| Nimonic 115 Round bar size | Diameter: 3mm~800mm |
| Nimonic 115 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

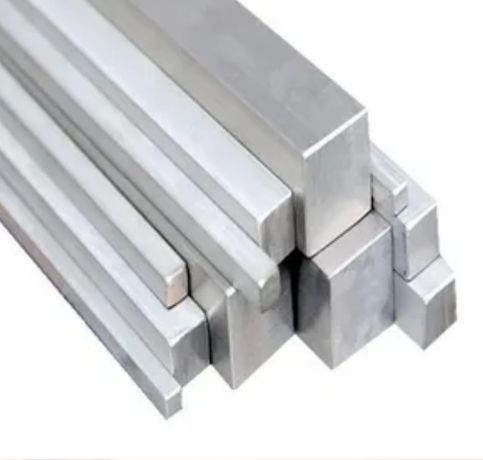

| Nimonic 115 Square bar size | 4mm*4mm~100mm*100mm |
| Nimonic 115 Flat bar size | Thickness: 2mm~100mm |
| Width: 10mm~500mm | |
| Nimonic 115 Hex Bar size | 2mm~100mm |
| Nimonic 115 Billet Size | 1/2″ to 495mm Diameter |

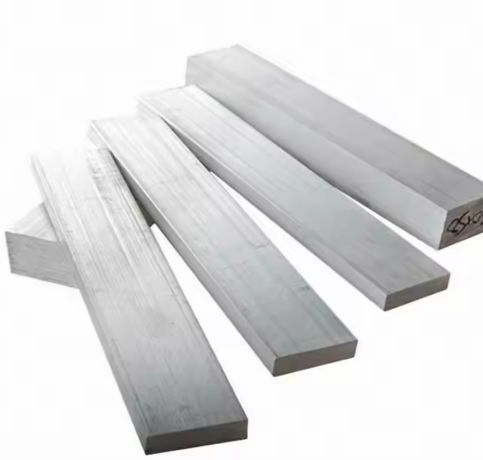

| Nimonic 115 Rectangles Size | 33mm x 30mm to 295mm x 1066mm |
| LENGTHS | 12 RANDOM LENGTHS AND LONG BARS:15 20 RANDOM LENGTHS |
| Nimonic 115 Round Bar Standard Dimensions | Diameter / Height:As the customer required |
| Finish | Bright, Polish, Bright, Rough Turned, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Condition | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar |
| Technique | Nimonic 115 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |
| Form | Round, Rod, Precision Ground Bar, Square, Round Rod, Hollow, Hex (A/F), Triangle, Rectangle, Threaded, T-Bar, Half Round Bar, Flat Bar, Rings, Blocks, Billet, Ingot, I/H Bar, Angle, Channel Bar, Profiles, Forging Etc. |
| Element | Content (%) |
|---|---|
| Nickel, Ni | 54 |
| Chromium, Cr | 14.0-16.0 |
| Cobalt, Co | 13.0-15.5 |
| Aluminum, Al | 4.50-5.50 |
| Molybdenum, Mo | 3.0-5.0 |
| Titanium, Ti | 3.50-4.50 |
| Iron, Fe | 1.0 |
| Manganese, Mn | 1.0 |
| Silicon, Si | 1.0 |
| Copper, Cu | 0.20 |
| Zirconium, Zr | 0.15 |
| Carbon, C | 0.12-0.20 |
| Sulfur, S | 0.015 |
| Boron, B | 0.010-0.025 |
| Tensile Strength | Min 185KSI | Min 1277MPA |
| Yield Strength | Min 141KSI | MIN 973MPA |
| Elongation | Min 38% |
| Alloy Name | Trade Name | UNS No. | British Specs | American Specs | German Specs | French Specs |
|---|---|---|---|---|---|---|
| Alloy 115 | Nimonic 115 | BS HR4 | WS 2.4636 | AFNOR NCK 15ATD |
Nimonic 115 rods are available in sizes ranging from 1/8" to 4" diameter. Finishes include cold drawn, polished, and rough turned, suitable for high-temperature applications.
Nimonic 115 rods typically come in standard sizes ranging from 1/8" to 6" in diameter, with lengths varying from 3' to 20' depending on the manufacturer and customer specifications.
Yes, Nimonic 115 rods can be supplied in both polished and matte finishes, depending on the specific requirements and customer preferences. These finishes are available from various suppliers.
These Nimonic 115 Bars and Rods find extensive use in high-temperature applications, including turbine discs, blades, and combustion chamber components in jet engines and land-based gas turbines. Their outstanding strength and oxidation resistance also make them suitable for nuclear reactors and advanced heat-resistant structures. Engineered to uphold mechanical integrity in harsh thermal environments, these bars and rods ensure long-term reliability and safety. Industries that demand consistent performance under extreme heat and pressure depend on Nimonic 115 for mission-critical components where failure simply isn’t an option.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
