Chuck Metals is a reputable manufacturer and supplier of Aluminium 6101 T6 Bars and Rods based in Singapore, Pulau Ujong. They provide high-performance aluminium solutions tailored for industries that require exceptional electrical conductivity and strength. The Aluminium 6101 T6 bars and rods are popular choices for electrical and structural applications, thanks to their impressive combination of mechanical strength and conductive properties. Chuck Metals is committed to delivering precision-engineered products that meet global standards, ensuring consistent quality and dependable service for clients in power distribution, construction, and various industrial sectors.
These Aluminium 6101 T6 Bars and Rods are mainly made of aluminium, with small amounts of magnesium (0.35–0.8%) and silicon (0.3–0.7%) added to boost both strength and conductivity. The T6 temper signifies that the material has undergone solution heat treatment and artificial aging, resulting in a tensile strength of about 190 MPa and a yield strength of around 160 MPa. These bars excel in conductivity—typically ranging from 43% to 52% IACS—and offer good corrosion resistance, making them perfect for both indoor and outdoor electrical infrastructure applications.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |

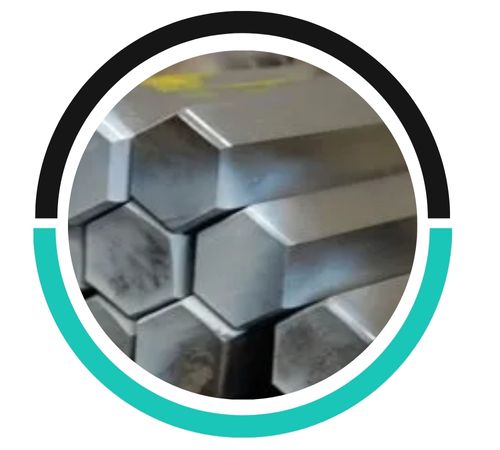

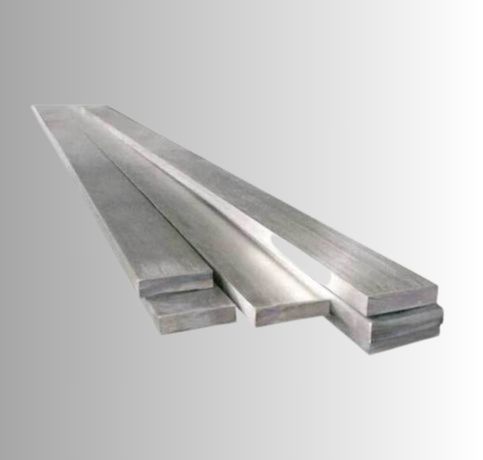

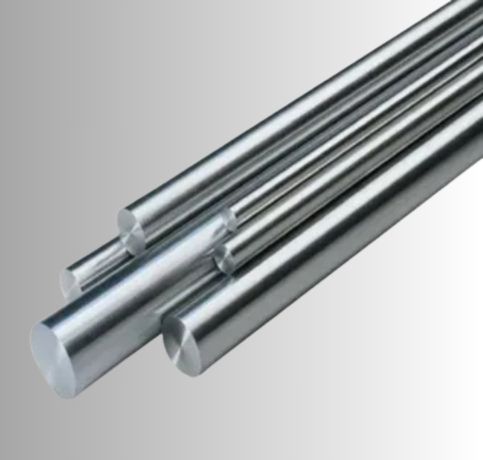

| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |
| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |

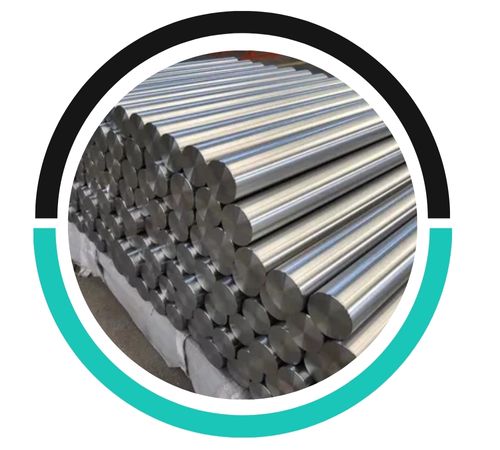

| Aluminium Bar | Bright, Polish & Black |
| Aluminum, Al | Magnesium, Mg | Silicon, Si |
|---|---|---|
| 98.9 | 0.60 | 0.50 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 97 MPa | 14069 psi |
| Yield strength | 76 MPa | 11023 psi |
| Elastic modulus | 70-80 GPa | 10153-11603 ksi |
| Poisson’s ratio | 0.33 | 0.33 |
| INDIA | U.S.A. | BRITAIN | CANADA | GERMANY | RUSSIA | I.S.O. | FRENCH | NORTH AMERICA | DIN Nos. | |
|---|---|---|---|---|---|---|---|---|---|---|
| New IS | Old IS | (A.A.) | (B.S.) | (DIN) | – | – | – | UNS | DIN | |
| 63401 | 91E | 6101 | 91E | D50S | E.Al.Mg.Si 0.5 | – | – | – | A96101 | 3.2315 |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Yes, Aluminium 6101 T6 bars are recyclable. Aluminium, including alloys like 6101 T6, can be recycled indefinitely without losing its properties, making it an environmentally friendly material for sustainable manufacturing.
Yes, Aluminium 6101 T6 rods can be customized in size and length to meet specific requirements. Manufacturers often offer various diameters, lengths, and finishes, allowing the rods to be tailored for different applications.
To select the right Aluminium 6101 T6 bar or rod, consider factors like strength requirements, electrical conductivity, corrosion resistance, weight, and intended application (e.g., electrical, structural, aerospace, or industrial use).
Aluminium 6101 T6 Bars and Rods are primarily utilized in electrical bus bars, overhead power transmission lines, and switchgear components, where conductivity and mechanical performance are crucial. In the transportation and railway industries, they are used in structural frameworks and electrical connections. Their corrosion resistance and thermal performance also make them ideal for substations and transformer connections. Furthermore, these bars are employed in aerospace grounding systems and industrial electrical enclosures, providing reliability in environments that demand lightweight yet strong and conductive materials.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
