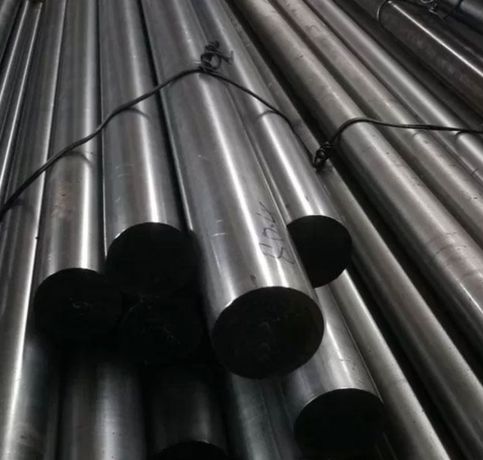

Chuck Metals stands out as a top manufacturer and supplier of Carbon Steel EN-1A Bars right in Singapore, with its headquarters located in Pulau Ujong. They’re dedicated to providing precision-engineered materials and cater to a variety of industries, including automotive, electrical, machining, and general engineering. Their EN-1A bars are celebrated for their excellent machinability, consistent dimensions, and smooth surface finish, making them perfect for high-speed production settings. With cutting-edge facilities and rigorous quality checks, Chuck Metals guarantees that every bar meets international standards and the specific needs of their clients. Their commitment to reliability and quality has helped them build a strong reputation within Singapore’s industrial supply chain.
Carbon Steel EN-1A is a low-carbon, free-machining steel that typically contains 0.07–0.15% carbon and about 0.9–1.3% manganese, along with sulfur (0.2–0.3%) to enhance machinability. This unique composition allows EN-1A to be exceptionally easy to machine while maintaining dimensional accuracy. Although it’s not suitable for heat treatment, it can be case-hardened to boost surface wear resistance. The material generally boasts a tensile strength of 370–460 MPa and a yield strength of around 220 MPa. Thanks to its low carbon content, it also provides good weldability and cold formability, making it a great choice for turned parts and high-volume machining.
| Grade | EN1A Round Bar |
|---|---|
| EN1A Square bar size | 4 to 100mm |
| Carbon Steel EN-1A Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| CS EN-1A Hex Bar size | 2-100mm A/F |
| EN1A Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Carbon Steel EN-1A Rectangles Size | 33 x 30mm to 295 x 1066mm |
| CS EN-1A Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| EN1A Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Carbon Steel EN-1A Section | 3.0 to 12.0mm thickness |
| CS EN-1A Round bar size | Diameter: 3-~800mm |
| EN1A Billet Size | 1/2″ to 495mm Diameter |
| Carbon Steel EN-1A Round Bar Standard Dimensions | Diameter / Height: |
| EN1A Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Carbon Steel EN-1A Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| CS EN-1A Technique | EN1A Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| EN1A Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | EN1A Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our EN1A Round bar conforms to NACE MR0175/ISO 15156 | |
230M07 (EN1A) Specification Chemical composition | |
|---|---|
Carbon | 0.15% max |
Manganese | 0.90-1.30% |
Silicon | 0.40% max |
Sulphur | 0.25-0.35% |
Phosphorus | 0.070 Max |
Chromium | – |
Molybdenum | – |
Nickel | – |
Lead | 0.15-0.35% (Where specified) |
Max Stress | 370-480 n/mm2 Min | dependent on ruling section |
Yield Stress | 240-400 n/mm2 Min | dependent on ruling section |
0.2% Proof Stress | 225-360 n/mm2 Min | dependent on ruling section |
Elongation | 6-10% Min | dependent on ruling section |
| STANDARD | UNS | DIN |
|---|---|---|
| EN1A Round Bar | – | – |
Carbon Steel EN-1A Bars are typically available in thicknesses ranging from 6 mm to 300 mm or more, depending on the manufacturer and specific requirements of the application.
Carbon Steel EN-1A bar has high machinability, tensile strength of 400-550 MPa, yield strength of 280 MPa, hardness of 130-180 HB, and excellent ductility for general engineering applications.
Carbon Steel EN-1A Bars are used for manufacturing precision components like gears, shafts, spindles, and fasteners due to their excellent machinability, surface finish, and suitability for high-speed machining applications.
EN-1A Carbon Steel Bars are widely utilized in industries that demand high-speed machining and precision components. In the automotive field, they’re often used to manufacture nuts, bolts, studs, and precision-turned parts. Their outstanding machinability makes them ideal for components produced on CNC machines and automatic lathes. In the electrical and appliance manufacturing sectors, EN-1A bars find their place in fittings, connectors, and bushings. They’re also perfect for creating small, intricate parts in large quantities where speed and cost-efficiency are essential. Thanks to their versatility and ease of machining, EN-1A bars have become a staple in many manufacturing processes.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
