Copper C10300 Bars/Rods

Chuck Metals is a reputable manufacturer and supplier based in Singapore, specifically on Pulau Ujong. They specialize in high-quality Copper C10300 Bars and Rods, which are celebrated for their remarkable electrical and thermal conductivity, impressive resistance to corrosion, and dependable mechanical properties. These bars and rods are crafted to meet strict industry standards, ensuring they perform consistently well in demanding industrial settings. With a focus on precision engineering and a dedication to quality, Chuck Metals provides Copper C10300 Bars and Rods that serve various sectors, including electrical, marine, and industrial manufacturing, guaranteeing durability, efficiency, and a long lifespan.

C10300 Copper Round Bars Singapore, Copper C10300 Hexagonal Bars Supplier in Clementi, C10300 Copper Bus Bars Exporter in Singapore, Copper C10300 Hex Bars Stockist in Singapore, C10300 Copper Alloy Rectangular Bars Supplier in Singapore,Copper C10300 Square Bars Distributor in Clementi, 3/16" Copper C10300 Rod Stockist Queenstown, C10300 3/8" Copper Alloy Round Rod Price in Queenstown, Copper Flat Bars Singapore

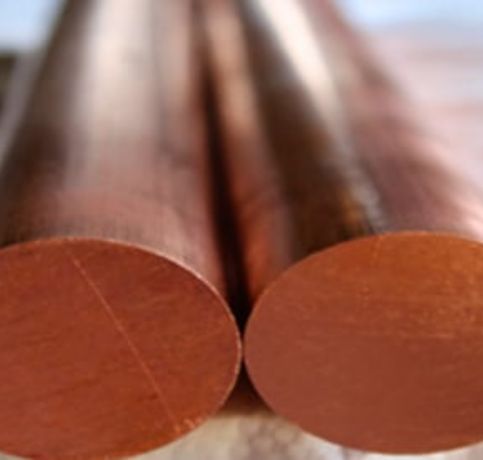

Copper C10300 Forging Rod

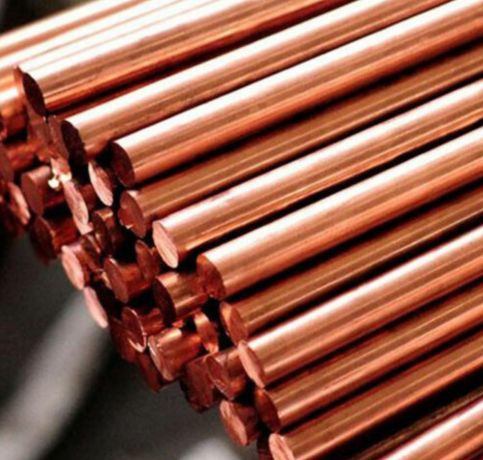

Copper C10300 Bus Bars

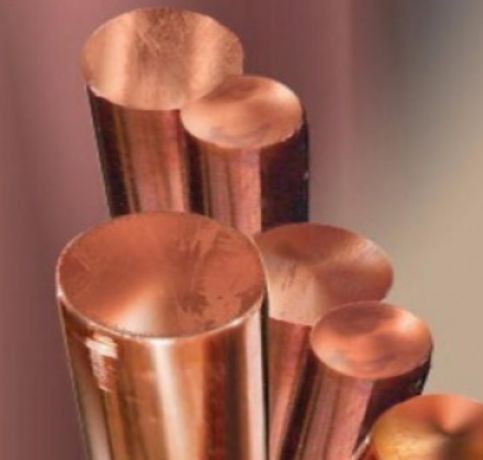

C10300 Copper Bright Rods

What is Copper C10300 Bars and Rods

The Copper C10300 Bars and Rods are made from high-purity copper with very low oxygen content, which gives them outstanding electrical and thermal conductivity, along with excellent corrosion resistance. They boast high ductility, good formability, and are easy to fabricate, making them perfect for a range of machining and joining processes. On the mechanical side, they offer strong tensile strength and perform exceptionally well in both high and low-temperature environments, all while maintaining their conductive efficiency over time.

C10300 Copper Forging Rod Price List in Singapore, Copper C10300 Threaded Bars Supplier in Singapore, Copper C10300 Copper Hexagonal Bars Exporter in Sengkang, C10300 Pure Copper Rods Exporter in Singapore, C10300 Copper Round Bars Manufacturer in Queenstown, Copper C10300 Round Bars Distributor in Singapore, C10300 Copper Half Round Bars Dealer in Sengkang, Stockist of C10300 Copper Forged Bar in Singapore, 20mm Copper C10300 Round Bar Supplier in Singapore, C10300 Oxygen Free Copper Rectangle Rods Exporter in Singapore

Copper C10300 Bar/Rods Specifications

Specifications	ASTM B187, ASTM B301 / ASME SB187, SB301
Range	3.17 MM TO 350 MM DIA
Form	Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.
Copper Grades	C10300

Copper C10300 Bar and Rods Thermal Properties

Treatment	Maximum*	Minimum*
* Temperature is measured in Fahrenheit.
Hot Working Temperature	1600	1400
Annealing	1200	700

Copper Alloy C10300 Rods Equivalent

Alloy Designation
DIN CEN/TS 13388	CW021A
EN	Cu-HCP
UNS	C10300

You Need Our Support, to Have Any Projects?

Copper C10300 Bars & Rods Physical Properties

Typical values in annealed temper at 20 °C
Thermal expansion coefficient	20 .. 300 °C	16.9	10-6/K
Density		8.92 g/cm³
Thermal conductivity		385	W/(m·K)
Modulus of elasticity	GPa	130	GPa
Specific heat capacity		0.385 J/(g·K)
Electrical conductivity	IACS	98 %
Electrical conductivity	MS/m	57	MS/m
Thermal coefficient of electrical resistance	(0 .. 100 °C)	3.7	10-3/K

Test Certificate

Why Chuck Metals?

Packaging

Copper C10300 Bar/Rods Mechanical Properties

Tensile Strength Rm	Hardness HV *	Temper	Yield Strength Minimum Rp0.2	Elongation Minimum A50mm	Bending 90° gw bw rel. Bending Radius R/T
Mechanical Properties (EN 1652)
MPa	HV		MPa %		Strip Thickness ≤ 0.50mm
≥ 360	≥ 110	R360	320	2	0	0.5
240 .. 300	65 .. 95	R240	180	8	0	0
220 .. 260	40 .. 65	R220	≤ 140 *	33	0	0
290 .. 360	90 .. 110	R290	250	4	0	0

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Copper C10300 Bar/Rods Types

C10300 Wrought Copper Alloy Rod & Bar Size Chart, C10300 Copper Round Rods Price in Queenstown, Copper C10300 Round Bars Supplier in Clementi, C10300 Copper Bus Bar Stockist in Singapore, Copper C10300 Half Round Bar Supplier in Singapore, C10300 Copper Forged Bar Dealer in Sengkang, 20mm Copper C10300 Round Bar Manufacturer in Sengkang, C10300 Copper Round Rods Supplier in Singapore

Frequently Asked Questions (FAQ)

How Do I Select The Right Copper C10300 Bars and Rods For My Application?

To select the right Copper C10300 Bars and Rods, consider factors such as conductivity, corrosion resistance, strength requirements, and the specific environmental conditions of your application.

Are Copper C10300 Bars and Rods are Recyclable?

Yes, Copper C10300 Bars and Rods are fully recyclable, retaining their properties even after recycling, making them an eco-friendly option for sustainable industrial applications.

Can Copper C10300 Bars and Rods Be Used For Potable Water Applications?

Yes, Copper C10300 Bars and Rods can be used for potable water applications due to their corrosion resistance, antimicrobial properties, and compliance with drinking water standards.

Copper C10300 Bar/Rods Uses

You’ll find Copper C10300 Bars and Rods in various applications, such as electrical conductors, switchgear components, transformers, and bus bars, where high conductivity is crucial. In the marine industry, they are utilized for corrosion-resistant fittings and fasteners. Moreover, they are perfect for heat exchangers, condensers, and components in industrial machinery that require efficient heat transfer, long-term reliability, and minimal maintenance, even in tough operational conditions.

Our Products

Other Material

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
