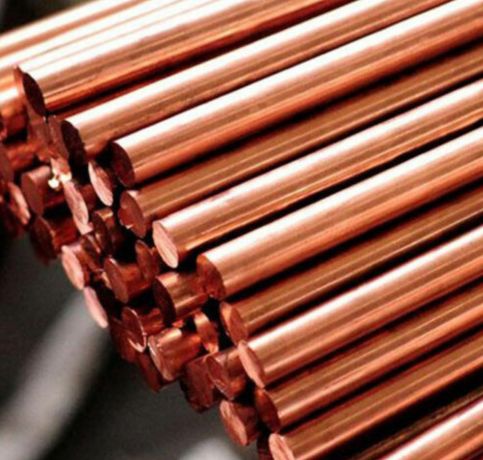

Chuck Metals stands out as a top-notch manufacturer and supplier of high-quality metal products right from Singapore, catering to industrial clients throughout Pulau Ujong and Southeast Asia. With a strong focus on precision, durability, and customer satisfaction, Chuck Metals provides an impressive array of copper and copper alloy solutions. One of their standout products is the Copper C12000 Bars/Rods, a highly conductive, deoxidized copper alloy that’s a go-to choice for electrical and plumbing systems. Thanks to rigorous quality controls and flexible supply options, Chuck Metals guarantees that each product meets global standards, ensuring reliable performance in applications that demand exceptional thermal and electrical conductivity.
The Copper C12000 Bars/Rods are made up of 99.9% pure copper, with a tiny bit of phosphorus (usually between 0.004% and 0.04%) added to enhance weldability and corrosion resistance. This alloy is known as deoxidized high phosphorus (DHP) copper. It boasts impressive electrical conductivity (around 85–90% IACS) and excellent thermal conductivity, making it perfect for conductive applications. C12000 also offers good formability, moderate strength (with a tensile strength of about 200–250 MPa), and remarkable corrosion resistance, particularly in non-oxidizing environments. While it’s not the best choice for soldering, it shines in brazing and welding tasks, especially in systems that involve heat transfer or fluid flow.
| Specifications | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Range | 3.17 MM TO 350 MM DIA |
| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Copper Grades | C12000 |
| Alloy | Chemical Composition | ||||
| QB | JIS /ASTM | Cu | P | O | Other |
| T2 | JIS C1100 | 99.9 | 0.015-0.040 | – | balance |
| TU | ASTM C10300 | 99.95 | 0.001-0.005 | – | balance |
| TP1 | JIS C1220 | 99.9 | 0.004-0.012 | – | balance |
| Grade | Grade | Temper | Vickers Hardness (HV) | Tensile strength(Mpa) | Elongation(%) |
| T2/T3/TP1/TP2 | C11000/C1201 | M | – | ≥290 | ≥40 |
| C1220.etc. | Y4 | 75-125 | 325~410 | ≥35 | |
| Y2 | 85-145 | 340~460 | ≥25 | ||
| Y | 105-175 | 390~530 | ≥13 | ||
| T | – | ≥490 | – |
Yes, Copper C12000 Bars and Rods can be easily recycled. Copper retains its properties after recycling, making it an environmentally friendly and sustainable material for repeated use in various industries.
Copper C12000 Bars and Rods are naturally resistant to corrosion due to their high purity. However, in aggressive environments, protective coatings may be applied to enhance their durability and performance.
Yes, Copper C12000 Bars and Rods can be welded using various methods like TIG and MIG welding. Their excellent weldability makes them suitable for electrical and industrial applications.
You’ll find Copper C12000 Bars/Rods in a variety of applications, especially in electrical, HVAC, and plumbing systems where high conductivity and corrosion resistance are crucial. In the electrical sector, they’re commonly used for bus bars, connectors, terminals, and grounding systems. For plumbing and HVAC, they’re utilized in tubing, fittings, and components for heat exchangers and solar panels, thanks to their outstanding thermal performance. The alloy’s ease of forming, brazing, and welding makes it a fantastic option for fabricated components in both industrial and commercial systems. C12000 also finds its way into architectural applications, showcasing its versatility and reliability.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
