Chuck Metals is a reliable manufacturer and supplier of top-notch alloy products based in Singapore, Pulau Ujong. They specialize in providing durable and high-performance Incoloy 330 Bars and Rods, perfectly tailored for demanding industrial applications. With a reputation for precision manufacturing and rigorous quality control, Chuck Metals ensures that their materials perform consistently well, even in extreme heat and corrosive conditions. Incoloy 330 is a go-to choice in the thermal processing, chemical, and petrochemical sectors, thanks to its outstanding heat resistance and structural integrity. Committed to competitive pricing, quick delivery, and expert technical support, Chuck Metals has become a trusted partner for clients in search of reliable alloy solutions.
Incoloy 330 Bars and Rods are austenitic nickel-iron-chromium alloys, typically composed of 35–37% nickel, 17–20% chromium, and 40–45% iron, with a touch of silicon to enhance oxidation resistance. This alloy excels in resisting carburization, oxidation, and scaling at high temperatures. It boasts a tensile strength of about 655 MPa and a yield strength close to 290 MPa. Remarkably, it maintains good ductility and mechanical stability even after extended exposure to high-temperature environments. Its well-balanced composition allows it to withstand thermal shock and stress rupture, making it an excellent choice for components that face intense thermal cycling and mechanical loads.
| Grade | Incoloy 330 – UNS N08330 |
|---|---|
| Specification | ASTM B511 UNS N08330, AMS 5716, ASTM B511, ASME SB511 |

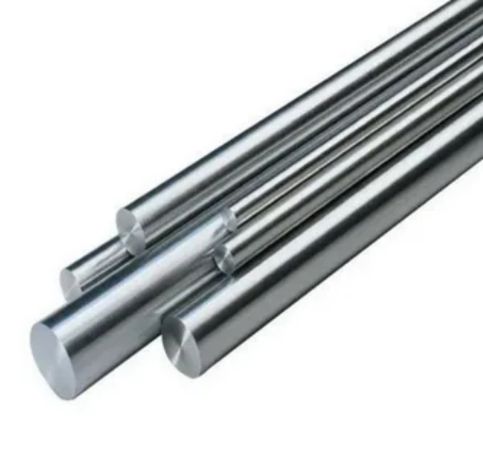

| Round bar size | Diameter: 3-~330mm |

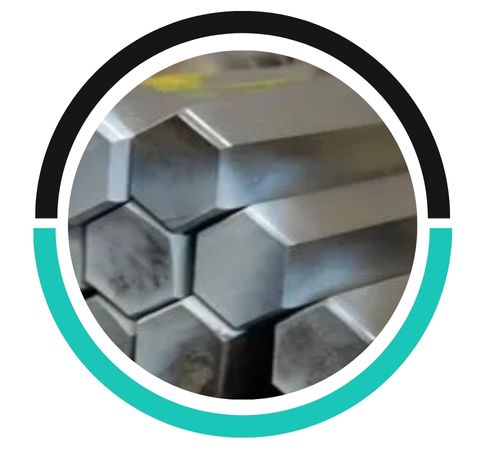

| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

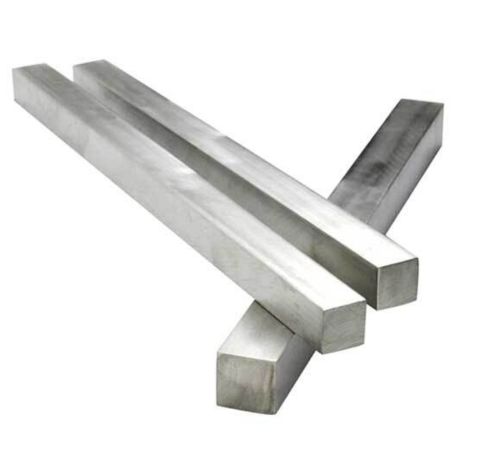

| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Round Bar Standard Dimensions | Diameter / Height: |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |
| Technique | Incoloy 330 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650mm |
| Form | Incoloy 330 Rod,Channel Bar, Forging, Precision Ground Bar, Flat Bar, Round, Rod, T-Bar, Square, Blocks, Round Rod, Rings, Hollow, Threaded, Half Round Bar, Profiles, Triangle, Rectangle, Hex (A/F), Billet, Ingot, I/H Bar etc. |
| Our stockyad location for fast delivery across India | Shivamogga, Agra, Ahmedabad, Mumbai, Dhanbad, Thiruvananthapuram, Bengaluru, Tiruchirappalli, Pune, Noida, Tirunelveli, Bhubaneswar, Chennai, Coimbatore, Pimpri-Chinchwad, Hyderabad, Navi Mumbai |
| Our Incoloy 330 Round bar conforms to NACE MR0175/ISO 15156 | |
|
Element |
Average Nominal % |
|---|---|
|
Chromium |
18.00 – 22.00 |
|
Nickel |
34.00 37.00 |
|
Carbon |
0.08 Max |
|
Silicon |
1.00 – 1.50 |
|
Manganese |
2.00 Max |
|
Phosphorus |
0.03 Max |
|
Sulfur |
0.03 Max |
|
Copper |
1.00 Max |
|
Iron |
Balance |
|
Tensile Strength – ksi (min.) |
0.2% Offset Yield Strength – ksi (min.) |
Elongation in 2 inches – % (min.) |
Hardness – Rockwell B |
|---|---|---|---|
|
70 |
30 |
30 |
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Incoloy 330 | 1.4886 | N08330 |
Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
Incoloy 330 Bars and Rods find their place in a wide range of high-temperature industrial applications, especially in thermal processing, heat treatment, and chemical processing industries. They are perfect for furnace components, muffles, retorts, heat exchangers, and radiant tubes, thanks to their resistance to oxidation and carburization. This alloy is also utilized in petrochemical plants for reformer tube supports and catalytic systems. Its impressive performance under cyclic heating and cooling conditions makes it ideal for applications that experience thermal fatigue. Additionally, Incoloy 330 is highly regarded in waste incineration and power generation systems.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Chuck Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Singapore, Singapore
