Chuck Metals is a reputable manufacturer and supplier based in Singapore, Pulau Ujong, specializing in top-notch Incoloy 800/800H/800HT Bars and Rods designed for critical industrial applications. These nickel–iron–chromium alloys are celebrated for their remarkable resistance to oxidation, carburization, and various high-temperature corrosion challenges. Each grade—800, 800H, and 800HT—is specifically engineered to deliver outstanding strength, stability, and durability, even when exposed to high temperatures for extended periods. Adhering to international standards, Chuck Metals guarantees precise dimensions, an exceptional finish, and consistent mechanical performance, making these bars and rods a reliable choice for industries like petrochemical, power generation, chemical processing, and heat treatment.
The Incoloy 800/800H/800HT Bars and Rods primarily consist of nickel (30–35%), chromium (19–23%), and iron as the base, along with trace amounts of carbon, aluminum, and titanium. Incoloy 800 is known for its excellent resistance to oxidation and scaling, while 800H and 800HT are enhanced with controlled carbon and higher aluminum–titanium content, boosting their creep and rupture strength. Typical tensile strength falls between 500–750 MPa, with yield strength ranging from 200–350 MPa, showcasing good elongation and impressive thermal stability.
Incoloy 800/800H/800HT Bars Specifications
Specification : ASTM B166, A479 / ASME SB166, SA479
Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI

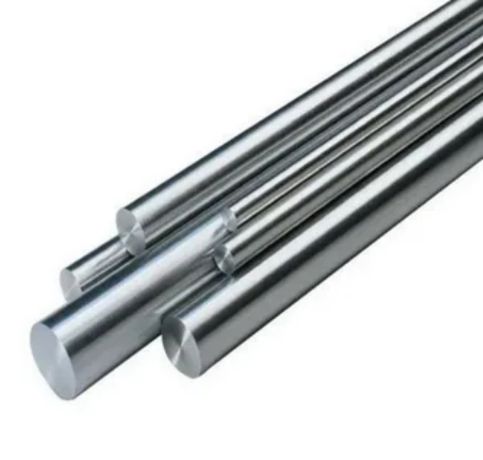

Incoloy Round Bars: Outside Diameter in the range of 4mm to 500mm

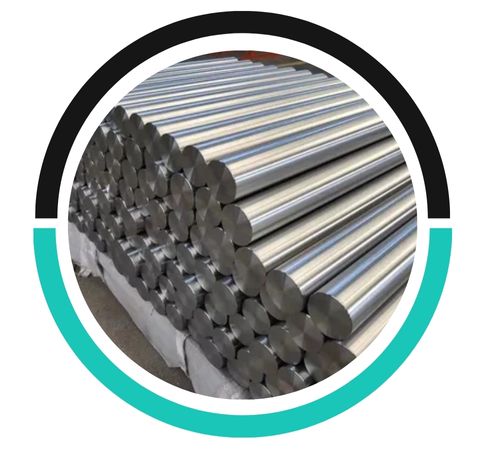

Incoloy Bright Bars : Outside Diameter in the range of 4mm to 200mm

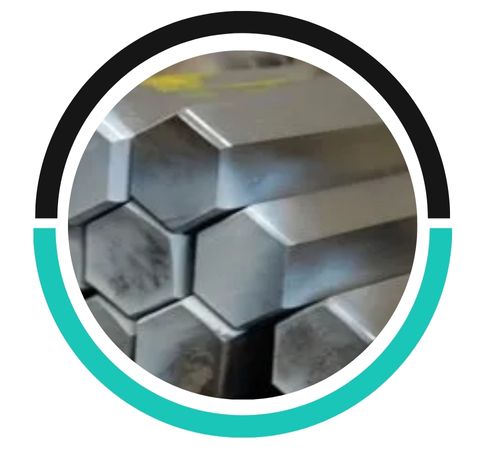

Incoloy Hex Bars : 4mm – 101.6mm

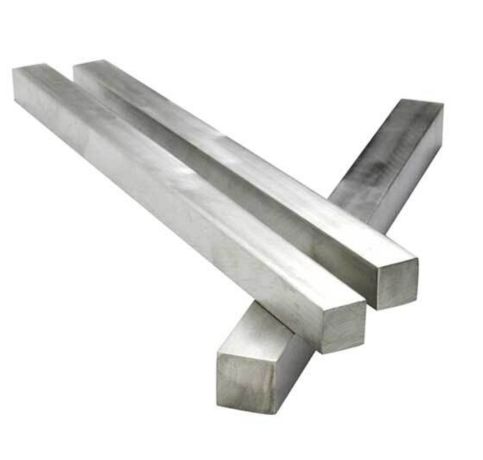

Incoloy Square Bars : 3mm – 100mm

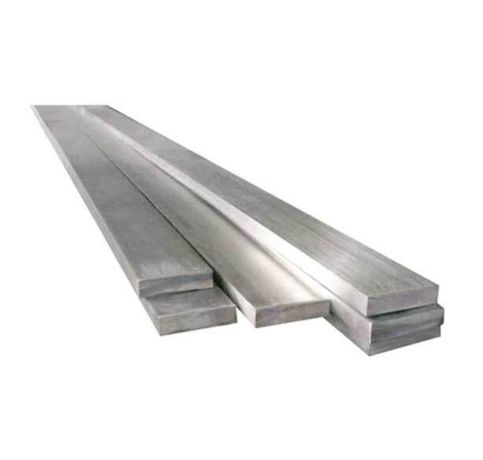

Incoloy Flat Bars : 1/2″ to 10″ in thickness range of 1.6mm to 150mm, Custom Size Stainless Steel Flats available
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 800 / 800H / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | BS | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | ЭИ670 | Z8NC32-21 | NCF 800 | NA 15 | X10NiCrAlTi32-20 | XH32T |
| Incoloy 800H | 1.4958 / 1.4876 | N08810 | ЭИ670 | Z8NC33-21 | NCF 800H | NA 15(H) | X5NiCrAlTi31-20 | XH32T |
| Incoloy 800HT | 1.4859 / 1.4876 | N08811 | ЭИ670 | – | NCF 800HT | NA 15(HT) | X8NiCrAlTi32-21 | XH32T |
| Incoloy 800 Round bar | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 | ||||||
Yes, Incoloy 800, 800H, and 800HT bars and rods are highly corrosion-resistant, particularly to oxidation and carburization at high temperatures. They are commonly used in harsh environments such as chemical processing and power generation due to their excellent resistance to sulfur and other corrosive elements.
Yes, Incoloy 800, 800H, and 800HT bars and rods can be customized in size and length to meet specific industrial requirements. They are available in various diameters, lengths, and finishes to suit different applications.
Incoloy 800, 800H, and 800HT bars and rods perform exceptionally well in high-temperature environments, maintaining their strength and resistance to oxidation and carburization. They are ideal for applications in furnaces, heat exchangers, and gas turbines.
These bars and rods find extensive use in heat exchangers, furnace components, superheater and reheater tubing, petrochemical processing units, and steam generation equipment. Their resistance to chloride stress corrosion cracking and ability to maintain mechanical integrity at high temperatures make them perfect for demanding service conditions. In scenarios involving high pressure, high temperature, and corrosive environments, Incoloy 800 series bars and rods promise a long service life with minimal maintenance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
