Chuck Metals is a reliable manufacturer and supplier of Nitronic 60 Bars and Rods based in Singapore, Pulau Ujong. They provide top-notch stainless steel solutions designed for applications that demand exceptional wear, galling, and corrosion resistance. Known as UNS S21800, Nitronic 60 is a high-performance austenitic alloy crafted to withstand metal-to-metal wear while still offering solid mechanical properties and corrosion resistance. Chuck Metals guarantees that each Nitronic 60 product adheres to global quality standards, catering to industries like petrochemical, marine, valve manufacturing, and heavy engineering. With a commitment to dependable supply, precise manufacturing, and a customer-centric approach, Chuck Metals has become a trusted source for Nitronic 60 materials.
Nitronic 60 Bars and Rods consist of about 16–18% chromium, 8–9% nickel, 4–5% manganese, along with some silicon and nitrogen, with iron making up the rest. This alloy is non-magnetic and boasts a yield strength that’s nearly double that of 304 and 316 stainless steel. It has a tensile strength ranging from approximately 700–900 MPa and maintains excellent wear resistance, even in unlubricated conditions. Nitronic 60 also performs admirably at elevated temperatures, reaching up to 980°C, and offers good resistance to pitting and crevice corrosion.
| Grade | Nitronic Alloy 60 (UNS No. S21800) Round Bar |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

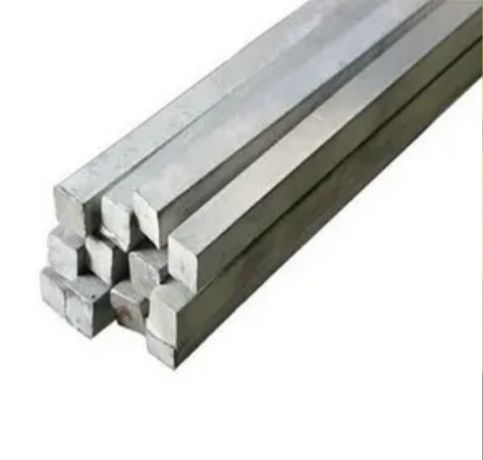

| Nitronic 60 Square bar size | 4 to 100mm |
| Nitronic Alloy 60 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Nitronic UNS S21800 Hex Bar size | 2-100mm A/F |
| Nitronic 60 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

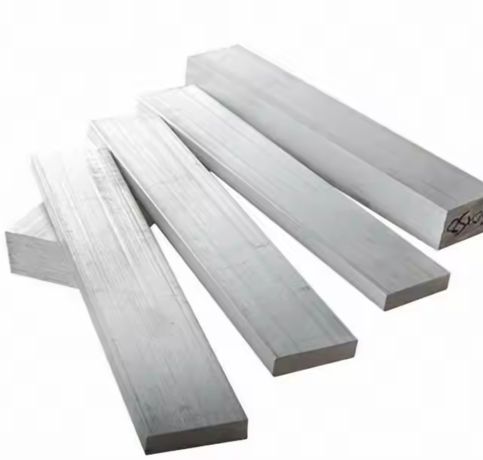

| Nitronic Alloy 60 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Nitronic UNS S21800 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 60 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |

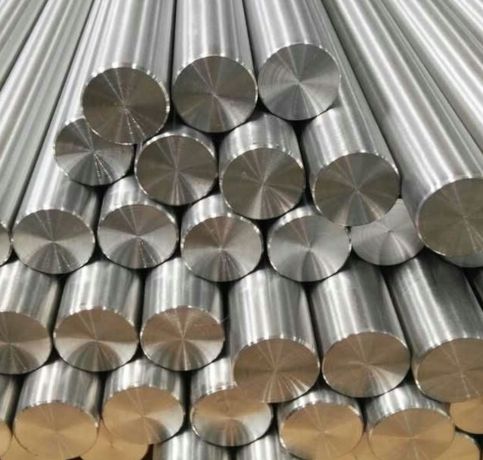

| Nitronic UNS S21800 Round bar size | Diameter: 3-~800mm |
| Nitronic 60 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic 60 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 60 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic UNS S21800 Technique | Nitronic 60 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 60 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 60 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 60 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 60 | 0.10 | 7.0 – 9.0 | 0.030 | 3.5 – 4.5 | 0.08 – 0.18 | 8.0 – 9.0 | 16.0 – 18.0 |
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 50 |
| Elongation, % | 35 |
| Reduction of Area, % | 55 |
| Hardness MAX, Brinell | 241 |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 60 Round Bars | S21800 | – |
Common finishes for Nitronic 60 Bar include mill finish, pickled and passivated, polished, brushed, and cold drawn. These finishes provide varying levels of smoothness, corrosion resistance, and aesthetic appeal.
The most common diameters for Nitronic XM 19 rod range from 0.125 inches (1/8") to 12 inches, with popular sizes including 1/4", 1/2", 1", 2", and 3".
Nitronic XM 19 rods typically come in standard sizes ranging from 1/8" to 3" in diameter, with lengths from 12" to 144". Custom sizes may also be available.
Nitronic 60 Bars and Rods are commonly used in situations where wear, galling, and fretting are prevalent. Typical applications include valve stems, fasteners, bushings, pump components, pins, bearings, and shafts. It’s also favored in marine and food processing settings due to its corrosion resistance and mechanical strength. The unique combination of galling resistance and durability makes Nitronic 60 a go-to material in industries such as aerospace, chemical processing, oil and gas, and industrial machinery, where reliable performance and longevity are crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
