Chuck Metals is a trusted manufacturer and supplier of Nitronic XM-19 Bars and Rods right here in Singapore, Pulau Ujong. They offer top-notch austenitic stainless steel products that are designed for high strength, exceptional corrosion resistance, and remarkable durability. Known as UNS S20910, Nitronic XM-19 is highly regarded in marine, chemical, and industrial sectors for its impressive mechanical performance and its ability to resist pitting and chloride stress corrosion. Chuck Metals takes pride in delivering precisely manufactured XM-19 bars and rods that adhere to international standards. With a strong commitment to quality, consistency, and timely delivery, they have established themselves as a reliable partner for high-performance stainless steel solutions.
The composition of Nitronic XM-19 Bars and Rods includes iron, along with 20–23% chromium, 11–13% nickel, 4–6% manganese, 2–3% molybdenum, and nitrogen. This unique blend gives it twice the yield strength of 316 stainless steel while still providing excellent corrosion resistance in seawater and chemical environments. The alloy boasts a tensile strength of about 960 MPa and remains non-magnetic even after cold working. Plus, it offers outstanding toughness at both high and cryogenic temperatures, along with good formability and weldability.
| Grade | Nitronic Alloy XM-19 (UNS No. S20910) |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

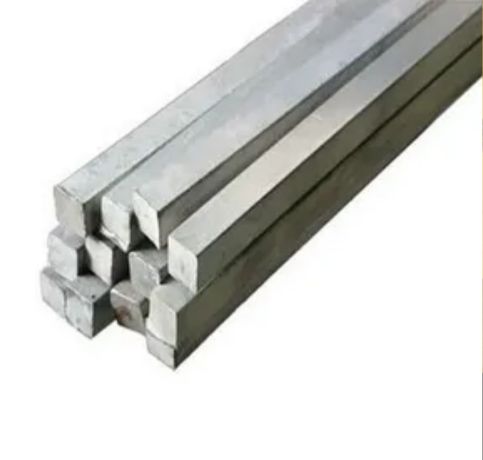

| Nitronic XM 19 Square bar size | 4 to 100mm |
| Nitronic Alloy XM 19 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

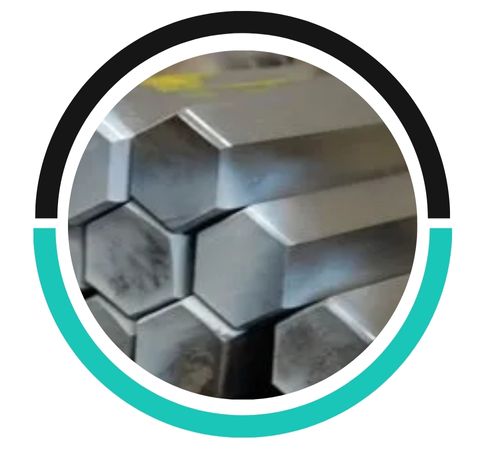

| Nitronic Alloy UNS S20910 Hex Bar size | 2-100mm A/F |
| Nitronic 50 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

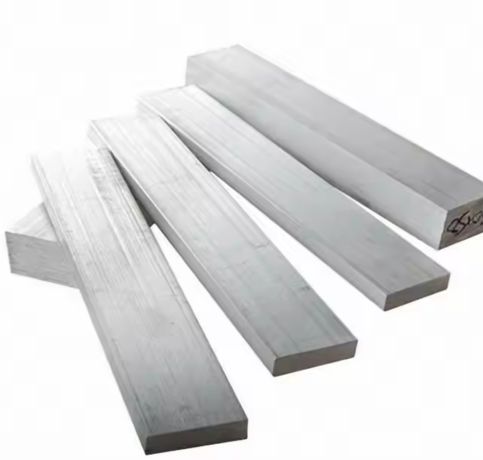

| Nitronic Alloy XM 19 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Nitronic Alloy UNS S20910 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic XM 19 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic Alloy XM 19 Section | 3.0 to 12.0mm thickness |

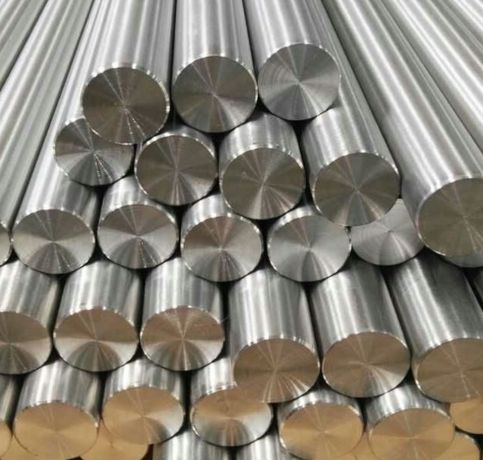

| Nitronic Alloy UNS S20910 Round bar size | Diameter: 3-~800mm |
| Nitronic XM 19 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic Alloy XM 19 Round Bar Standard Dimensions | Diameter / Height: |

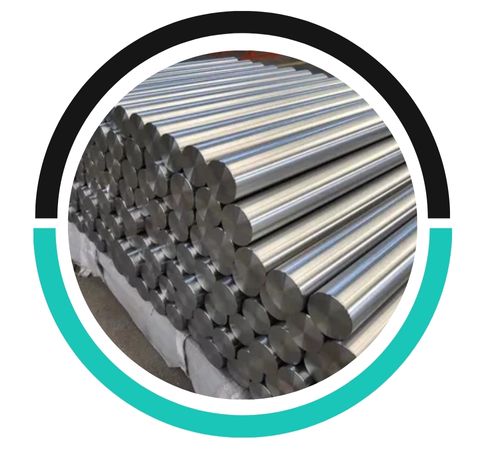

| Nitronic XM 19 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy XM 19 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic Alloy UNS S20910 Technique | Nitronic XM 19 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic XM 19 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic XM 19 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 50 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy XM-19 | .06 | .10 | 0.03 | 1.00 | 0.20 – 0.40 | 11.50 – 13.50 | 20.50 – 23.50 |
| Hardness MAX, Brinell | 241 |
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 50 |
| Elongation, % | 35 |
| Reduction of Area, % | 55 |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy XM-19 | .06 | .10 | 0.03 | 1.00 | 0.20 – 0.40 | 11.50 – 13.50 | 20.50 – 23.50 |
Common diameters for Nitronic XM-19 rods typically range from 1/8 inch (3.175 mm) to 6 inches (152.4 mm), though custom sizes may also be available depending on the supplier.
Nitronic XM-19 rods typically come in standard sizes ranging from 1/8 inch to 6 inches in diameter, with lengths varying from 12 to 20 feet, depending on supplier and application.
Yes, Nitronic XM-19 bar can be welded. It is known for its excellent weldability, though proper procedures and filler materials are essential for maintaining its mechanical properties and corrosion resistance.
You’ll find Nitronic XM-19 Bars and Rods in a variety of demanding applications, such as marine shafts, boat hardware, pump and valve components, heat exchangers, pressure vessels, and chemical processing equipment. Their exceptional strength and corrosion resistance make them perfect for offshore structures, desalination plants, and food processing machinery. XM-19 is particularly valued in situations where standard stainless steels fall short, providing long-lasting reliability and performance under mechanical stress and exposure to harsh elements. Its versatility and strength make it a go-to choice for critical components across many industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
