Chuck Metals stands out as a top manufacturer and supplier of Rene 41 Bars and Rods in Singapore, Pulau Ujong. They specialize in high-performance nickel-based superalloys that are built to withstand extreme temperatures and stress. Rene 41 is renowned for its remarkable strength, resistance to oxidation, and ability to handle creep at temperatures soaring up to 980°C. This makes it a go-to choice in the aerospace, defense, and high-tech engineering fields. Chuck Metals is committed to precision manufacturing, upholding global quality standards, and ensuring reliable delivery, which makes their bars and rods a trusted option for critical applications where durability, performance, and reliability are essential.
Rene 41 Bars and Rods are made up of a blend of nickel, chromium, cobalt, molybdenum, titanium, and aluminum, all of which contribute to their superior strength and stability. They boast a tensile strength that exceeds 1400 MPa, along with excellent oxidation resistance and impressive stress rupture properties even at high temperatures. This well-balanced composition guarantees long-lasting performance in environments where heat and mechanical stress are at their peak.
| Standards : | AMS 5545, AMS 5712, AMS 5713, AMS 5800, EN 2.4973, GE B50T59, GE B50TF109, GE B50TF76, UNS N07041, Werkstoff 2.4973 |
| Thickness : | Range from .008″ to .0125″ |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Form : | Bar, Rod |
| Tungsten Grades | HA 190 / HA 1925 / HA 195 / HE 390 / HE 3925 / HE 395 / HE 397 |
| Cr | Ni | Mo | Co | Al | Ti | B | C | Fe | Mn | Si | S | Cu | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN | 18.00 | — | 9.00 | 10.00 | 1.40 | 3.00 | 0.003 | — | — | — | — | — | — |
| MAX | 20.00 | Balance | 10.50 | 12.00 | 1.80 | 3.30 | 0.01 | 0.12 | 5.00 | 0.10 | 0.50 | 0.015 | 0.50 |
| Mechanical & Physical Properties | 21°C | 427°C | 538°C | 649°C | 760°C | 871°C | 982°C |
|---|---|---|---|---|---|---|---|
| Ultimate Tensile Strength /MPa | 1261.7 | – | – | 1117 | 1048 | 710.2 | – |
| 0.2% Yield Strength /MPa | 820.5 | – | – | 765.3 | 751.5 | 579.2 | – |
| Elongation % | 21 | – | – | 14 | 14 | 11 | – |
| Coefficient of Thermal Expansion µm/m⁰C | – | 13.3 | 13.7 | 14.3 | 15.1 | 15.5 | 16.7 |
| Thermal Conductivity /kcal/(hr.m.°C) | – | 14.4 | 16.1 | 17.9 | 19.6 | 21.4 | – |
| Modulus of Elasticity / x105 MPa | – | 2 | 1.93 | 1.79 | 1.72 | 1.65 | 1.52 |
Yes, RENE 41 bar can be welded using suitable techniques like gas tungsten arc welding (TIG) or gas metal arc welding (MIG). Preheating and post-weld heat treatment are recommended for optimal results.

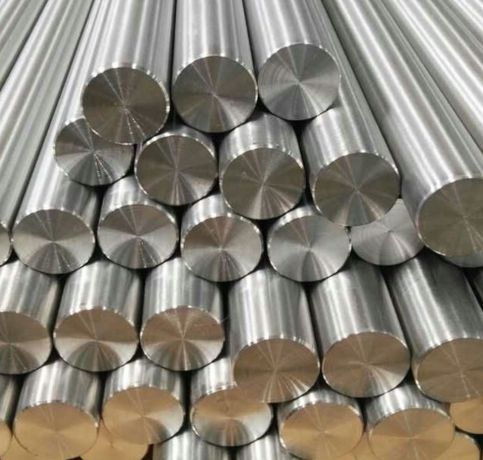

RENE 41 bars are available in sizes ranging from 6mm to 250mm diameter, with finishes including hot-rolled, cold-drawn, rough-turned, centerless ground, and polished options.
Yes, RENE 41 rods are susceptible to galvanic corrosion when coupled with dissimilar metals in an electrolyte, especially if the other metal is more anodic. Proper isolation is recommended.
These bars and rods find their place in various applications, including jet engine components, turbine blades, rocket motor casings, afterburner parts, nuclear reactors, and industrial furnaces. Their outstanding ability to maintain structural integrity under intense thermal and mechanical loads makes them vital in the aerospace, power generation, and defense sectors. Moreover, they are highly valued in high-temperature chemical processing equipment, where both corrosion and creep resistance are crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
