Stainless Steel 347H Hollow Bar

Chuck Metals, located in Pulau Ujong, Singapore, stands out as a top manufacturer and supplier of high-quality stainless steel products, including the Stainless Steel 347H Hollow Bars. Known for their heat and corrosion-resistant solutions, Chuck Metals caters to the rigorous demands of various industries like chemical processing, power generation, oil and gas, and marine engineering. Their 347H hollow bars are made with a strong commitment to global quality standards, ensuring durability, excellent performance at high temperatures, and resistance to long-term thermal exposure. With a focus on quality, technical know-how, and quick delivery, Chuck Metals has become a go-to source for stainless steel hollow bars throughout Singapore and Southeast Asia.

ASTM A276 Stainless Steel 347H Hollow Bar Singapore, SS 347H Round Bars United kingdom, Stainless Steel S34700 Hollow Bars Singapore, Stainless Steel 1.4550 Hollow Rods Sengkang, Steel 347H Hollow Bars Exporter Singapore, ASME SA479 SS 347H Hollow Rods Singapore, 347H Stainless Steel Hollow Bar Queenstown, Stainless Steel 347H Hollow Bar Manufacturer in Singapore, Singapore.

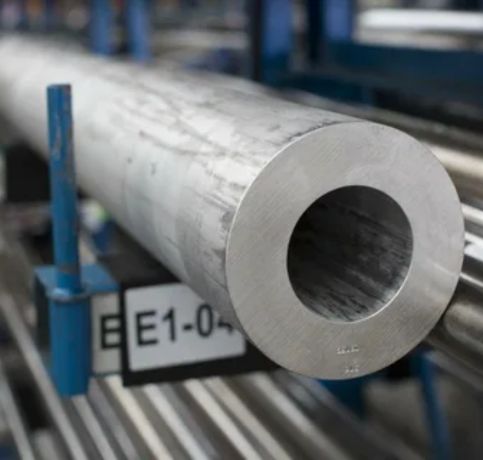

SS 347H Hexagon Hollow Bars

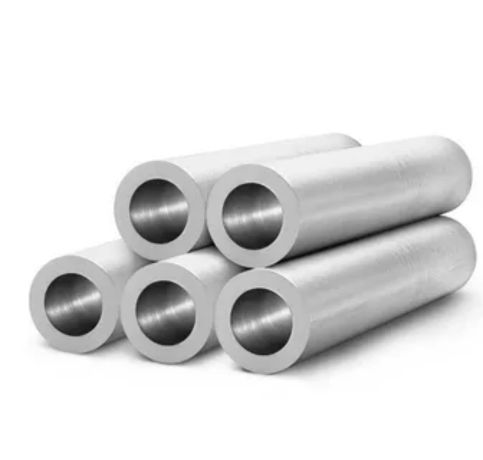

SS 347H Hollow Bar

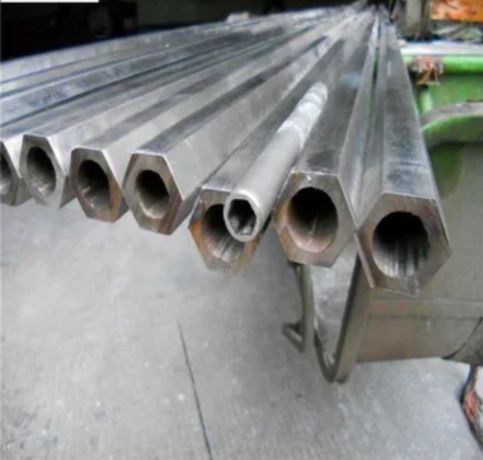

Stainless Steel 347H Hollow Hex Rod

What is Stainless Steel 347H Hollow Bar

The Stainless Steel 347H Hollow Bar is a high-carbon, niobium-stabilized austenitic stainless steel specifically designed for high-temperature applications. It features chromium (17–20%), nickel (9–13%), carbon (0.04–0.10%), and columbium (niobium), which helps prevent carbide precipitation and intergranular corrosion. This alloy boasts impressive mechanical properties, with a tensile strength of 75 ksi (515 MPa), yield strength of 30 ksi (205 MPa), and an elongation of about 40%. The higher carbon content enhances creep resistance, making it perfect for continuous use in elevated temperature settings, while the hollow design cuts down on weight and makes fabrication and machining easier.

Stainless Steel 347H Hollow Bars Singapore, Stainless Steel 347H Hollow Rods United kingdom, SS 347H Hollow Bar Singapore, SUS 347H Hollow Bars and Rods Sengkang, SS 347H Hollow Bar Singapore, SS 347H Hollow Bar Singapore, SS 347H Polished Hollow Bar Queenstown, Stainless Steel 347H Hollow Rods Supplier in Singapore, Singapore.

Stainless Steel 347H Hollow Bar Specifications

Standard	ASTM A276 / A479, ASME SA276 / A479
Round Bar Size	3mm~ 800mm
Square Bar Size	4mm* 4mm ~100mm* 100mm
Flat Bar Size	2mm ~ 100mm
Hex Bar Size	2mm ~ 100mm
Angle Size	3mm* 20mm* 20mm~ 12mm* 100mm* 100mm
Thickness	50 mm to 6000 mm Long
Length	1 To 6 Meters, Custom Cut Length
Form	Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc

Stainless Steel 347H Hollow Bar cHEMICAL COMPOSITIONS

Grade	C	Mn	Si	P	S	Cr	Co + Ta	Ni	Fe
SS 347H	0.08 max	2 max	0.75 max	0.045 max	0.03 max	17 – 20	10xC min 1.00 max	9 – 13	62.74

Stainless Steel 347H Hollow Bar mechanical properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1454 °C (2650 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	40 %

Stainless Steel 347H Hollow Bar Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 347h	1.4550	S34700	SUS 347	–	08Ch18N12B	–	X6CrNiNb18-10

You Need Our Support, to Have Any Projects?

Test Certificate

Why Chuck Metals?

Packaging

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

STAINLESS STEEL 347H HOLLOW BAR SIZES

Stainless Steel 347h Hollow Bar Size		Chucked true to OD				Chucked true to ID
OD, mm	ID, mm	Max. OD, mm	Min. ID, mm	Max. OD, in.	Min. ID, in.	Max. OD, mm	Min. ID, mm	Max. OD, in.	Min. ID, in.
32	20	31	21.9	1.220	0.862	30	21	1.185	0.827
32	16	31	18	1.220	0.709	30	17	1.181	0.669
36	25	35	26.9	1.378	1.059	34.1	26	1.343	1.024
36	20	35	22	1.378	0.866	34	21	1.339	0.827
36	16	35	18.1	1.378	0.713	33.9	17	1.335	0.669
40	28	39	29.9	1.535	1.177	38.1	29	1.500	1.142
40	25	39	27	1.535	1.063	38	26	1.496	1.024
40	20	39	22.1	1.535	0.870	37.9	21	1.492	0.827
45	32	44	33.9	1.732	1.335	43.1	33	1.697	1.299
45	28	44	30	1.732	1.181	43	29	1.693	1.142
45	20	44	22.2	1.732	0.874	42.8	21	1.685	0.827
50	36	49	38	1.929	1.496	48	37	1.890	1.457
50	32	49	34.1	1.929	1.343	47.9	33	1.886	1.299
50	25	49	27.2	1.929	1.071	47.8	26	1.882	1.024
56	40	55	42	2.165	1.654	54	41	2.126	1.614
56	36	55	38.1	2.165	1.500	53.9	37	2.122	1.457
56	28	55	30.3	2.165	1.193	53.7	29	2.114	1.142
63	50	62	51.9	2.441	2.043	61.1	51	2.406	2.008
63	45	62	47	2.441	1.850	61	46	2.402	1.811
63	40	62	42.2	2.441	1.661	60.8	41	2.394	1.614
63	36	62	38.3	2.441	1.508	60.7	37	2.390	1.457
63	32	62	34.4	2.441	1.354	60.6	33	2.386	1.299
71	56	69.9	58	2.752	2.283	68.9	57	2.713	2.244
71	45	69.9	47.3	2.752	1.862	68.6	46	2.701	1.811
71	40	69.9	42.4	2.752	1.669	68.5	41	2.697	1.614
71	36	69.9	38.5	2.752	1.516	68.4	37	2.693	1.457
75	60	73.8	62	2.906	2.441	72.8	61	2.866	2.402
75	50	73.8	52.2	2.906	2.055	72.6	51	2.858	2.008
75	40	73.8	42.5	2.906	1.673	72.3	41	2.846	1.614
80	63	78.8	65	3.102	2.559	77.8	64	3.063	2.520
80	50	78.8	52.4	3.102	2.053	77.4	51	3.047	2.008
80	45	78.8	47.5	3.102	1.870	77.3	46	3.043	1.811
80	40	78.8	42.6	3.102	1.677	77.2	41	3.039	1.614
85	67	83.7	69.1	3.295	2.720	82.6	68	3.252	2.677
85	55	83.7	57.4	3.295	2.260	82.3	56.0	3.240	2.205
85	45	83.7	47.6	3.295	1.874	82.1	46.0	3.232	1.811
90	71	88.6	73.1	3.488	2.878	87.6	72.1	3.449	2.839
90	63	88.6	65.3	3.488	2.571	87.3	64.0	3.437	2.520
90	56	88.6	58.5	3.488	2.303	87.1	57.0	3.429	2.244
90	50	88.6	52.6	3.488	2.071	87.0	51.0	3.425	2.008
95	75	93.5	77.3	3.681	3.041	92.4	76.2	3.641	2.997
95	67	93.5	69.3	3.681	2.728	92.2	68.0	3.630	2.677
95	50	93.5	52.7	3.681	2.075	91.8	51.0	3.614	2.008
100	80	98.5	82.3	3.878	3.240	97.4	81.2	3.835	3.197
100	71	98.5	73.4	3.878	2.890	97.2	72.1	3.827	2.839
100	63	98.5	65.5	3.878	2.579	97.0	64.0	3.819	2.520
100	56	98.5	58.7	3.878	2.311	96.8	57.0	3.811	2.244
106	80	104.4	82.5	4.110	3.248	103.1	81.2	4.059	3.197
106	71	104.4	73.5	4.110	2.894	103.0	72.1	4.055	2.839
106	63	104.4	65.7	4.110	2.587	102.7	64.0	4.043	2.520
106	56	104.4	58.9	4.110	2.319	102.5	57.0	4.035	2.244
112	90	110.3	92.5	4.343	3.642	109.2	91.4	4.299	3.598
112	80	110.3	82.6	4.343	3.252	108.9	81.2	4.287	3.197
112	71	110.3	73.7	4.343	2.902	108.7	72.1	4.280	2.839
112	63	110.3	65.8	4.343	2.591	108.5	64.0	4.272	2.520
118	90	116.2	92.7	4.575	3.650	114.9	91.4	4.524	3.598
118	80	116.2	82.8	4.575	3.260	114.6	81.2	4.512	3.197
118	71	116.2	73.8	4.575	2.906	114.5	72.1	4.508	2.839
118	63	116.2	66.0	4.575	2.598	114.2	64.0	4.496	2.520
125	100	123.1	102.7	4.846	4.043	121.9	101.5	4.799	3.996
125	90	123.1	92.8	4.846	3.654	121.7	91.4	4.791	3.598
125	80	123.1	82.9	4.846	3.264	121.4	81.2	4.780	3.197
125	71	123.1	74.0	4.846	2.913	121.3	72.1	4.772	2.839
132	106	130.0	108.8	5.118	4.283	128.8	107.6	5.071	4.236
132	90	130.0	93.0	5.118	3.661	128.4	91.4	5.055	3.598
132	80	130.0	83.1	5.118	3.272	128.1	81.2	5.043	3.197
132	71	130.0	74.2	5.118	2.921	121.2	72.1	5.035	2.839
140	112	137.9	115	5.429	4.528	136.6	113.7	5.378	4.476
140	100	137.9	103.1	5.429	4.059	136.3	101.5	5.366	3.996
140	90	137.9	93.2	5.429	3.669	136.1	91.4	5.358	3.598
140	80	137.9	83.3	5.429	3.280	135.8	81.2	5.346	3.197
150	125	147.7	128.1	5.815	5.043	146.5	126.9	5.768	4.996
150	106	147.7	109.3	5.815	4.303	146	107.6	5.748	4.236
150	95	147.7	98.4	5.815	3.874	145.7	96.4	5.736	3.795
150	80	147.7	83.6	5.815	3.291	145.3	81.2	5.720	3.197
160	132	157.6	135.3	6.205	5.327	156.3	134	6.154	5.276
160	122	157.6	125.4	6.205	4.937	156	123.8	6.142	4.874
160	112	157.6	115.5	6.205	4.547	155.8	113.7	6.134	4.476
160	90	157.6	94.0	6.205	3.701	155.2	91.4	6.110	3.598
170	140	167.4	143.5	6.591	5.650	166	142.1	6.535	5.594
170	130	167.4	133.6	6.591	5.260	165.8	132	6.528	5.197
170	128	167.4	131.6	6.591	5.181	165.7	130	6.524	5.118

Stainless Steel 347H Hollow Bar Types

ASTM A276 Stainless Steel 347H Hollow Bar Singapore, SS 347H Round Bars United kingdom, Stainless Steel S34700 Hollow Bars Singapore, Stainless Steel 1.4550 Hollow Rods Sengkang, Steel 347H Hollow Bars Exporter Singapore, ASME SA479 SS 347H Hollow Rods Singapore, 347H Stainless Steel Hollow Bar Queenstown, Stainless Steel 347H Hollow Bar Manufacturer in Singapore, Singapore.

Frequently Asked Questions (FAQ)

What are the key benefits of using SS 347H Hollow Bar in high-temperature applications?

SS 347H Hollow Bar offers excellent resistance to intergranular corrosion, high strength, and oxidation at elevated temperatures. Its high carbon content enhances creep resistance and mechanical properties, making it ideal for high-temperature applications like heat exchangers, reactors, and furnace parts, where durability and long-term performance are crucial.

How does the high carbon content in SS 347H enhance its mechanical properties?

The high carbon content in SS 347H improves its strength, particularly at elevated temperatures, by enhancing its resistance to creep and increasing tensile strength. This results in better durability, making it suitable for high-stress applications in extreme environments.

In which industries is SS 347H Hollow Bar most commonly used for its corrosion resistance?

SS 347H Hollow Bar is commonly used in the chemical processing, aerospace, power generation, and petrochemical industries. Its excellent corrosion resistance makes it ideal for applications involving high temperatures, aggressive chemicals, and harsh environments, ensuring long-lasting performance.

Stainless Steel 347H Hollow Bar Uses

Stainless Steel 347H Hollow Bar is ideal for demanding applications where high-temperature strength, corrosion resistance, and structural reliability are crucial. You’ll often find it in heat exchangers, furnace components, pressure vessels, high-temperature piping systems, and superheater tubes. The hollow design not only saves weight but also maintains mechanical performance, making it a great choice for structural applications and fluid transport systems.
