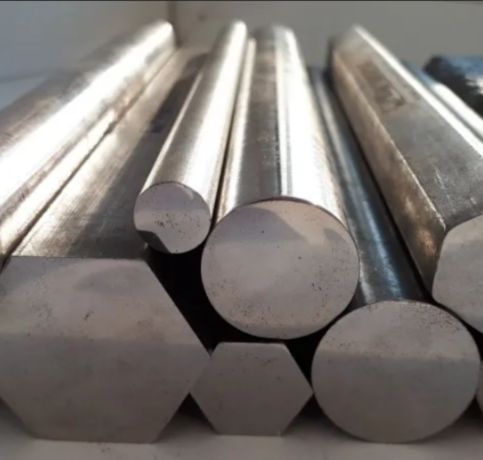

Chuck Metals is a reliable manufacturer and supplier of Super Duplex Steel Hex Bars in Singapore, providing top-notch stainless steel solutions throughout Pulau Ujong and the wider Southeast Asian region. These Super Duplex hex bars are prized for their impressive mechanical strength, outstanding corrosion resistance, and durability in tough environments. Adhering to global standards like ASTM A276 and A479, Chuck Metals offers precision-cut, corrosion-resistant hexagonal bars that are essential in applications where strength, reliability, and longevity are paramount. Our bars are perfect for machining, fastening, and structural applications in marine, offshore, chemical, and energy sectors.
Typically, Super Duplex Steel Hex Bars are crafted from grades such as UNS S32750, S32760, or Zeron 100, featuring around 25% chromium, 7% nickel, 3–4% molybdenum, and nitrogen, with optional elements like tungsten or copper. These components contribute to high tensile strength (750–930 MPa) and yield strength (~550 MPa), along with exceptional resistance to pitting, crevice corrosion, and chloride stress corrosion cracking. The hexagonal design makes these bars particularly suited for precision machining and custom fasteners in corrosive settings.
| Standard | : | ASTM / ASME SA 276 / A 479 |
| Grade | : | UNS S 32750, S 32760 , S 32950 |
| Range | : | 10 mm To 100 mm Dia in 100 mm TO 6000 mm Length. |
| Finish | : | Bright Black Polish |
| Form | : | Hexagonal |
| Material | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| Super Duplex Steel | 0.030 max | 1.20 max | 0.80 max | 0.035 max | 0.020 max | 24.00 – 26.00 | 3.00 – 5.00 | 6.00 – 8.00 | 0.24 – 0.32 | 58.095 min |
| Tensile Strength | 90,000 psi |
| Yield Strength | 50,000 psi |
| Elongation In 2” | 20% |
Reduction of Area | 30% |
Brlnell Hardness | 180-220 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
| Size (inch) | sizes in mm | Thickness (in Inches) | Thickness (mm) |
|---|---|---|---|
| 1-3/16 | 30 | 3/16 – 4/5 | 5 to 20 |
| 1 | 25 | 3/16 – 4/5 | 5 to 20 |
| 1-1/4 | 32 | 1/4 – 4/5 | 6 to 20 |
| 1-7/9 | 45 | 3/16 – 1 | 5 to 25 |
| 1-4/7 | 40 | 3/16 – 1 | 5 to 25 |
| 1-3/8 | 35 | 3/16 – 3/16 | 5 to 20 |
| 2 | 50 | 3/16 – 1-1/4 | 5 to 32 |
| 1-6/7 | 47 | 2/3, 1 & 1-1/4 | 17,25 & 32 |
| 2-1/16 | 55 | 3/16 – 1 | 5 to 25 |
| 2-3/8 | 60 | 3/16 – 1-3/8 | 5 to 35 |
| 7/8 | 22 | 2/3 – 5/7 | 17 & 18 |
| 2-1/4 | 57 | 1-1/4 | 32 |
Yes, Super Duplex Steel Hex Bars are magnetic due to their mixed microstructure of austenite and ferrite, which gives them magnetic properties, though they are less magnetic than ferritic steels.
Yes, Super Duplex Steel Hex Bars are suitable for hygienic and sanitary applications due to their corrosion resistance, durability, and ease of cleaning, making them ideal for industries like food processing and pharmaceuticals.
Super Duplex Steel Hex Bars are less susceptible to galvanic corrosion compared to other materials due to their high corrosion resistance. However, they may still experience galvanic corrosion when in contact with less resistant metals.
Super Duplex Steel Hex Bars find extensive use in the oil & gas, marine, and chemical industries for applications such as high-strength bolts, shafts, flanges, and valves. In offshore settings, they are perfect for pump components, subsea connectors, and structural supports that face exposure to seawater and brine. In chemical processing, they are utilized in aggressive acid-handling systems and high-pressure components. Their remarkable corrosion resistance and strength also make them ideal for desalination plants, pulp and paper processing, and power generation facilities. The hexagonal shape provides stability and ease of use in machining and fastening systems, even under the most demanding operating conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
