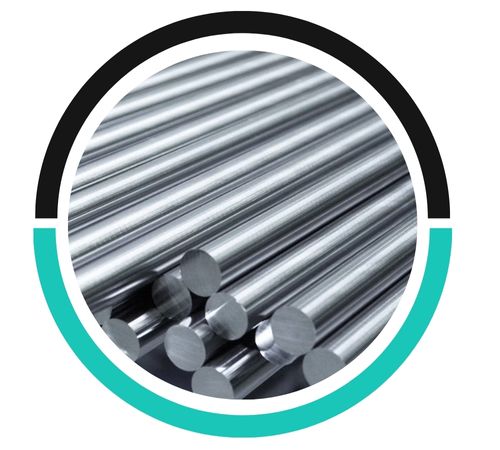

Chuck Metals, a top-notch manufacturer and supplier located in Singapore, Pulau Ujong, takes pride in offering Tantalum R05252 Bars and Rods that are specifically crafted for tough and corrosive applications. This tantalum alloy, which includes a touch of tungsten (W), boosts its strength and resistance to corrosion, particularly in acidic and high-temperature settings. Manufactured according to ASTM B365 standards, these bars and rods are a go-to choice in industries like chemical processing, aerospace, and semiconductor fabrication. Chuck Metals guarantees precise dimensional tolerances, traceable quality, and reliable performance, making it a trusted partner for engineered solutions where purity and durability are paramount.
Tantalum R05252 is a tantalum-tungsten alloy that contains about 2.5% tungsten (W), with the rest being high-purity tantalum (Ta). The addition of tungsten significantly boosts the alloy’s mechanical strength, creep resistance, and ability to withstand corrosion in hot, concentrated acids. It generally shows a tensile strength of around 400 MPa, a yield strength of about 280 MPa, and an elongation exceeding 20%, depending on its form and processing. R05252 holds up well at high temperatures, making it perfect for situations where pure tantalum might degrade over long periods of use.
| Specification | ASTM B365, ASME SB365 |
| Tantalum Bar Form | Tantalum Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Tantalum Round Bar Diameter | 0.125″ (3.18mm)~2.5″ (63.5mm) |
| Length | 2-12m |
| Purity | ≥99.95% or 99.99% |
| Tantalum Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Tantalum | C | O | N | H | Nb | Fe | Ti | W | Mo | Si | Ni | Ta |
| R05252 | 0.010 | 0.015 | 0.010 | 0.0015 | 0.50 | 0.010 | 0.010 | 2.0 – 3.5 | 0.020 | 0.005 | 0.010 | Remainder |
| Grade | Tensile strength δbpsi (MPa)， ≥ | Yield strength δ0.2， psi (MPa)，≥ | Elongation in 1″/2″ gage length， ％， ≥ |
|---|---|---|---|
| R05252 | 40000 (276) | 28000 (193) | 20 |
| 3/16” (4.76mm) | 25mm | 2.1/2” (63.5mm) |
| ¼” (6.35mm) | 1” (25.4mm) | 2.3/4” (69.85mm) |
| 5/16” (7.94mm) | 1.1/8” (28.58mm) | 3” (76.2mm) |
| 3/8” (9.53mm) | 30mm | 3.1/4” (82.55mm) |
| 10mm | 1.1/4” (31.75mm) | 3.1/2” (88.9mm) |
| 12mm | 1.3/8” (34.93mm) | 4” (101.6mm) |
| ½” (12.7mm) | 1.1/2” (38.1mm) | 4.1/2” (114.3mm) |
| 15mm | 40mm | 5” (127mm) |
| 5/8” (15.88mm) | 1.3/4” (44.45mm) | 5.1/2” (139.7mm) |
| ¾” (19.05mm) | 2” (50.8mm) | 6” (152.4mm) |
| 20mm | 2.1/8” (53.98mm) | 7” (177.8mm) |
| 7/8” (22.23mm) | 2.1/4” (57.15mm) | 8” (203.2mm) |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |
Tantalum R05252 bar and rods is applied in high corrosion-resistant applications that demand to endure extreme conditions. Such material can be very effective for use in chemical processing, aerospace, electronics, and medical equipment. Due to the great acid resistance of Tantalum, high melting point, and low thermal expansion, this material can be perfectly applied to the sputtering targets, reactor parts, and heat exchangers of semiconductor manufacturing. In addition, R05252 is used in implantable medical devices such as pacemakers and dental implants where biocompatibility is essential. Its excellent performance in hostile environments also makes it invaluable in producing components for high-temperature furnaces and nuclear reactors.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
