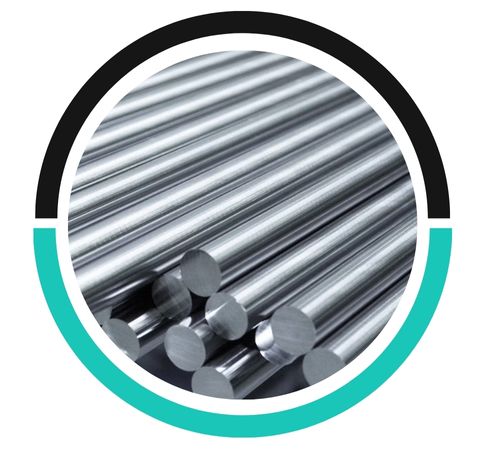

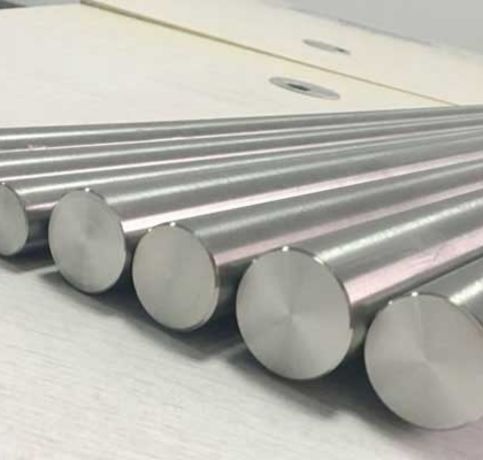

Tantalum R05400 Bars and Rods are top-notch metal products celebrated for their outstanding resistance to corrosion, impressive melting point, and remarkable biocompatibility. These high-purity tantalum bars and rods, supplied by Russ Fasteners in Singapore, Pulau Ujong, are crafted to meet ASTM B365 R05400 standards. Tantalum R05400 finds its place in various industries, including electronics, aerospace, medical, and chemical processing, thanks to its ability to withstand harsh environments and retain strength even at high temperatures. They’re perfect for applications that demand long-lasting durability in reactive or high-heat settings.
This tantalum variant boasts a purity of at least 99.95%, with only trace amounts of elements like oxygen, nitrogen, hydrogen, and carbon. It has an incredibly high melting point of around 3017°C and a density of 16.6 g/cm³. Its mechanical properties are impressive, featuring a tensile strength ranging from 200 to 750 MPa and excellent elongation, typically exceeding 30%. The material remains stable under intense thermal conditions and showcases fantastic formability, weldability, and resistance to nearly all acids (except hydrofluoric acid) even at elevated temperatures, making it a go-to choice for demanding industrial applications.
| Specification | ASTM B365, ASME SB365 |

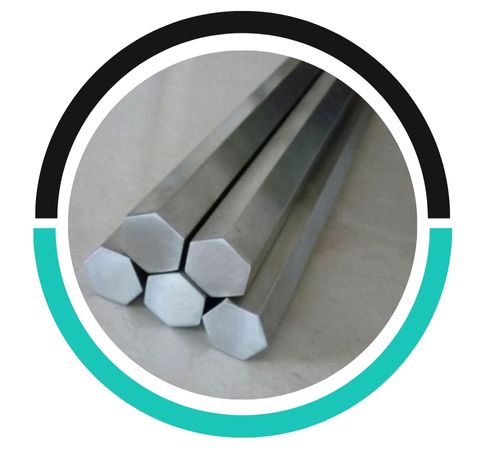

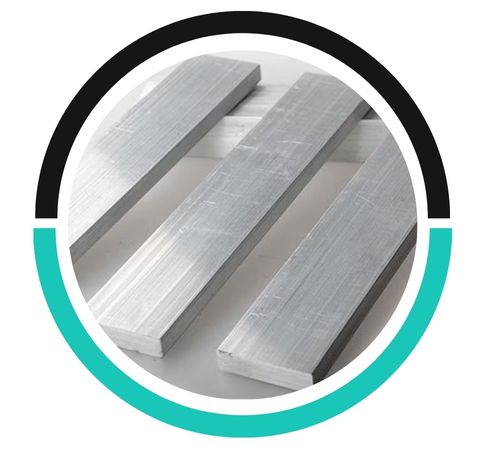

| Tantalum Bar Form | Tantalum Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |

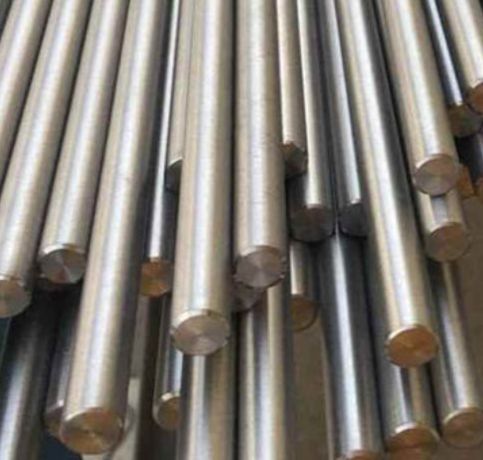

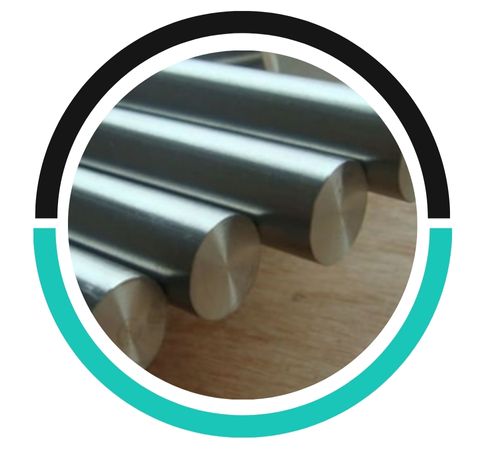

| Tantalum Round Bar Diameter | 0.125″ (3.18mm)~2.5″ (63.5mm) |
| Length | 2-12m |
| Purity | ≥99.95% or 99.99% |
| Tantalum Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Tantalum | C | O | N | H | Nb | Fe | Ti | W | Mo | Si | Ni | Ta |
| R05400 | 0.010 | 0.03 | 0.010 | 0.0015 | 0.100 | 0.010 | 0.010 | 0.050 | 0.020 | 0.005 | 0.010 | Remainder |
| Tantalum Alloy Rods & Bars Mechanical Property | ||||
| Grade | Tensile strength “>， psi (MPa)， ≥ | Yield strength “>， psi (MPa)， ≥ | Elongation in 1 inch gage length， ％， ≥ | |
| RO5400 | 25000 (172) | 15000 (103) | 25 | |
| 3/16” (4.76mm) | 25mm | 2.1/2” (63.5mm) |
| ¼” (6.35mm) | 1” (25.4mm) | 2.3/4” (69.85mm) |
| 5/16” (7.94mm) | 1.1/8” (28.58mm) | 3” (76.2mm) |
| 3/8” (9.53mm) | 30mm | 3.1/4” (82.55mm) |
| 10mm | 1.1/4” (31.75mm) | 3.1/2” (88.9mm) |
| 12mm | 1.3/8” (34.93mm) | 4” (101.6mm) |
| ½” (12.7mm) | 1.1/2” (38.1mm) | 4.1/2” (114.3mm) |
| 15mm | 40mm | 5” (127mm) |
| 5/8” (15.88mm) | 1.3/4” (44.45mm) | 5.1/2” (139.7mm) |
| ¾” (19.05mm) | 2” (50.8mm) | 6” (152.4mm) |
| 20mm | 2.1/8” (53.98mm) | 7” (177.8mm) |
| 7/8” (22.23mm) | 2.1/4” (57.15mm) | 8” (203.2mm) |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |
Store Tantalum R05400 bars and rods in a clean, dry environment away from moisture and corrosive substances. Use protective covers or packaging to prevent contamination, scratches, or physical damage during storage.
Tantalum R05400 can withstand extremely high temperatures, up to approximately 3,000°C (5,432°F) in a vacuum or inert atmosphere. Its excellent heat resistance makes it ideal for high-temperature applications.
Tantalum R05400 Bars and Rods are utilized in a wide array of high-tech and corrosive environments. In the electronics sector, they serve as components for capacitors, vacuum furnaces, and sputtering targets. In chemical processing, they’re essential for creating heat exchangers, reactor vessels, and linings for tanks that encounter strong acids. In the medical arena, tantalum’s biocompatibility makes it ideal for surgical implants and bone repair devices. The aerospace and defense industries also rely on it for high-temperature structural parts and components that require exceptional corrosion and heat resistance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
