Chuck Metals is a well-respected manufacturer and supplier of Nickel Alloy 200 Forgings based in Singapore, Pulau Ujong. They provide top-notch forged components that industries rely on for their exceptional corrosion resistance and mechanical strength. Nickel Alloy 200 (UNS N02200) is a commercially pure nickel alloy celebrated for its remarkable ability to withstand caustic alkalis, acids, and neutral salts. Chuck Metals specializes in precision-forged products that adhere to global standards, making them ideal for applications in chemical processing, electronics, food handling, and marine environments. With a strong focus on accuracy, durability, and timely delivery, Chuck Metals has earned a reputation as a trusted provider of high-performance Nickel Alloy 200 forgings.
These Nickel Alloy 200 Forgings consist of 99.6% pure nickel, which gives them impressive mechanical properties and corrosion resistance, particularly in alkaline environments. The alloy boasts a tensile strength of about 403 MPa and a yield strength of around 103 MPa. It also features high thermal and electrical conductivity, along with good ductility and toughness, even in low temperatures. Its low carbon content helps prevent embrittlement at higher temperatures, ensuring reliable performance in tough operating conditions.
| Specifications | ASTM B564, ASME SB564 |
|---|---|
| Standard | BS 3072, BS 3073, BS 3074, BS 3075, BS 3076, NA11 DIN 17740, 17750, 17751, 17752, 17753, 17754, DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |

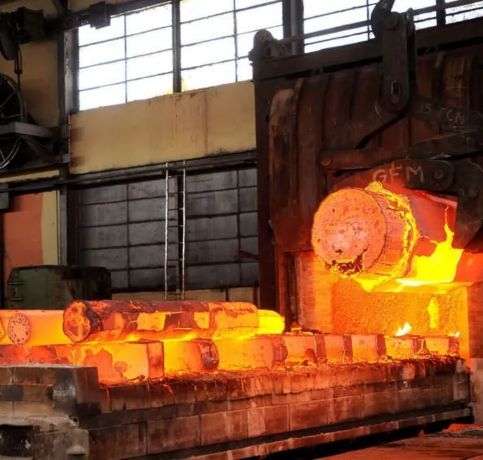

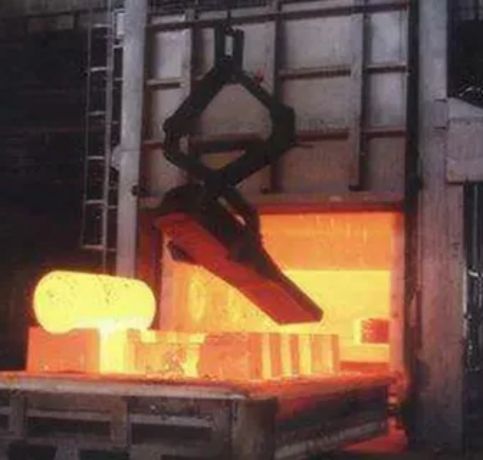

| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 |
After forging Nickel Alloy 200, controlled cooling methods such as air cooling or furnace cooling are typically used to avoid rapid temperature changes and prevent distortion. Gradual cooling helps maintain the material's mechanical properties and prevent cracking.
Post-forging operations for Nickel Alloy 200 include annealing to relieve internal stresses and improve ductility, followed by machining or surface finishing to achieve precise dimensions and surface quality. These processes ensure the alloy's optimal performance and structural integrity.
The ideal temperature range for forging Nickel Alloy 200 is between 1,900°F (1,038°C) and 2,100°F (1,149°C). This range ensures proper malleability and helps achieve the desired mechanical properties during the forging process.
Nickel Alloy 200 Forgings find their place in applications where high corrosion resistance, thermal conductivity, and structural reliability are crucial. Common uses include components for pumps and valves, caustic evaporators, anodes, heat exchangers, marine hardware, and food processing equipment. Its non-magnetic properties and excellent fabricability make it a great choice for electronics and aerospace components. Whether in chemical plants or marine systems, Nickel Alloy 200 forgings consistently deliver reliable performance and longevity, even in challenging service conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
