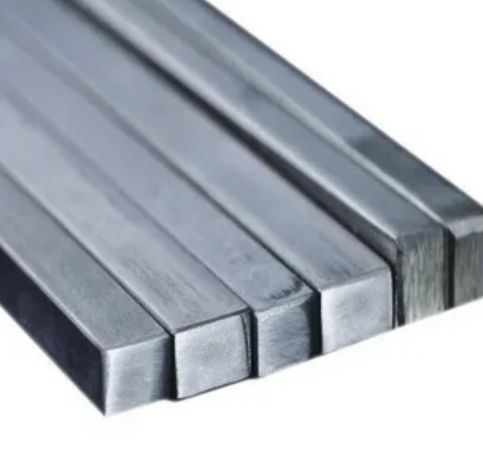

Chuck Metals stands out as a trusted manufacturer and supplier of top-notch Stainless Steel 440C Square Bars and Rods in Singapore, Pulau Ujong. Renowned for its impressive hardness, outstanding wear resistance, and remarkable mechanical strength, Stainless Steel 440C is a high-carbon martensitic stainless steel that shines in demanding industrial settings. At Chuck Metals, we craft 440C square bars with meticulous attention to detail, ensuring precise dimensions, a smooth surface finish, and reliable metallurgical properties. These bars are built to excel under high-load and abrasive conditions, making them perfect for critical components in aerospace, tooling, surgical, and mechanical systems. Plus, their square shape boosts stability and machining efficiency for structural applications.
Stainless Steel 440C (UNS S44004) generally comprises 16–18% Chromium and 0.95–1.20% Carbon, along with small amounts of Manganese, Silicon, Molybdenum, and Phosphorus. This martensitic stainless steel can reach hardness levels of 58–60 HRC after heat treatment. It boasts a tensile strength of 760–1030 MPa and a yield strength of around 450 MPa. While 440C offers excellent hardness, wear resistance, and dimensional stability, its corrosion resistance is a bit lower compared to austenitic grades. The square bar shape simplifies machining and alignment in mechanical assemblies, especially where load-bearing and precision are crucial.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 440C | 1.20-0.95 | 18.00-16.00 | 1.00 | 1.00 | 0.04 | 0.03-0.15 | 1.00 |
| Element | Tensile Strength | Yield Strength | Elongation | Hardness |
| SS 440C | 1965 | 1896 | 2 | 57 |
| STANDARD | WERKSTOFF NR. | UNS | JIS |
| SS 440C | 1.4125 | S44004 | SUS 440C |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 440C Square Bars and Rods are applied in a lot of industries which require high strength, wear resistance, and corrosion resistance. Their applications are generally in bearings, valve components, pump shafts, and tooling because they have excellent hardness and resistance to corrosion and oxidation. They are also used in the manufacture of surgical instruments, knives, and cutlery. Their resistance to high temperatures makes them versatile for use in extreme conditions such as chemical processing and marine applications. They are further used in aerospace, automotive, and industrial machinery components for high-performance duration.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
