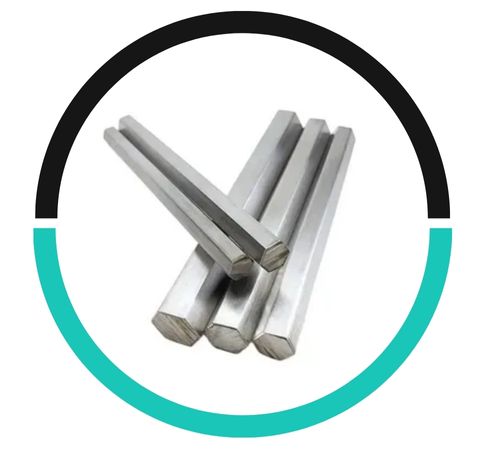

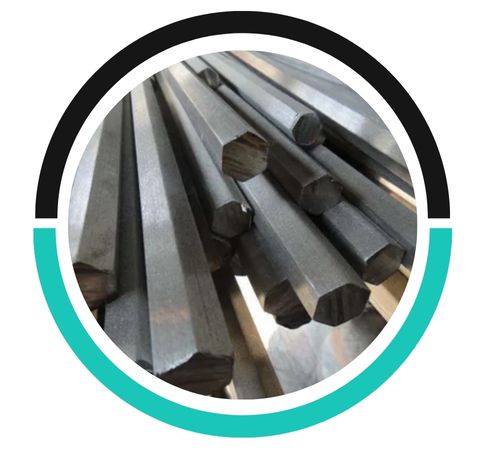

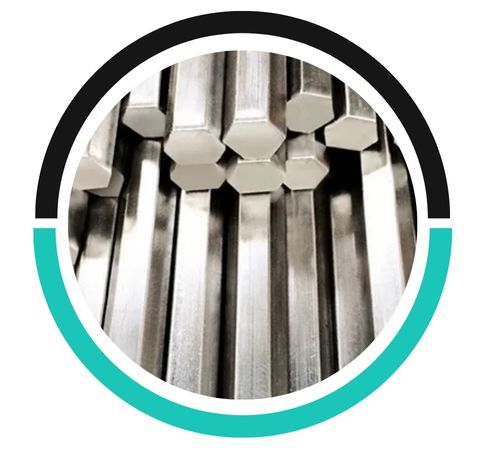

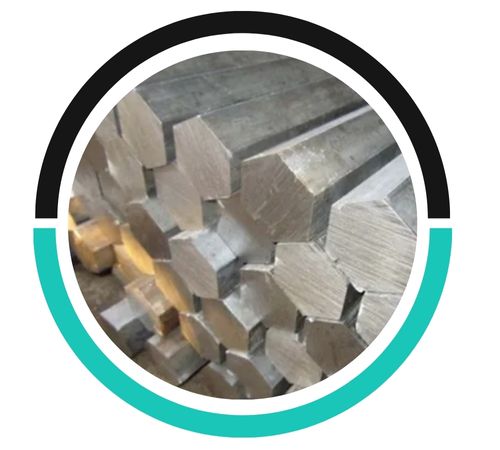

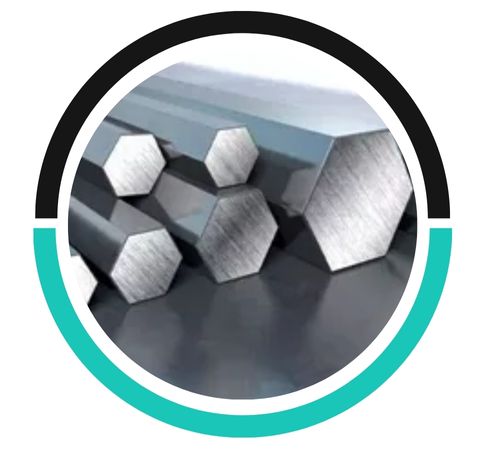

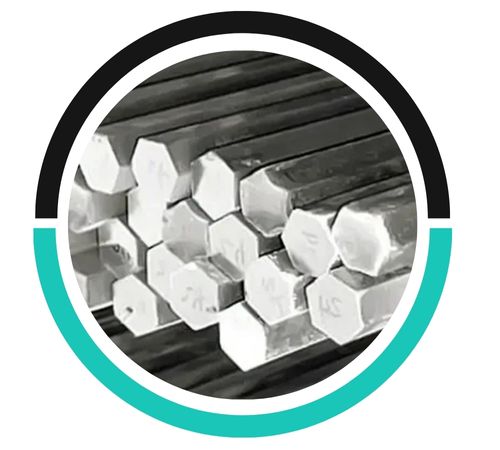

Chuck Metals has made a name for itself as a top-notch manufacturer and supplier of high-quality Stainless Steel 430 Hex Bars right here in Singapore, Pulau Ujong. Catering to various industries like construction, kitchenware, automotive, and architectural fabrication, Chuck Metals delivers dependable and budget-friendly stainless steel solutions. Stainless Steel 430 is a ferritic grade celebrated for its solid corrosion resistance, impressive formability, and sleek finish. At Chuck Metals, 430 hex bars are crafted to exact specifications under strict quality controls, ensuring they perform exceptionally well in both decorative and structural applications. These hexagonal bars are perfect for settings where moderate corrosion resistance and mechanical strength are essential, without the need for heat treatment.
Stainless Steel 430 (UNS S43000) is a straight chromium ferritic stainless steel that contains about 16–18% Chromium and a low Carbon content (≤0.12%). It boasts good corrosion resistance in mildly corrosive environments, especially against organic acids and nitric acid. Its mechanical properties include a tensile strength ranging from 450–600 MPa, a yield strength of around 205 MPa, and a hardness of up to 183 HB. This material is magnetic, cannot be hardened through heat treatment, and offers excellent oxidation resistance. With good ductility and formability, 430 is a favored choice for machining and fabrication where high-strength and costly alloys aren’t necessary.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 430 | 0.12 | 18.0 | 1.25 | – | 0.06 | 0.15 | 1.00 |
| Element | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness (Brinell (HB) max) |
| SS 430 | 552 | 379 | 25 | 262 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
SS 430 Hex Bars are widely utilized across various industries due to their corrosion resistance and mechanical properties. In the automotive sector, they are used for trims and exhaust systems. Household applications include interiors of dishwashers, dryers, and other appliances. Architectural components such as decorative trims and structural elements benefit from their aesthetic and durable nature. SS 430 Hex Bars are also ideal for catering equipment, fuel burner parts, and indoor installations. Their adaptability to cold working processes makes them suitable for diverse forming and fabrication techniques.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
