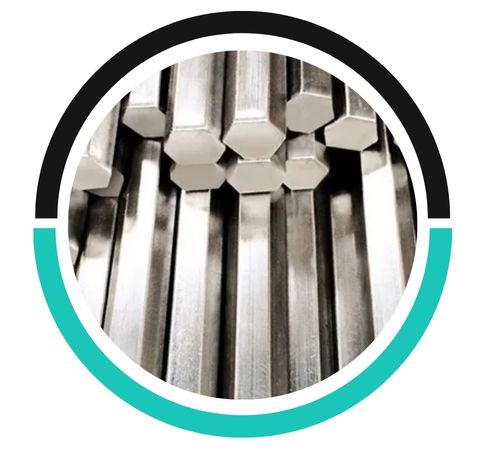

Chuck Metals is a renowned manufacturer, exporter, and retailer of premium-quality ASME SA276 Stainless Steel 904L Hex Bars. These ASTM A276 SS 904L Hex Bars are crafted from top-grade alloys, offering exceptional strength, corrosion resistance, machinability, and welding capabilities due to their austenitic structure. To meet diverse customer requirements, we provide these bars in various specifications, including height, outer diameter, wall thickness, and lengths. Our products are fully compliant with industry standards such as ASME, EN, JIS, ASTM, and others, ensuring consistent quality and reliability.
Stainless Steel 904L (SS 904L) Hex Bars are composed primarily of iron, chromium (19-23%), nickel (23-28%), and molybdenum (4-5%), with small amounts of copper (1-2%) and manganese, silicon, and nitrogen. This composition provides excellent corrosion resistance, particularly in acidic environments. The mechanical properties of SS 904L Hex Bars include a tensile strength of approximately 520 MPa, yield strength of 240 MPa, and elongation of around 35%. It offers good weldability, formability, and machinability, making it suitable for various industrial applications where strength and corrosion resistance are essential.
| Specifications | ASTM B649 / ASME SB 649 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Stainless Steel Round Bar | Outside Diameter in the range of 4mm to 500mm |
| Stainless Steel Bright Bar | Outside Diameter in the range of 4mm to 100mm |
| Stainless Steel Hex Bar | 18mm – 57mm (11/16″ to 2-3/4″) |
| Stainless Steel Square Bar | 18mm – 47mm (11/16″ to 1-3/4″) |
| Stainless Steel Flat Bar | 1/2″ to 10″ in thickness range of 2 mm to 150mm, Custom Size Stainless Steel Flats available |
| Range | 3.17 MM TO 350 MM DIA |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Finishing | Bright, Polish & Black |
| Form of | Hex, Wire (Coil Form), Wiremesh, Billet, Ingot, Forging Etc., |
| Other Services | Machining (CNC), Centreless Grinding (CG), Heat Treatment, Annealing, Pickling, Polish, Rolling, Forging, Cutting, Bending, Minor Fabrication, |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu | |
| SS 904L | Min | – | – | – | – | – | 19 | 4 | 23 | 1 |
| Max | 0.02 | 2 | 1 | 0.045 | 0.035 | 23 | 5 | 28 | 2 |
| Grade | Tensile strength (MPa) | Yield Strength 0.2% Proof(MPa) | Elongation (% in 50mm) | Hardness – Brinell |
| 904L | 490 | 220 | 36 | 70-150 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
SS 904L Hex Bars are widely used in applications requiring high corrosion resistance and strength. Typical applications include solvents, heat exchangers, and equipment used in acidic environments such as sulfuric acid prevention. It is also used in medicine, food processing, marine and power generation. In addition, SS 904L Hex Bars are used in the manufacture of fouling controls, desalination devices, and valves, pumps and pressure vessels Their excellent resistance to chloride-induced hot pressure cracking makes it ideal for tight spaces.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
