Chuck Metals, based in Pulau Ujong, Singapore, stands out as a top manufacturer and supplier of stainless steel products that resist corrosion, including their renowned Stainless Steel 316L Hex Bars and Rods. With a reputation for precision and reliability, Chuck Metals caters to various industries like marine, pharmaceutical, chemical, and food processing. Their 316L hex bars and rods are crafted to meet international standards, ensuring excellent weldability and strength for critical applications. With a strong presence in the region and a commitment to customer satisfaction, Chuck Metals has become a trusted partner for stainless steel solutions across Singapore and Southeast Asia.

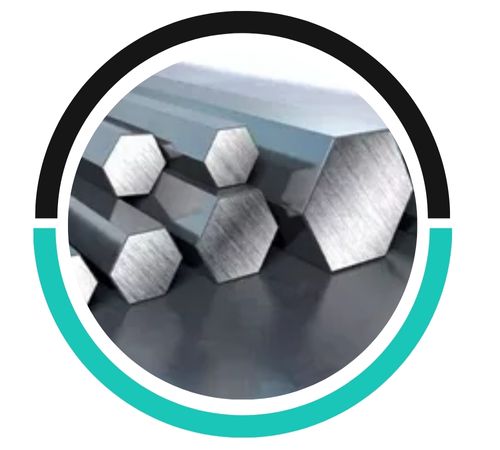

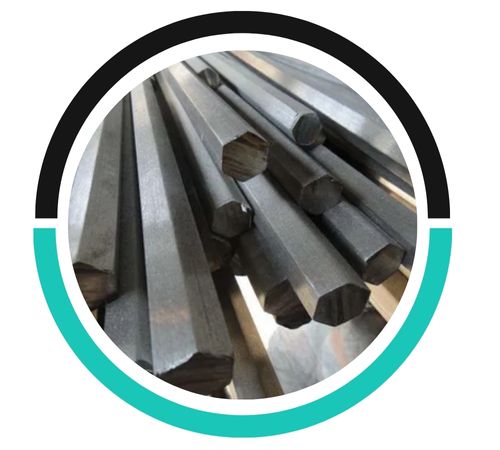

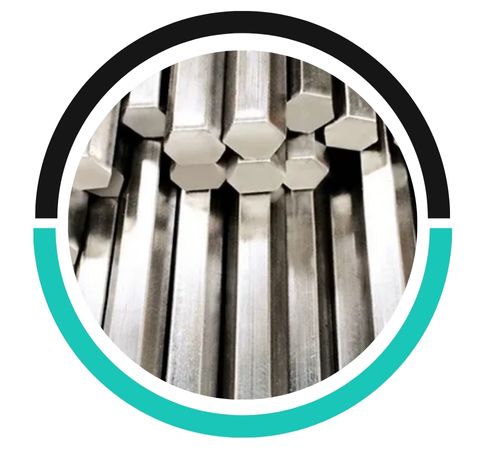

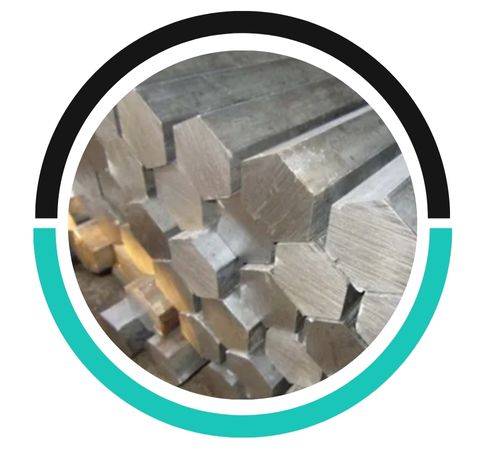

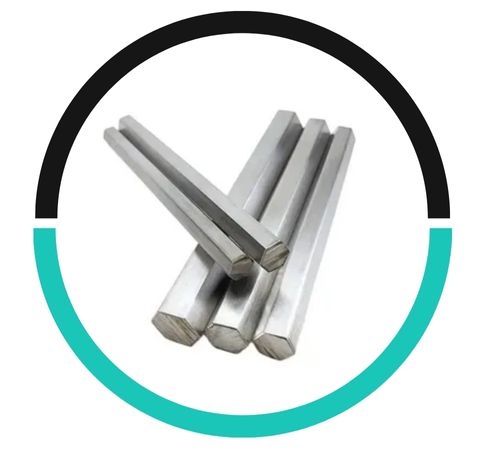

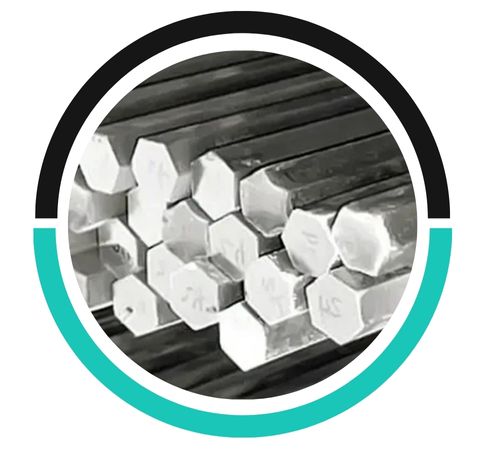

Stainless Steel 316L Hex Bar/Rod is a low-carbon variant of 316 stainless steel, made up of chromium (16–18%), nickel (10–14%), molybdenum (2–3%), and a carbon content that doesn’t exceed 0.03%. This lower carbon content boosts resistance to intergranular corrosion after welding. The alloy boasts impressive mechanical properties, including a tensile strength of about 70 ksi (485 MPa), a yield strength of around 25 ksi (170 MPa), and an elongation of nearly 40%. With outstanding corrosion resistance in both marine and chemical environments, 316L remains stable at high and low temperatures while also offering excellent formability and machinability.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 316l | 0.08 | 18.0 | 2.00 | 14.0 | 0.045 max | 3.00 max | 0.10 max |
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 316l | 0.08 | 18.0 | 2.00 | 14.0 | 0.045 max | 3.00 max | 0.10 max |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
SS 316L Hex Bars/Rods offer exceptional resistance to corrosion, including pitting and crevice corrosion caused by chlorides, due to their chromium and molybdenum content. Their low carbon levels prevent sensitization, ensuring durability in marine and chemical environments.
SS 316L Hex Bars/Rods are used in marine, chemical processing, food, pharmaceutical, and oil and gas industries. Their superior corrosion resistance enhances longevity and performance, particularly in environments exposed to chlorides, acids, alkalis, and high-moisture conditions.
Yes, SS 316L Hex Bars/Rods are easily welded and machined due to their low carbon content. However, precautions include using appropriate tools to avoid work hardening, maintaining low heat input during welding, and employing post-weld cleaning to prevent contamination.
Stainless steel 316L hex bars/rods are widely used in various industries due to excellent corrosion resistance, strength and versatility They are commonly used in marine environments for shafts, fasteners and other components, because it resists corrosion by chloride. Used for equipment exposed to strong acids and bases in the chemical industry. The clean and corrosion-resistant properties of these fibers also find applications in the food and beverage industry. In addition, SS 316L Hex Bars are a staple in the chemical, oil and gas industry for structural precision parts.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
