Aluminium 1050 Forgings

Chuck Metals is your go-to manufacturer and supplier of Aluminium 1050 Forgings right here in Singapore, Pulau Ujong. They specialize in delivering high-purity aluminum products that are perfect for applications requiring top-notch electrical and thermal conductivity. Aluminium 1050 is a commercially pure aluminum alloy, boasting a minimum of 99.5% aluminum, and is celebrated for its remarkable corrosion resistance, impressive ductility, and excellent reflectivity. Chuck Metals provides precision-forged Aluminium 1050 components that come with a superior surface finish and precise dimensional accuracy, making them ideal for use in the electrical, chemical, and architectural sectors. With a strong commitment to quality, quick turnaround times, and dedicated technical support, Chuck Metals has earned a reputation as a trusted name for high-performance Aluminium 1050 forgings in demanding applications.

Aluminum 1050 Press Forging Manufacturer in Sengkang, Aluminium 1050 Compression Forging Singapore, Aluminium Alloy 1050 Impression Die Forging Size Chart, Aluminum Alloy UNS A91050 Upset Forging Dealer in Singapore, Al 1050 Open Die Forging Price in Clementi, Stockist of Aluminum 1050 in Singapore, DIN 3.0255 Aluminium Alloy Closed Die Forging Price List in Singapore, Aluminum Alloy UNS A91050 Open Die Forging Weight Chart, Aluminium 1050 Closed Die Forging Exporter in Sengkang, Al 1050 DIN 3.0255 Closed Die Hammer Forging Supplier in Singapore

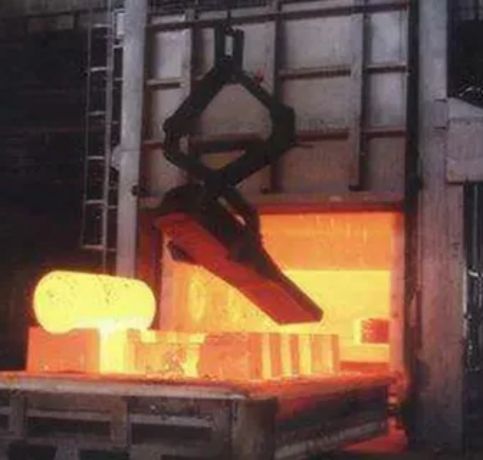

Aluminium 1050 Rolled Forging

Aluminium 1050 Hot Forging

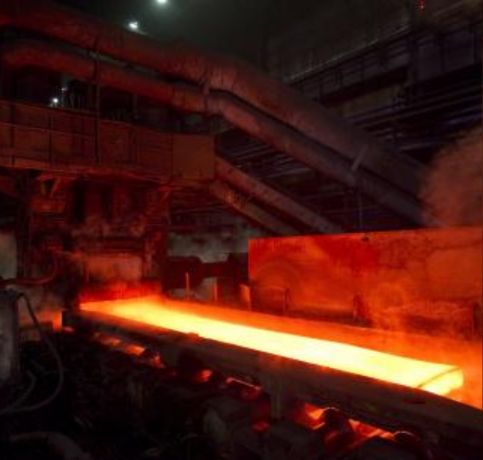

Aluminium 1050 Cold Forging

What is Aluminium 1050 Forgings?

Aluminium 1050 Forgings consist of at least 99.5% pure aluminum, with only minimal additions of iron, silicon, and other elements. This alloy is known for its excellent formability, high electrical conductivity (around 60% IACS), and thermal conductivity, along with outstanding resistance to atmospheric corrosion. While it has relatively low mechanical strength—typically around 60–100 MPa in tensile strength—it responds well to cold working, making it a great choice for applications where corrosion resistance and conductivity are key, rather than strength.

Aluminium 1050 Open Die Hammer Forging Stockist in Singapore, Aluminum 1050 Impression Die Forging Distributor in Clementi, Aluminium 1050 Cold Forging Stockist Queenstown, 1050 Aluminium Alloy Open Die Forging Exporter in Singapore, Aluminum Alloy DIN 3.0255 Compression Forging Price in Queenstown, DIN 3.0255 Al Upset Forging Dimensions Singapore, Aluminium 1050 Forgings Supplier in Clementi, Al 1050 Open Die Hammer Forging Supplier in Singapore, UNS A91050 Aluminium Alloy Press Forgings in Sengkang

Aluminium 1050 Forgings Specifications

Temper : H14

Specification : DIN, ASTM, BS and all International Standards

Flat bar blocks : up to 27″ width and 15,000 lbs.

Cylinders and sleeves : up to 50″ maximum O.D. and 65″ maximum length

Discs and hubs : up to 50″ diameter and 20,000 lbs.

Rolled, hand forged or mandrel forged rings : up to 84″ maximum O.D. and 40″ maximum length

Rounds, shafts and step shafts : up to 144″ maximum length and 20,000 lbs.

Aluminium 1050 Forgings Chemical Compositions

Alloy (ISS)		Equivalent alloy (A.A)	Copper		Magnesium		Silicon		Iron		*Managanese Others (Total)**			Remarks
Old	New	U.S.A	Min.	Max.	Min.	Max.	Min.	Max.	Min.	Max.	Max		Max.		Aluminum 99.0% Min.
1 B	19500	1050	—	0.05	—	—	—	0.30	0.4	—	0.05	0.1			Aluminum 99.5% Min.

You Need Our Support, to Have Any Projects?

Test Certificate

Why Chuck Metals?

Packaging

Aluminium 1050 Forgings Mechanical Properties

Alloy	Temper	UTS (Mpa)		Yield Strength (Mpa)		Elongation (%)
		Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-1050 A	F	60	–	20	–	23
EN AW-1050 A	O	60	95	20	–	23

Aluminium 1050 Equivalent Grades

European Standard	BS (OLD)	USA (AA)	GERMANY (DIN)	ISO	IS	Canadian
EN AW-1050 A	1E	1050	Al99.5	Al99.5	19500, 19501	1 S

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Aluminium 1050 Forgings Types

Aluminium Alloy 1050 Hot Forging Exporter in Singapore, Aluminium 1050 Forgings Manufacturer in Queenstown, Aluminium Alloy 1050 Forgings Industrial Forgings Distributor Exporter in Singapore, Aluminum Alloy 1050 Seamless Rolled Forging Supplier in Singapore, Al 1050 Forgings Cold Forging Size Chart in Singapore, Aluminium DIN 3.0255 Compression Forging Size Chart in Clementi, UNS A91050 Aluminium Open Die Forging Stockist in Singapore, ASTM B221 Al Forging Price List Sengkang, Aluminum 1050 Press Forging Supplier in Singapore

Frequently Asked Questions (FAQ)

Can Aluminium 1050 Forgings Be Forged Into Custom Shapes?

Yes, Aluminum 1050 forgings can be shaped into custom designs through processes like open-die and closed-die forging, allowing for precise, unique shapes tailored to specific applications.

What Temperature Range is Ideal For forging Aluminium 1050 Forgings?

The ideal temperature range for forging Aluminium 1050 forgings is between 350°C to 500°C (660°F to 930°F), ensuring optimal material flow and minimizing the risk of cracking or deformation.

How Long Does The Forging Process Take For Aluminium 1050 Forgings?

The forging process for Aluminium 1050 typically takes between 30 minutes to 2 hours, depending on the complexity and size of the part, along with the required heat treatment and finishing steps.

Aluminium 1050 Forgings Uses

You’ll find Aluminium 1050 Forgings in a variety of applications that demand high thermal and electrical conductivity, such as electrical busbars, transformer components, heat exchangers, light reflectors, and chemical equipment. Thanks to its excellent corrosion resistance and smooth surface finish, it’s also a popular choice for architectural panels, signage, and decorative elements. In industries like electronics, power distribution, and chemical processing, Aluminium 1050 forgings deliver reliable performance, ease of fabrication, and a long service life, especially in non-load-bearing and corrosion-sensitive environments.

Our Products

Other Products

Other Material

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
